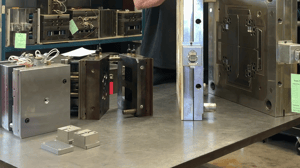

Copy of Tool Comparison - Full frame, MUD and UMB
Apollo Optical SystemsSeptember 24, 20254 min read

How to Choose the Right Mold Tool for Your Polymer Optics Project

The right mold tool is a strategic decision in a polymer optics project

In polymer optics manufacturing, the mold tool is the foundation of every component. It determines how quickly parts can be made, how complex the geometry can be, how consistent the quality will remain over time, and ultimately, how cost-effective the entire program becomes.

Choosing the right mold tool is a strategic decision that can influence the success of your product. In this article, we’ll explore the three main mold tool options — full-frame, MUD, and UMB — along with how to evaluate them for your specific needs. We’ll also compare them with an alternative fabrication method: single-point diamond turning (SPDT).

Why Tooling Matters in Polymer Optics

Unlike general plastic parts, polymer optics require extremely tight tolerances, flawless surfaces, and consistent replication across every unit. Even small variations in the tool can lead to optical defects. The right tool choice can:

Reduce initial development costs
Accelerate prototyping cycles
Support scalability for commercial launch
Ensure long-term durability and repeatability

The Three Types of Mold Tools



1. Full-Frame Steel Tool

A full-frame tool is a dedicated mold designed specifically for your project. Built in hardened steel, it includes both the base and cavity as a custom solution.

When to Choose:

  • Large production volumes.
  • Complex part geometries with lifters, slides, or optical features.
  • Programs where consistency over years is critical.

Advantages:

  • Durability: steel withstands high shot counts.
  • Flexibility: supports advanced mold actions.
  • Precision: ensures repeatable quality.

Considerations:

  • Higher upfront investment.
  • Longer lead time to build
2. Master Unit Die (MUD) Tool

The MUD system uses a standard mold base that can be reused across multiple projects. Only the cavity and inserts are customized.

When to Choose:

  • Early design validation.
  • Prototyping optical parts before committing to full production.
  • Short production runs.

Advantages:

  • Lower cost to get started.
  • Faster turnaround compared to full-frame.
  • Easier transition to higher volume if needed.

Considerations:

  • Limited complexity relative to full-frame.
  • Shorter tool life.
3. Universal Mold Base (UMB)

The UMB approach uses a universal base into which interchangeable cavity inserts are placed. This makes it highly cost-effective for low-volume jobs.

When to Choose:

  • Multiple iterations are expected during R&D.

  • Limited production quantities.

  • Projects where speed matters more than lifetime.

Advantages:

  • Minimal upfront cost.

  • Flexibility to swap inserts easily.

  • Excellent for proof-of-concept work.

Considerations:

  • Not designed for high-volume production.

  • May require eventual migration to MUD or full-frame.

Decision-Making Criteria

Volume Requirements

Ask: How many parts do I need — and over what time frame?

  • <1,000 parts: UMB or MUD.
  • 1,000–20,000 parts: MUD can bridge well.
  • 20,000+ parts: Full-frame is the most reliable.

Project Timeline

  • Immediate prototypes: UMB or MUD.
  • Commercial launch in 12–18 months: Consider MUD for the early stages, then full-frame.
  • Established product line: Full-frame is the industry standard.

Part Complexity

If the design requires intricate features — such as freeform optics, undercuts, or integrated assemblies — a full-frame mold may be the only viable option.

Budget Strategy

  • Lower initial investment: UMB or MUD.
  • Optimized cost-per-part at scale: Full-frame.

Comparing Mold Tools with Diamond Turning

Single-Point Diamond Turning (SPDT) is another way to create polymer optics, especially during prototyping.

Advantages of SPDT: Limitations of SPDT:
  • Extremely precise surfaces.
  • High per-part cost.
  • Rapid iteration without tooling.
 Not practical for scaling into thousands of units.
  • Useful for unique or one-off optics.
 Surface durability may not match molded parts.

In practice, many customers begin with diamond-turned optics to validate a design, then transition to injection molding with the appropriate tool once they’re ready for production.

A Decision Tree for Choosing Your Tool

Do you need fewer than 500 parts?

→ UMB.

Do you need prototypes now, but plan to scale within 12 months?

→ MUD, then migrate to full-frame.

Do you expect tens of thousands of parts over years?

→ Full-frame steel tool.

Do you need a single, highly precise prototype?

→ Consider SPDT.





When it comes to molding polymer optics, your tool choice shapes the success of the entire program.

Choosing the right mold tool is about balancing cost, speed, and scalability. Full-frame tools offer unmatched longevity, while MUD and UMB systems provide flexibility and lower entry costs. Diamond turning can fill unique needs at the earliest stages.

At Apollo Optical Systems, we don’t just build tools — we partner with you through the entire lifecycle, from design validation to full-scale production.

🎥 To see these tools in action, watch our video with Apollo Master Toolmaker Greg Schoen: YouTube Link.
