Expert Coating Techniques for Single Point Diamond Turned Optics

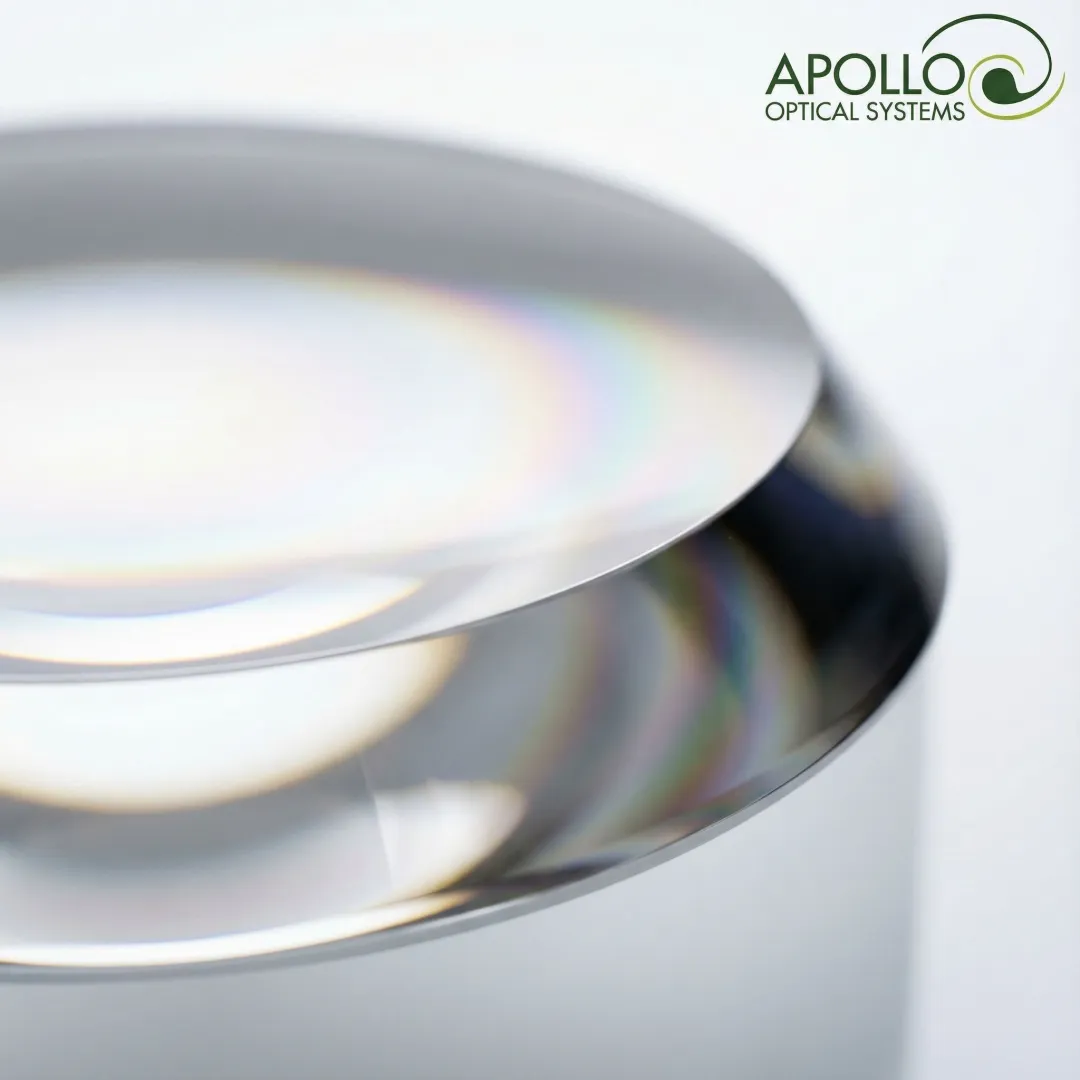

Single Point Diamond Turned (SPDT) optics are optical components fabricated using ultra-precision machining rather than grinding and polishing. They are commonly produced from aluminum and aluminum alloys, copper and copper alloys, electroless nickel–plated substrates, and some polymers. SPDT enables complex freeform geometries, fast prototyping, and high precision in form. But it also produces distinct surface characteristics that directly affect coating behavior. We offer a wide range of coating materials including gold, silver, aluminum, magnesium fluoride, and specialized dielectric materials, all optimized for diamond turned surface compatibility.

Coating SPDT optics is not the same as coating polished glass. Key differences include characteristic turning marks and surface lay, higher surface roughness at specific spatial frequencies, anisotropic surface features, and substrate materials with high thermal expansion. These factors influence coating adhesion, scatter and stray light, stress development, and long-term durability. Ignoring these effects is a common cause of coated SPDT optic failure. Our coating processes are specifically designed to maintain the exceptional surface quality and dimensional precision achieved through single point diamond turning.

We provide coating solutions across UV, visible, and NIR wavelength ranges, with custom optimization available for specific spectral requirements. Diamond-turned surfaces often exhibit periodic tool marks, mid-spatial frequency errors, and directional texture. When coated, these features can amplify scatter, print through thin films, and reduce effective reflectivity or transmission. Coating design must account for actual surface finish, not nominal Ra values alone.

Yes, we have expertise coating diamond turned components made from various materials including polymers, nickel, brass, copper, and aluminum. SPDT optics are often fabricated from materials that behave very differently from glass, including aluminum, nickel-phosphorus coatings, and copper. These substrates introduce challenges related to thermal expansion mismatch, coating stress, and adhesion reliability. Coating stacks must be selected and tuned for substrate compatibility, not just optical performance.

Our coating processes maintain the exceptional surface finishes achievable through diamond turning while adding the desired optical properties. SPDT optics may receive coatings such as reflective metal coatings (e.g., aluminum, gold), infrared reflective coatings, protective overcoats, and functional thin films for durability. Each coating type interacts differently with surface roughness, substrate material, and environmental exposure. A coating that performs well on polished glass may behave very differently on a diamond-turned surface.

Yes, we specialize in AR coatings for polymer optics, which require different coating techniques than glass due to temperature limitations. Thermal cycling is a major risk factor for coated SPDT optics. Differences in thermal expansion between substrate, coating layers, and adhesion layers can lead to micro-cracking, delamination, and performance drift over time. Stress management is often more critical than optical optimization.

We use advanced metrology equipment including interferometers and profilometers to verify coating uniformity and optical performance on diamond turned surfaces. Even when form accuracy is high, coated SPDT optics may exhibit increased scatter, directional stray light, and reduced contrast. These effects may be acceptable — or unacceptable — depending on the system. SPDT optics are often well suited for infrared systems, illumination optics, and non-imaging or low-contrast applications. They are less suitable for high-contrast visible imaging and applications with tight scatter budgets. Understanding this boundary is essential.

Yes, we support everything from single prototype components to high-volume production runs with consistent quality and performance. Standard coating inspection methods may not be sufficient for SPDT optics. Evaluation often requires scatter measurements, surface profilometry, adhesion testing, and environmental cycling. Visual inspection alone is not a reliable indicator of performance. Validation must reflect actual operating conditions, not idealized lab environments. Successful coated SPDT optics programs align optical design, surface finish expectations, coating stack selection, substrate choice, and operating environment. Late decisions about coating often expose design assumptions that cannot be corrected without rework. Early coordination reduces risk.

Rather than asking 'Can this SPDT optic be coated?', engineers should ask: What surface finish actually exists? How sensitive is the system to scatter? How will thermal cycling affect adhesion? What validation data exists for this substrate/coating combination? Clear answers to these questions prevent expensive failures.

Coating SPDT optics is a system-level engineering problem, not a finishing step. Reliable outcomes come from realistic surface expectations, substrate-appropriate coating stacks, stress-aware design, and validation under real conditions. When those factors are addressed, SPDT optics can perform predictably and reliably.
