Fresnel Lens Sheets for Rear Projection Displays

For medical device engineers, automotive display designers, and defense optics specialists, rear projection systems present a persistent challenge. Traditional refractive lenses add excessive weight, bulk, and cost to your displays.

These constraints limit portability, increase manufacturing expenses, and restrict design flexibility, particularly critical when developing next-generation imaging systems, head-up displays, or mission-critical tactical equipment.

Fresnel lens sheets offer a transformative solution by significantly reducing thickness while maintaining optical performance. As modern photonics demands lighter, more efficient components, understanding how Fresnel technology outperforms conventional optics becomes essential.

This guide explores the engineering principles, comparative advantages, industry applications, and design considerations that make Fresnel lens sheets the optimal choice for advanced rear projection displays.

At a glance:

• Fresnel lens sheets cut thickness and weight, enabling compact designs for portable medical devices, automotive HUDs, and helmet-mounted displays.

• Scalable manufacturing from prototype to mass production, using diamond turning for validation and injection molding for volume.

• Material and coating choices directly impact performance, with acrylic delivering up to 92% transmission, polycarbonate adding impact resistance, and AR coatings boosting efficiency.

• Early design-for-manufacturing collaboration reduces costly rework, optimizing groove geometry, shrinkage compensation, and coating specs before tooling is finalized.

• Apollo Optical Systems offers full vertical integration, covering design, tooling, molding, coating, and assembly for ISO-certified medical, automotive, and defense programs.

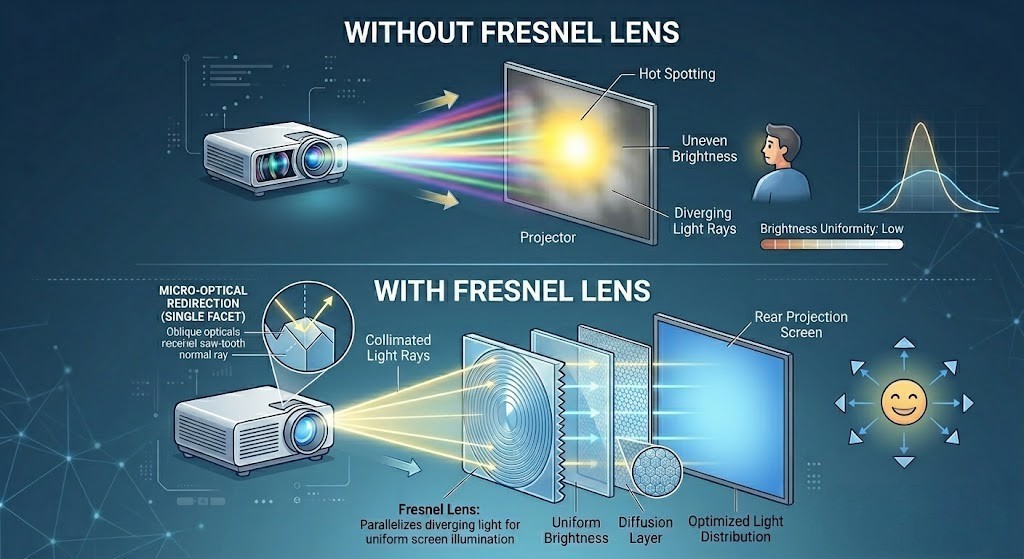

What Are Fresnel Lens Sheets?

Fresnel lens sheets replace the continuous curved surface of conventional lenses with a series of concentric grooves. Each groove functions as an individual prism that redirects light toward the focal point.

Rear projection systems demand specific optical characteristics that Fresnel lens sheets deliver exceptionally well:

• Dramatic space savings: Optical performance achieved in 1-3mm thickness creates new design possibilities.

• Weight reduction: Critical for portable medical devices, automotive HUDs, and helmet-mounted tactical displays where every gram impacts usability.

• Uniform light distribution: Engineered groove profiles ensure consistent screen illumination across the entire display surface without hotspots.

• Large-format capability: Screen sizes where conventional lenses become prohibitively thick remain practical and cost-effective with Fresnel technology.

• Design flexibility: Polymer manufacturing through single-point diamond turning enables rapid prototyping and custom optimization, which is impossible with glass grinding.

Manufacturing precision determines optical performance. Groove pitch accuracy at the micron level directly impacts image quality. Advanced fabrication techniques enable the tolerances required for high-performance rear projection systems across medical imaging, automotive displays, and defense applications.

Technical Advantages of Fresnel Sheets Over Conventional Optics

Engineers selecting optical solutions evaluate specific performance parameters. Fresnel lens sheets deliver measurable advantages:

• Compact form factor: Overall system depth reduced, enabling installation in space-constrained environments.

• Superior light collection efficiency: Optimized groove geometry captures and directs light more effectively than conventional designs.

• Reduced optical path length: Shorter light travel distance minimizes chromatic and spherical aberrations.

• Enhanced viewing angles: Controlled light diffusion through custom groove profiles expands usable viewing cone.

• Cost-effectiveness at scale: Injection molding economics favor Fresnel designs for exceeding production volumes.

These advantages directly address the pain points engineers face when specifying rear projection optics. Weight budgets, packaging constraints, and cost targets that eliminate conventional lens solutions become achievable with Fresnel technology.

While these advantages are compelling, the true value of Fresnel lens sheets becomes clear when directly compared against traditional optical technologies.

Fresnel Lens Sheets vs. Traditional Optical Technologies

Engineering decisions require quantifiable comparisons. This section breaks down the performance, manufacturing, and economic differences between Fresnel lens sheets and conventional refractive optics across parameters that matter most to product development teams.

These advantages show up where they matter most, in real products. Fresnel lens sheets are changing how rear projection systems are built across medical, automotive, defense, and consumer applications by making compact, efficient designs possible.

How Fresnel Lens Sheets in Rear Projection Displays Are Transforming Industries

Fresnel lens technology solves critical optical challenges across diverse industries today. From operating rooms to vehicle cockpits to battlefield environments, these applications demonstrate why design teams choose Fresnel solutions over traditional optics.

Medical Devices & Life Sciences

Healthcare applications demand optical components that prioritize patient safety, sterilization compatibility, and clinical workflow efficiency.

Surgical display systems in modern operating rooms face severe space constraints. Articulating monitor arms supporting heavy conventional optics create positioning difficulties during long procedures.

Fresnel-based rear projection displays deliver:

• Compact optical systems enabling flexible positioning without counterweight requirements

• Significant weight reduction improves articulation ease and reduces mechanical stress on mounting systems

• High brightness requirements are met through efficient light collection with minimal heat generation

• Cleanroom compatibility with appropriate protective coatings

Portable diagnostic equipment represents a rapidly growing market segment. Point-of-care ultrasound, mobile imaging workstations, and field-deployable diagnostic devices require battery operation and single-person portability.

Fresnel lens sheets enable true portability. Portable ultrasound systems achieve professional image quality in battery-powered packages weighing less than 5 pounds. Mobile diagnostic workstations deploy to emergency scenes, rural clinics, and disaster relief operations where conventional equipment cannot function.

Optical imaging systems, including endoscopic displays and surgical microscopy, benefit from polymer optics' unique properties:

• Impact resistance superior to glass protects against accidental drops in clinical environments

• Design flexibility enables custom light distribution matching specific procedural requirements

• Biocompatible coatings ensure patient safety in direct tissue contact applications

• Sterilization compatibility with standard hospital protocols maintains infection control standards

Automotive & Transportation

Automotive applications subject optical components to extreme environmental conditions while demanding absolute reliability over 10-15 year vehicle lifecycles.

Head-up displays (HUDs) project critical driving information onto the windshield or dedicated combiner surface. These systems face intense packaging constraints in modern vehicle dashboards already crowded with safety systems and infotainment components.

Conventional HUD optics require a certain depth behind the dashboard. This space often doesn't exist, particularly in smaller vehicles or electric vehicles, where battery packaging consumes premium real estate.

Fresnel lens sheets solve the packaging challenge:

• Compact optical path reduces system depth, fitting HUDs into previously impossible vehicle platforms

• Reduced weight improves vehicle efficiency, particularly critical in electric vehicles, where every kilogram affects range.

• Wide temperature operation maintains optical performance across global climate zones.

• Vibration resistance through robust polymer construction withstands decades of road conditions.

Electric vehicle adoption accelerates HUD demand. Manufacturers seek every possible weight reduction to extend the range. Replacing conventional HUD optics with Fresnel alternatives saves a great deal, which is meaningful when multiplied across millions of annual production units.

Driver monitoring systems (DMS) and advanced instrument clusters increasingly employ rear projection technology for customizable, high-resolution displays requiring consistent optical performance across automotive temperature extremes and UV resistance, preventing yellowing over vehicle lifetime.

Automotive applications demand rigorous environmental testing and quality control. ISO-certified manufacturing processes as provided by Apollo Optical Systems ensure consistent optical performance across millions of production units, meeting OEM reliability standards that conventional suppliers often struggle to achieve at the required scale.

Defense & Tactical Applications

Military and law enforcement applications prioritize reliability, durability, and operator performance under extreme conditions.

Helmet-mounted displays provide critical tactical information, thermal imaging, or night vision capabilities directly in the operator's field of view. Weight is not a secondary consideration. Every gram added to a helmet creates neck strain during extended operations.

Fresnel optics enable practical helmet-mounted systems:

• Significant weight reduction compared to conventional optics dramatically improves operator comfort

• Compact near-eye displays achieve a wide field of view without bulky optical assemblies

• Impact resistance from polymer construction survives combat conditions that shatter glass optics

• Extreme temperature range from Arctic to desert environments maintains operational readiness

Appropriate protective coatings and material selection ensure Fresnel lens sheets meet MIL-STD environmental and durability testing. Polymer construction provides inherent advantages over glass in shock and impact resistance critical to field operations.

Mission-critical display systems in command centers, tactical vehicles, and field operations require absolute reliability combined with rapid deployment capability. Rear projection systems with Fresnel optics deliver large-format tactical situation displays portable by two-person teams with reduced weight, enabling air transport to forward operating locations.

Biometric identification systems for access control and security screening incorporate compact optical systems for facial recognition and iris scanning. Fresnel lens sheets enable portable field units deployable at checkpoints, border crossings, and temporary security perimeters.

Consumer Electronics & AR/VR

Consumer applications demand optical performance matching professional systems while meeting aggressive cost targets and manufacturing scale measured in millions of units annually.

Near-eye displays for augmented and virtual reality headsets face a fundamental challenge. User comfort during extended wear sessions depends critically on headset weight. Every gram matters when devices remain on heads for hours.

Fresnel optics transform the user experience:

• Lens mass reduction enables all-day comfortable wear

• Compact optical path reduces overall headset size, improving aesthetic appeal

• Custom groove designs optimize the field of view while minimizing optical distortion

• Cost-effective manufacturing supports consumer price points, driving market adoption

Projection systems for gaming, entertainment, and business presentations increasingly employ compact throw distances, enabling large screen sizes from short distances. Fresnel field lenses improve brightness uniformity across the entire screen surface, maintaining consistent brightness from center to corners.

Industrial & Commercial

Professional applications balance performance requirements against the total cost of ownership over multi-year operational lifecycles.

Control room displays for monitoring, surveillance, and process control employ large-format rear projection where screen sizes exceed practical limits for direct-view technologies. Advantages include cost-effectiveness at screen sizes and uniform brightness across the entire display surface, critical for 24/7 monitoring applications.

Simulation and training systems for flight simulators, driver training, and medical procedure education require wide viewing angles for realistic immersive environments. Fresnel optics provide customized light distribution patterns impossible with conventional lenses, enhancing training effectiveness and reducing simulator sickness in motion-based systems.

However, successfully implementing Fresnel lens sheets in these diverse applications requires careful attention to design parameters and manufacturing considerations from project inception.

Design Considerations for Fresnel Lens Sheets in Rear Projection

Transitioning from concept to production-ready Fresnel optics requires balancing optical performance, manufacturing feasibility, and cost targets. These design considerations determine whether your rear projection system delivers the required specifications while maintaining commercial viability.

Optical Design Factors

Groove geometry directly determines optical performance and manufacturing complexity. Engineers must optimize multiple interrelated parameters.

Groove pitch (spacing between grooves) creates fundamental tradeoffs:

• Finer pitch (100-200 grooves/inch): Reduces visible groove structure but demands higher manufacturing precision and increases tooling cost

• Coarser pitch (50-100 grooves/inch): Simplifies manufacturing and reduces cost, but may create visible grooves under certain viewing conditions

• Application-specific optimization: Medical imaging requires a finer pitch than industrial displays, where viewing distance increases

Profile angle optimization matches light source characteristics. For example, LED sources with 120-degree emission patterns require different groove angles than collimated laser sources. Mismatched profiles create efficiency losses, wasting light and requiring brighter sources.

Performance specifications define success criteria, including screen gain requirements, viewing angle targets, focal length, and transmission efficiency. Typically, 85%-90% transmission is achievable, improving to >99.8% with anti-reflective coatings.

Material Selection

Polymer selection impacts optical performance, environmental durability, and manufacturing characteristics simultaneously.

• Acrylic (PMMA) offers excellent optical clarity with 92% transmission and superior UV resistance. This cost-effective option works well for most indoor and automotive applications.

• Polycarbonate (PC) provides superior impact resistance critical for tactical and automotive applications. A wider temperature range from -20°C to +140°C justifies a higher material cost in demanding environments.

• Environmental durability requirements vary dramatically across applications. Temperature cycling affects optical alignment. UV exposure demands stabilized materials that prevent yellowing. Chemical resistance ensures medical disinfectants and automotive fluids don't degrade optical surfaces.

Material selection impacts more than optical performance. Processing characteristics, including mold flow behavior and shrinkage rates, directly affect manufacturing yield. Collaborating with experienced polymer optics manufacturers like Apollo Optical System during material selection prevents costly redesigns when prototypes transition to production.

Partnering for Success: Choosing the Right Optical Manufacturing Partner

Successful Fresnel lens projects require more than a strong optical design. They demand a manufacturing partner that reduces risk at every stage. The right partner offers fully integrated capabilities from design and prototyping to tooling, coating, and assembly, backed by proven experience in regulated industries

Based in Rochester, New York's renowned optics cluster, Apollo Optical Systems provides integrated capabilities serving medical device manufacturers, automotive suppliers, and defense contractors:

Our comprehensive services:

• In-house optical design: Collaborative engineering optimizes your specifications for manufacturability and performance

• Rapid prototyping: Single-point diamond turning delivers validation parts in days, enabling quick iteration

• Production scaling: Precision injection molding from thousands to millions of parts with consistent quality

• Coating services: Evaporative deposition applies AR, protective, and metallic coatings, enhancing performance

• Optical assembly: Complete system integration and sub-assembly services reduce your supply chain complexity

• Quality assurance: ISO-certified processes with comprehensive metrology and testing ensure specification compliance

Why engineers choose Apollo:

• 30+ years of polymer optics heritage from the University of Rochester Institute of Optics research foundations

• Rochester optical ecosystem access, connecting you to complementary technologies and expertise

• Design-to-manufacturing integration prevents costly tool modifications and production delays

• Application experience across medical imaging, automotive LIDAR, tactical displays, and AR/VR systems

Ready to Optimize Your Rear Projection Display? Stop compromising on weight, size, or cost. Fresnel lens technology delivers the performance your application demands. Schedule a design consultation with Apollo's engineering team.

FAQs

How do I determine the optimal groove pitch for my Fresnel lens?

Groove pitch depends on viewing distance. For close viewing (<12 in), use 150–200 grooves/inch to avoid visible artifacts. For distances beyond 24 in, 75–100 grooves/inch is sufficient and more cost-efficient. A quick rule: viewing distance (in inches) ÷ 6 = minimum grooves per inch. Anti-reflective coatings further reduce visible groove structure.

Can Fresnel lens sheets meet automotive environmental requirements?

Yes. Automotive-grade acrylic or polycarbonate withstands –40°C to +85°C, UV exposure, humidity, and vibration when properly designed. Key requirements include thermal expansion control, hard coatings, and moisture resistance. Qualified parts meet OEM standards such as thermal shock, humidity aging, and salt spray testing.

How do anti-reflective coatings impact performance and durability?

AR coatings reduce surface reflection, improving optical efficiency. Standard coatings suit controlled environments, while enhanced coatings add abrasion, chemical, and thermal resistance. Added cost is typically $0.50–$3.00 per part and is justified by improved brightness and lifespan.

How do diamond-turned and injection-molded Fresnel lenses compare optically?

Injection-molded lenses can match diamond-turned optics within 0.5% of optical performance when properly tooled. Molding requires shrinkage compensation and process control, but delivers superior repeatability at scale. Diamond turning offers sharper edges for prototypes, while molding provides consistent quality for high-volume production.
