NASA's Systems Engineering Handbook puts it plainly: the cost to change a design increases the later you are in the life cycle. In optics, that curve gets steeper. Tight tolerances and specialized processes like diamond turning and polymer molding amplify what a "small" late-stage change actually costs.
A DFM review exists to catch these problems before they become expensive. It's a structured evaluation of a design's manufacturability, done before drawings are finalized or tooling is ordered.
This guide covers what a DFM review actually is, the process behind it, a practical checklist, guidelines by manufacturing method, and why partnering with a manufacturer that handles the full production pathway changes how early and how accurately that review can happen.
Key Takeaways
- DFM reviews vet geometry, tolerances, materials, and assembly against real manufacturing limits before production
- Early reviews reduce redesigns, tooling costs, and time-to-market delays
- DFM, DFA, and DFMEA target different risks: manufacturability, assembly ease, and failure modes
- Injection molding, diamond turning, and CNC machining each demand different DFM rules
- In-house multi-process manufacturers deliver earlier, more accurate DFM reviews
What Is a DFM Review?
A DFM review is a formal or informal evaluation of whether a design can actually be manufactured, run before drawings are finalized and tooling is committed. Modus Advanced describes it as a collaborative engineering assessment of whether a design can be manufactured efficiently while meeting functional and quality requirements.
The review checks:
- Geometry: can the feature actually be molded, machined, or turned?
- Tolerances: which dimensions are functionally critical, and which aren't?
- Material choice: does it fit the process, cost target, and performance need?
- Tooling and mold access: can inserts, gates, and ejectors reach where they need to?
- Cost drivers: what adds cycle time or scrap risk without adding value?
DFM as a discipline is broader than a DFM review. DFM is the ongoing practice of designing with manufacturability in mind; a DFM review is the gate where that design is tested against real production constraints before it moves forward.
Why This Matters More in Precision Optics
Standard mechanical parts can often tolerate some slack. Optical components can't. G&H notes that optical DFM carries added weight because optical components frequently combine tight tolerances with complex geometries. A surface that's slightly out of form doesn't just look wrong. It changes how light behaves through the part.

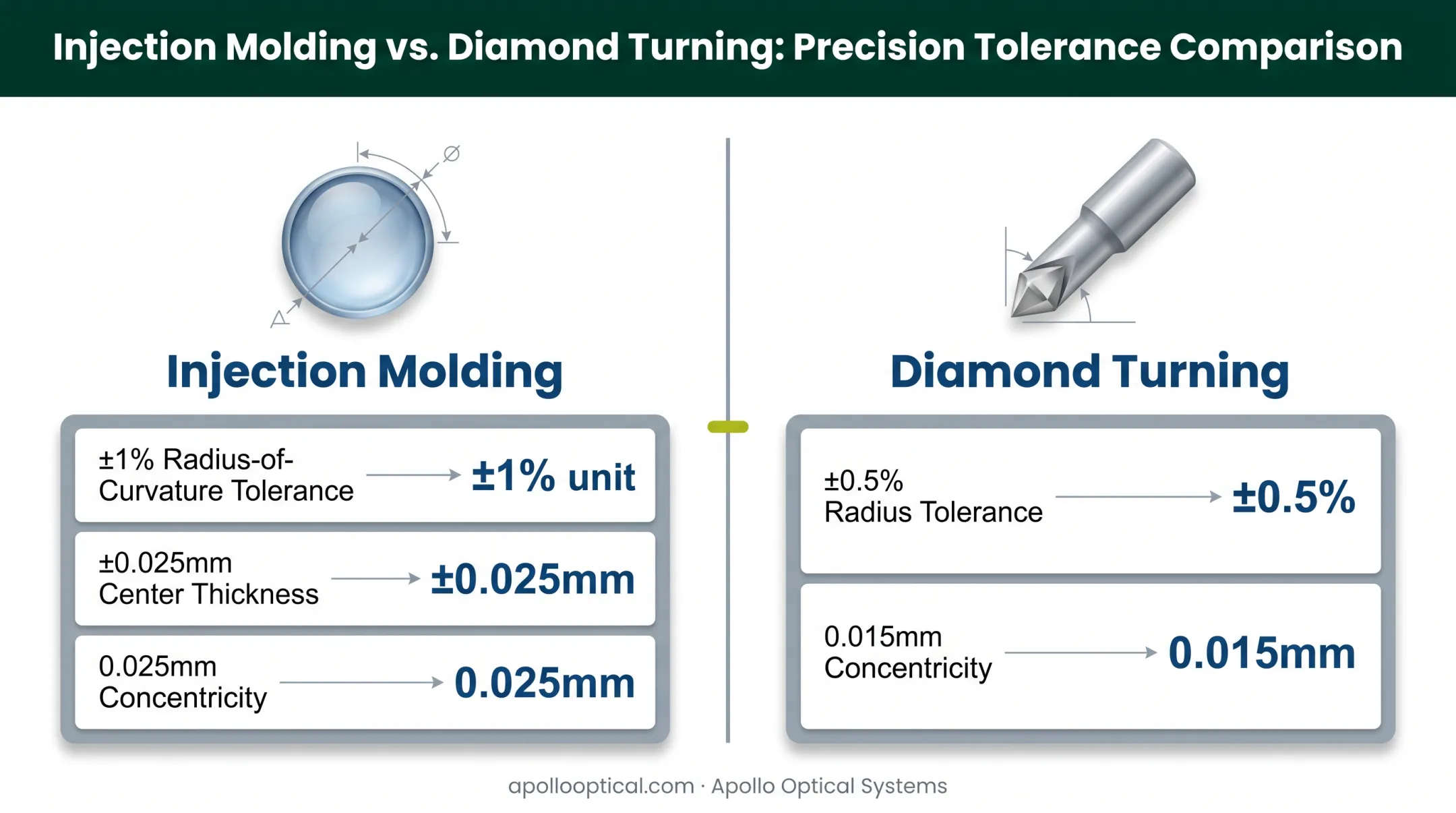

At Apollo Optical Systems, tolerance guidance for polymer optics reflects this reality. Injection-molded components typically hold ±1% radius-of-curvature tolerance, ±0.025 mm center-thickness tolerance, and 0.025 mm concentricity. Single-point diamond turning tightens that further, to ±0.5% radius and 0.015 mm concentricity. Miss these numbers after mold steel is cut, and you're looking at re-tooling—not a quick drawing tweak.
DFM vs. DFA vs. DFMEA
These three terms get used interchangeably, but they answer different questions.
| Practice | Core Question | Typical Output |
|---|---|---|
| DFM | Can this part be manufactured reliably by the intended process? | Geometry, material, tolerance, and tooling decisions |
| DFA | Can this part be assembled easily and quickly with other parts? | Assembly access, clearance, and build-sequence fixes |
| DFMEA | What could fail in this design, and how bad would it be? | A prioritized risk log tied to mitigation actions |
In practice, the lines blur. SAE's course material often treats DFM and DFA as a combined study, while SAE J1739 formally separates design FMEA from process FMEA as distinct risk-analysis activities.
A comprehensive design review often pulls from all three, especially on complex assemblies:
- DFM may flag that a lens can't be molded as drawn
- DFA may flag that the same lens can't be aligned in its housing without a redesigned datum
- DFMEA still asks what happens if the part fails in the field
None of the three replaces the others.

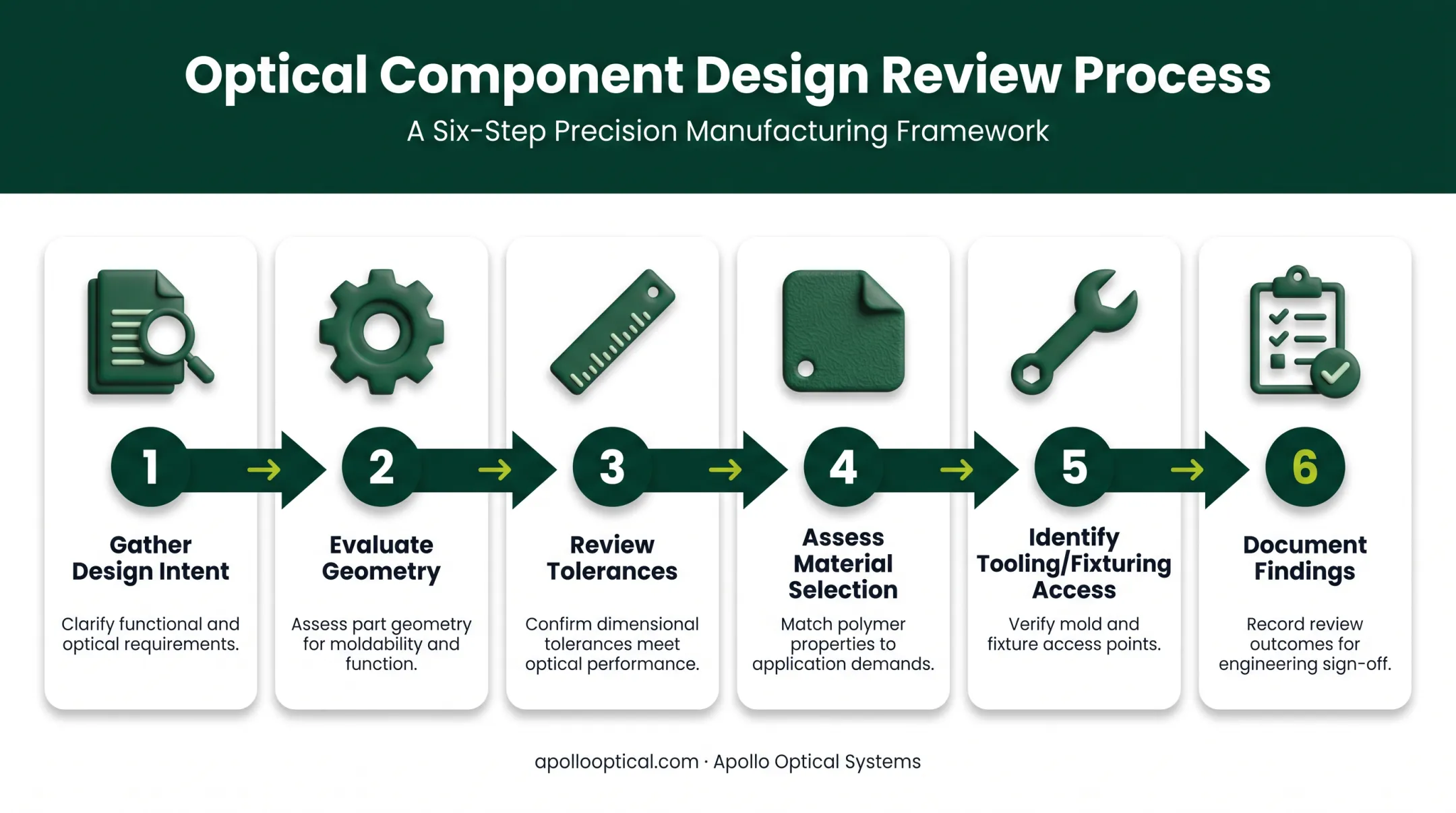

The DFM Review Process, Step by Step
A DFM review isn't a single meeting. It's a sequence of checks, each building on the last.
- Gather design intent. Collect functional requirements, critical interfaces, and expected production volume. A part destined for 500 units behaves differently in a DFM review than one scaling to millions.
- Evaluate geometry against the manufacturing process. Check moldability, machinability, and optical surface accessibility. Can tooling actually reach every feature?
- Review tolerances and specifications. Separate functionally critical dimensions from cosmetic or non-critical ones. NIST's research on precision manufacturing makes the case directly: tight tolerances should be reserved for critical features, since identifying them is central to controlling cost.
- Assess material selection. Confirm the material fits the process, meets performance needs, and doesn't blow the cost target.
- Identify tooling, fixturing, and inspection access issues. Do this before committing to molds or hard tooling, not after.
- Document findings. Route blockers, cost drivers, and observations back to the design team for a decision. A DFM review flags risk; it doesn't unilaterally rewrite the design.
What Late Discovery Actually Costs
There's no universal "10x" or "100x" multiplier that holds up under scrutiny for optics specifically. NIST's design-for-cost research confirms that design changes cost more the later they're made in the development cycle.
For optics, a post-tooling change can touch mold inserts, optical datums, inspection plans, and validation records all at once. That's why the pre-tooling gate matters so much.
DFM Checklist for Engineering and Design Teams
Use this checklist as a pre-tooling gate, not a formality:
- Material selection: Verify availability, cost, and process compatibility before locking the spec
- Tolerances and fit: Keep dimensions within standard process capabilities; tighten only where function demands it
- Geometry and complexity: Check that features are moldable or machinable without unnecessary tooling complexity
- Assembly and accessibility: Ensure parts can be assembled, aligned, and inspected without special handling
- Compliance: Validate the design against applicable industry or regulatory standards for the target application
For optical components specifically, add surface finish, alignment tolerance, and coating compatibility to that list. Standard mechanical DFM checklists don't cover these, but they're often where optical designs run into trouble first.
DFM Guidelines by Manufacturing Process
The "right" answer in a DFM review depends heavily on which process is building the part. That's why locking in the process early matters as much as locking in the geometry.
Injection Molding
- Uniform wall thickness to avoid sink, warp, and internal stress
- Adequate draft angles for clean ejection
- Minimized undercuts that complicate tooling
- Gate placement chosen for material flow, not just convenience Protolabs' guidance on wall thickness makes the mechanism clear: nonuniform walls create sink, warpage, internal stress, and dimensional inaccuracy that show up after the part is molded, not before.

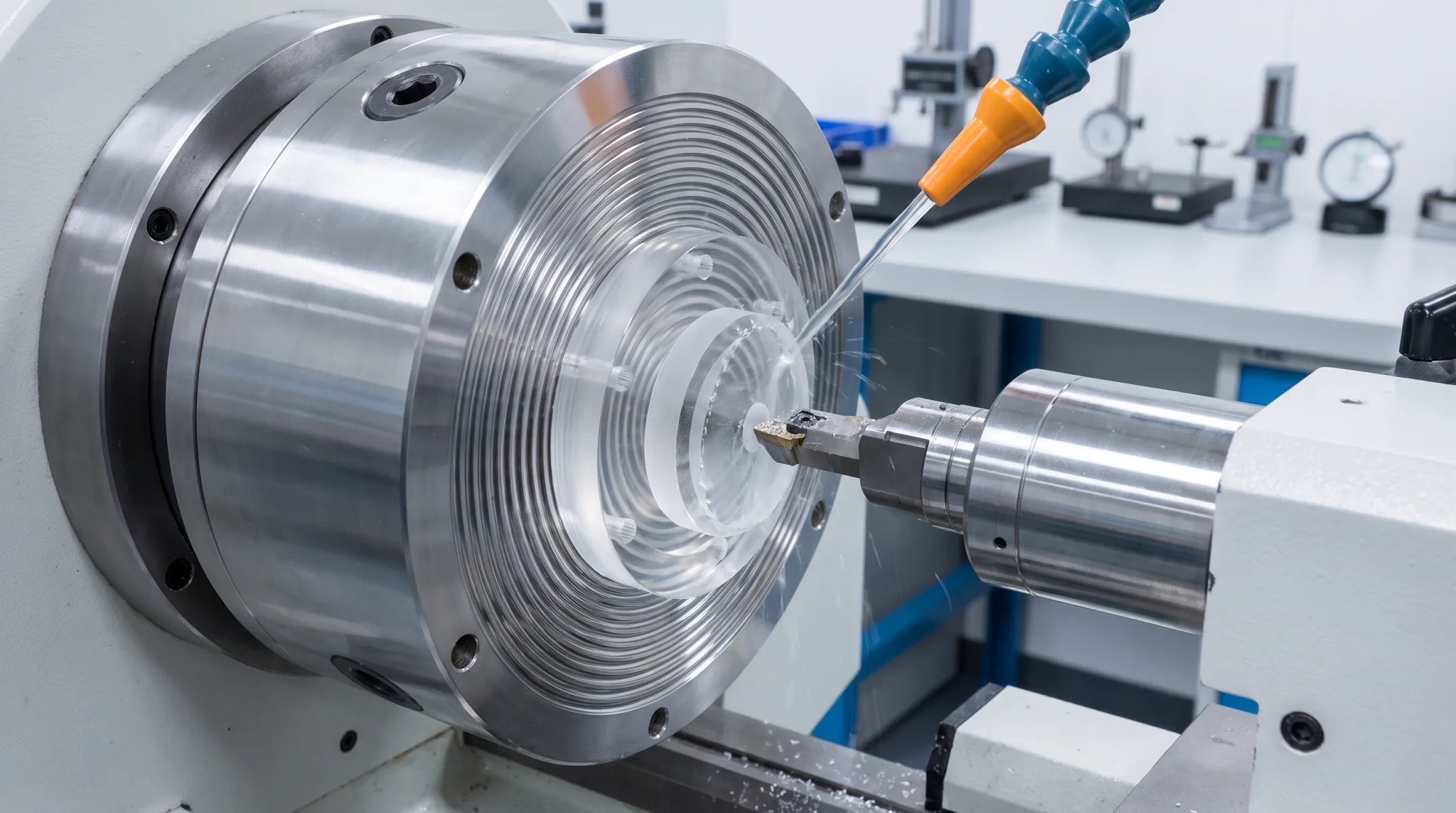

Precision Machining and Diamond Turning
Tool accessibility, achievable tolerances, and surface finish drive this category. Apollo Optical Systems' single-point diamond turning process supports:
- Components from 1 mm to 300 mm in diameter
- Diamond tool radii as small as 1.5 microns
- Surface roughness below 50 Å RMS That finish level isn't optional for optical-grade parts. It separates a lens that performs from one that scatters light unpredictably.
Assembly and Coating Processes
Alignment, bonding, and coating compatibility need attention before molds are cut, not after.
- Concentricity: 0.025 mm for molded parts, 0.015 mm for diamond-turned parts
- Optical surfaces centered to those limits across the assembly

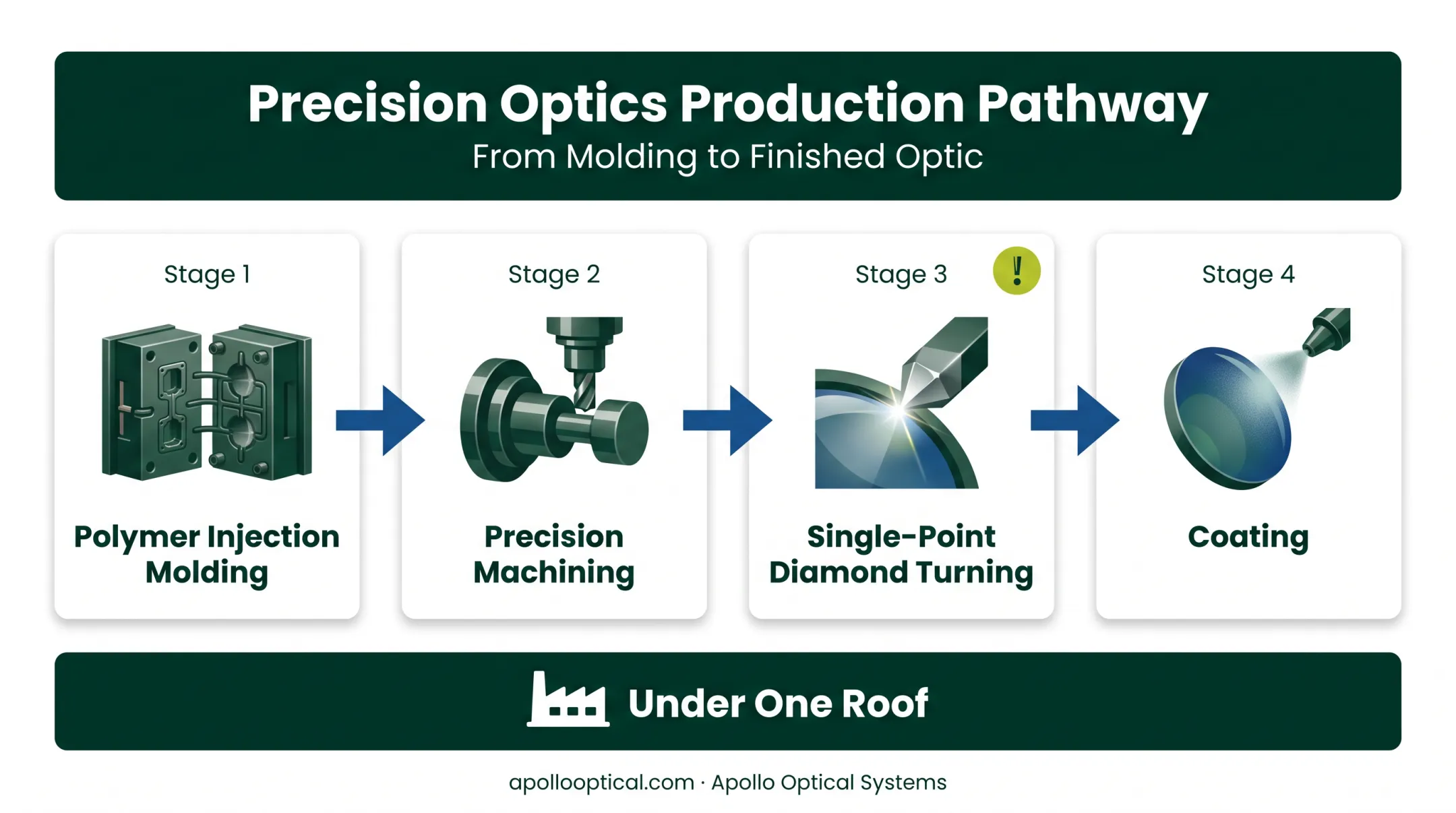

- Coating compatibility checked early—behavior differs on polymer versus glass substrates Process selection has to come first. A DFM review run against the wrong assumed process gives you the wrong answers, no matter how thorough it is. Apollo Optical Systems runs single-point diamond turning, polymer injection molding, precision machining, and coating under one roof in its Rochester, NY facility. That matters for DFM specifically: a review can account for the full production pathway, from prototype through scale, instead of stopping at whichever process the reviewing team happens to specialize in.
Common DFM Mistakes and How to Avoid Them
A few mistakes show up repeatedly across manufacturability reviews, optical or otherwise:
- Overly complex or non-standard geometry that drives up tooling cost and cycle time without adding functional value. Strip features that do not serve a clear function before tooling begins.
- Blanket-tight tolerances applied everywhere instead of only where function requires them. Limit tight callouts to critical features (Peko Precision DFM checklist).
- Bringing in manufacturing partners too late, after geometry and tolerances are frozen in a released drawing. Involve manufacturing while the design can still change.
- Poor documentation or unclear critical-to-function callouts, which leaves inspection teams guessing. Mark CTF dimensions explicitly on the drawing.
None of these are exotic problems. They show up on project after project when the DFM review happens too late to change course cheaply. Catch them early and most become routine design decisions instead of expensive rework.
Frequently Asked Questions
What is a DFM review?
It's a structured evaluation checking whether a design can be manufactured reliably, cost-effectively, and at the intended tolerance before production begins. It happens before tooling or mold commitments are finalized.
What is a DFM checklist?
It's a structured list of manufacturability factors—including material, tolerances, geometry, assembly, and compliance—that engineers use to catch issues before a design is released for production.
What is DFA, DFM, and DFMEA?
DFM focuses on whether a part can be manufactured. DFA focuses on how easily parts assemble together. DFMEA identifies and prioritizes potential design failure modes and their effects.
When should a DFM review be performed?
As soon as geometry is defined, ideally well before tooling or mold commitments are made. The earlier it happens, the cheaper any resulting changes are to implement.
Does a DFM review mean the manufacturer changes my design?
No. A DFM review flags risks and trade-offs. Your team keeps design authority and decides whether and how to implement any changes.
How does DFM apply differently to optical components versus standard mechanical parts?
Optical components add surface finish, alignment, and coating considerations beyond typical mechanical DFM factors. A mechanical part can often tolerate a rougher surface or looser concentricity than an optical one, where those same variances directly affect performance.
