Cyclo Olefin Polymer and Zeonex: Industrial Mobility Solutions

ZEONEX is a family of cyclic olefin polymer (COP) materials developed specifically for optical and high-performance applications. It is widely used in optical systems because it combines high optical transparency, low birefringence, low moisture absorption, and good dimensional stability relative to many other polymers. ZEONEX is not a 'universal optical plastic,' but within its operating envelope, it is a highly capable optical material. Zeonex offers exceptional optical clarity, low birefringence, excellent moisture resistance, and superior dimensional stability across temperature variations, making it ideal for demanding industrial applications.

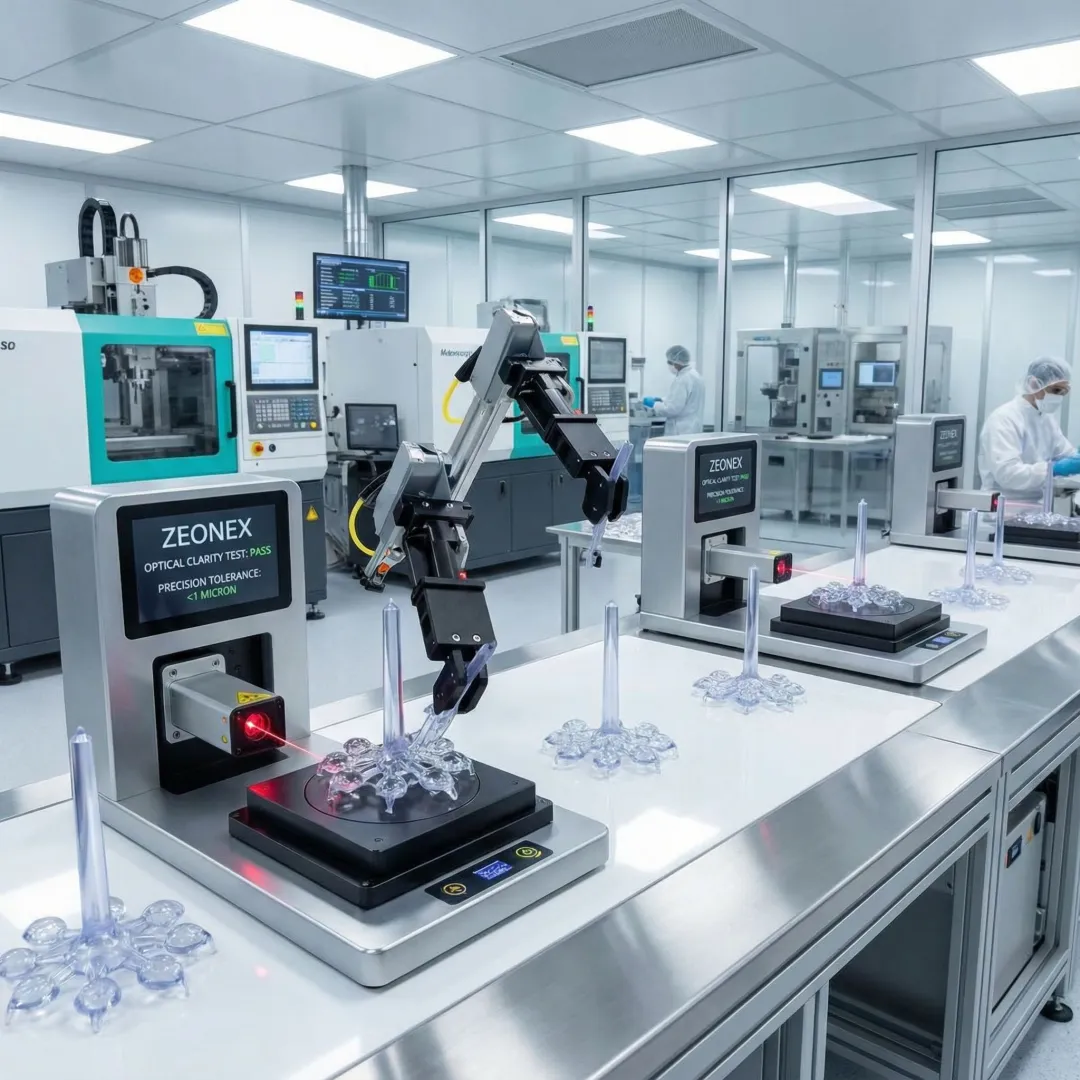

Yes, we offer both low and high-volume injection molding capabilities with specialized processes designed for optical-grade cyclo olefin polymers, ensuring consistent quality at scale. ZEONEX is well suited for precision injection molding, replication of fine optical features, and complex geometries with integrated optical and mechanical elements. Achieving consistent optical performance requires controlled material handling, stable molding parameters, tooling designed for uniform filling and cooling, and careful management of residual stress. Precision with ZEONEX comes from process control, not from the material alone.

Using single-point diamond turning, we typically achieve 60-80 Å RMS surface finish and less than ½ wave peak-to-valley surface figure in polymer materials like Zeonex. Although ZEONEX has low intrinsic birefringence, process-induced stress can still introduce optical artifacts. Key contributors include uneven cooling, aggressive gating, thick-to-thin transitions in geometry, and mounting or assembly stress. Designs must minimize stress generation and validate optical behavior on molded parts, not just material datasheets.

Yes, we specialize in thin-film optical coatings for polymer components, including anti-reflective and custom coatings specifically designed for COP materials and their temperature limitations. ZEONEX components may require coatings to reduce reflection losses, define spectral behavior, and improve surface durability. Coating performance depends on surface preparation, coating stress compatibility, and environmental exposure. Coatings that perform well on glass or other polymers must be validated specifically on ZEONEX substrates.

We use comprehensive metrology including interferometry, surface profiling, coordinate measuring systems, and specialized optical testing to verify all critical parameters and optical performance. ZEONEX offers advantages such as low moisture absorption, but polymer optics must still be evaluated for temperature cycling, long-term dimensional stability, and exposure to environmental conditions relevant to the application. Performance must be validated over the expected service life, not just at initial inspection.

Absolutely. We have over 25 years of experience assembling complex polymer optical systems, from UV bonded doublets to multi-element assemblies with volumes from prototypes to hundreds of thousands per month. ZEONEX optics can meet tight tolerances — but only when geometry supports stable replication, tolerances are functionally justified, and process capability is understood. Over-specifying tolerances without regard to polymer behavior increases cost and risk without improving performance. Effective designs allocate tight tolerances only where they directly affect optical function.

We provide comprehensive optical and mechanical design services, including design for manufacturing, tolerance analysis, and design verification to optimize your COP component designs for production. ZEONEX is well suited for precision optical components, microlens arrays and replicated optics, optical elements requiring low birefringence, and systems where weight and integration matter. It is less suitable where very high operating temperatures dominate, extreme thermal stability is required without compensation, or environments exceed polymer limits. Understanding these boundaries is critical to successful use. Rather than asking 'Is ZEONEX the best optical plastic?', engineers should ask: How does its thermal behavior affect my system? How sensitive is performance to molding stress? What process controls are required to maintain consistency? How will performance be validated over time? Clear answers to these questions lead to reliable designs.

We operate under ISO, FDA, and GMP protocols with extensive in-house metrology capabilities and proven manufacturing processes specifically developed for optical-grade polymer materials. ZEONEX is not a shortcut to glass-like performance in plastic. It is a high-performance optical polymer that delivers excellent results when its material behavior is respected, manufacturing processes are controlled, tolerances are allocated intentionally, and validation reflects real operating conditions. That is how ZEONEX succeeds in real optical systems.
