Engineers specifying illumination components often hit the same wall: how do fiber optic light guides actually differ from liquid or plastic alternatives, and which one fits a given application? The distinctions matter more than they seem, especially in medical, defense, or industrial systems where failure isn't an option.
This guide breaks down how fiber optic light guides work, where they show up across industries, how they stack up against liquid light guides, and what to look for in a manufacturing partner.
Key Takeaways
- Bundled glass or fused silica fibers deliver low-loss light via total internal reflection
- Solid fiber guides beat liquid guides on rigidity, lifespan, and harsh-environment stability
- Primary markets: medical, defense, aerospace, and industrial inspection
- Match the guide to flexibility needs, budget, and environmental exposure
- The right manufacturing partner cuts development time and protects quality at scale
What Are Fiber Optic Light Guides?
Fiber optic light guides are bundles of fused silica or glass fibers designed to transmit light from a source to a target location with minimal loss. Unlike imaging fiber bundles, which preserve a picture by keeping individual fibers aligned end-to-end, light guides exist purely to move illumination. Fiber order doesn't matter here; only total light throughput does.

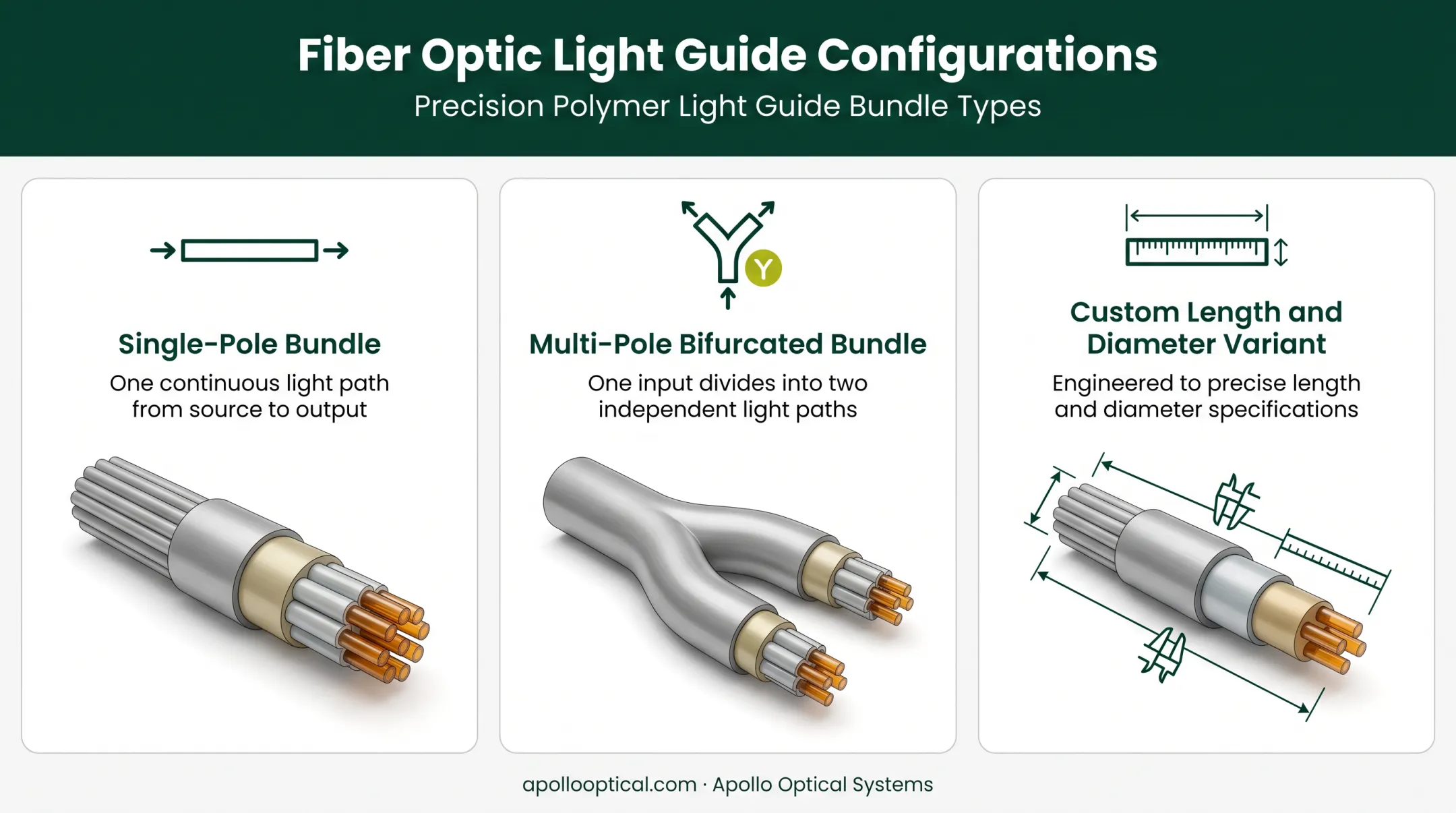

Common configurations include:
- Single-pole bundles: one input, one output, for direct point-to-point lighting
- Multi-pole (bifurcated) bundles: one input split across two or more outputs to light multiple zones from one source
- Custom lengths and diameters: sized for the job, from compact diagnostic tools to longer industrial inspection lines
Physically, these guides are more rigid than liquid alternatives and have a defined minimum bend radius. Push a fiber bundle past that radius and you introduce loss or, worse, permanent fiber damage.
Why Fused Silica Matters
High-purity fused silica delivers strong optical clarity and durability. According to SCHOTT's overview of glass optical fibers, the material remains stable at temperatures up to 350°C and resists cleaning agents, acids, bases, and solvents, which matters for medical devices that undergo repeated sterilization.
Fiber light guides have supported medical instrumentation since at least the 1980s, when early endoscopes relied on fiber bundles for illumination before LED and liquid-guide alternatives entered the market.
How Fiber Optic Light Guides Work

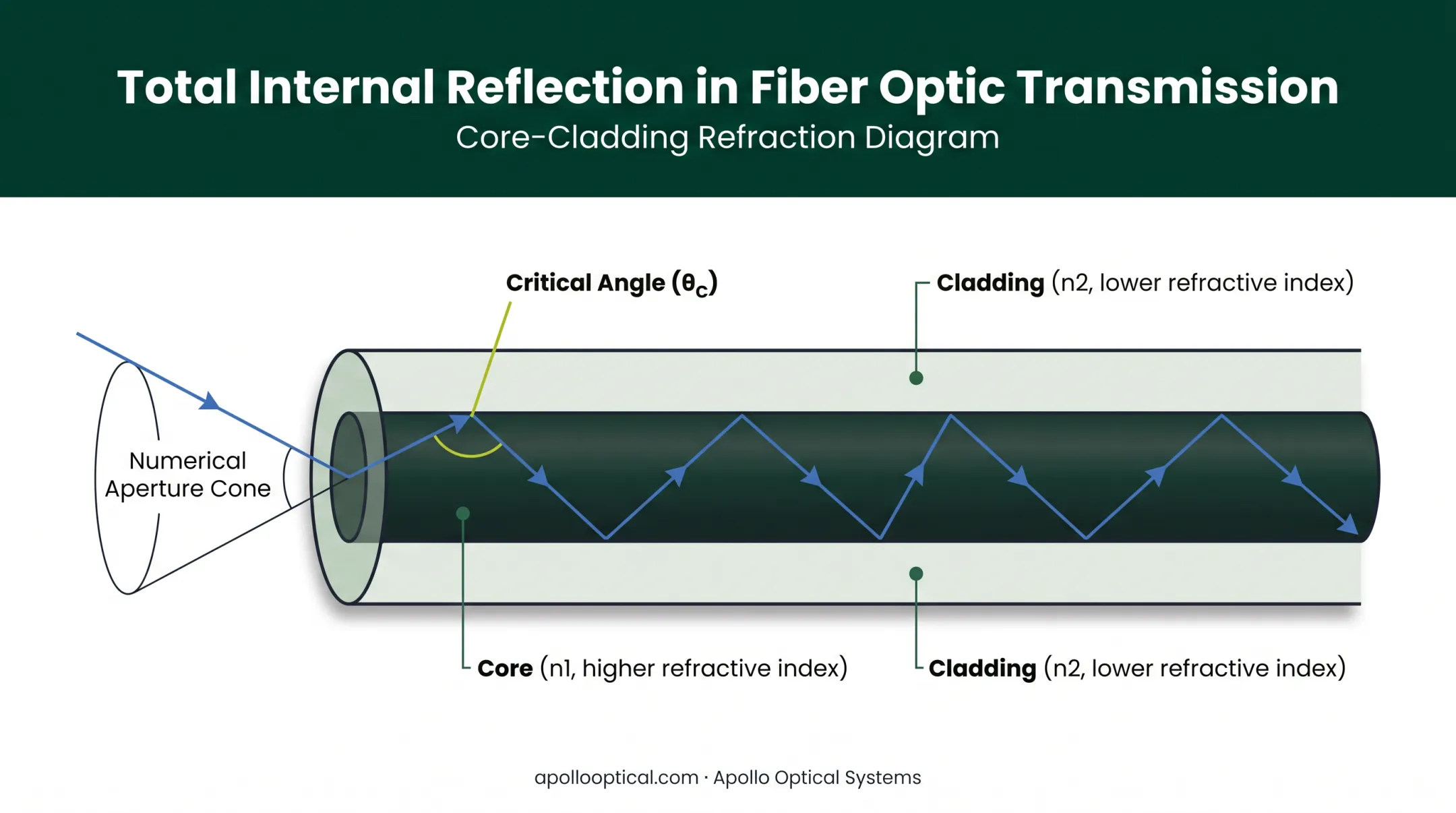

Fiber optic light guides move light through total internal reflection (TIR). Each fiber has a high-index glass core surrounded by lower-index cladding. When light hits that core-cladding boundary at a steep enough angle, it reflects back into the core instead of escaping.
The Role of Critical Angle and Numerical Aperture
Snell's Law explains why. Per Newport's fiber optic physics reference, the critical angle is calculated as theta-c = arcsin(n2/n1), where n1 and n2 are the refractive indices of the core and cladding. Light striking the boundary at an angle greater than this critical angle stays trapped and travels down the fiber. Light striking below it escapes and is lost.
Numerical aperture (NA) describes how much light a fiber can accept and still transmit through TIR. A higher NA means:
- Easier coupling to a light source
- Greater light-gathering ability
- Higher intensity output for wide-emitting sources like LEDs
Fiber optic light guides generally have a lower NA than liquid light guides, so they capture less of the wide emission angle typical of LED sources. Dymax's comparison of liquid-filled versus quartz-fiber light guides notes this directly, and it is a major factor in the fiber-vs-liquid decision.
What Causes Light Loss
Several factors chip away at transmission efficiency:
- Tight bend radii increase scattering and loss at the core-cladding boundary
- Irregularities in core diameter or geometry scatter light inside the fiber
- Every connector joint adds loss; benchmark connectors typically stay under 0.5 dB
Any one of these losses is manageable. Combined—a tight bend, a weak fiber batch, and a poor connector—they cut output enough to notice.
Applications and Industries Using Fiber Optic Light Guides
Fiber optic light guides are used wherever engineers need controlled, heat-free, electrically isolated illumination.
Medical & life sciences:

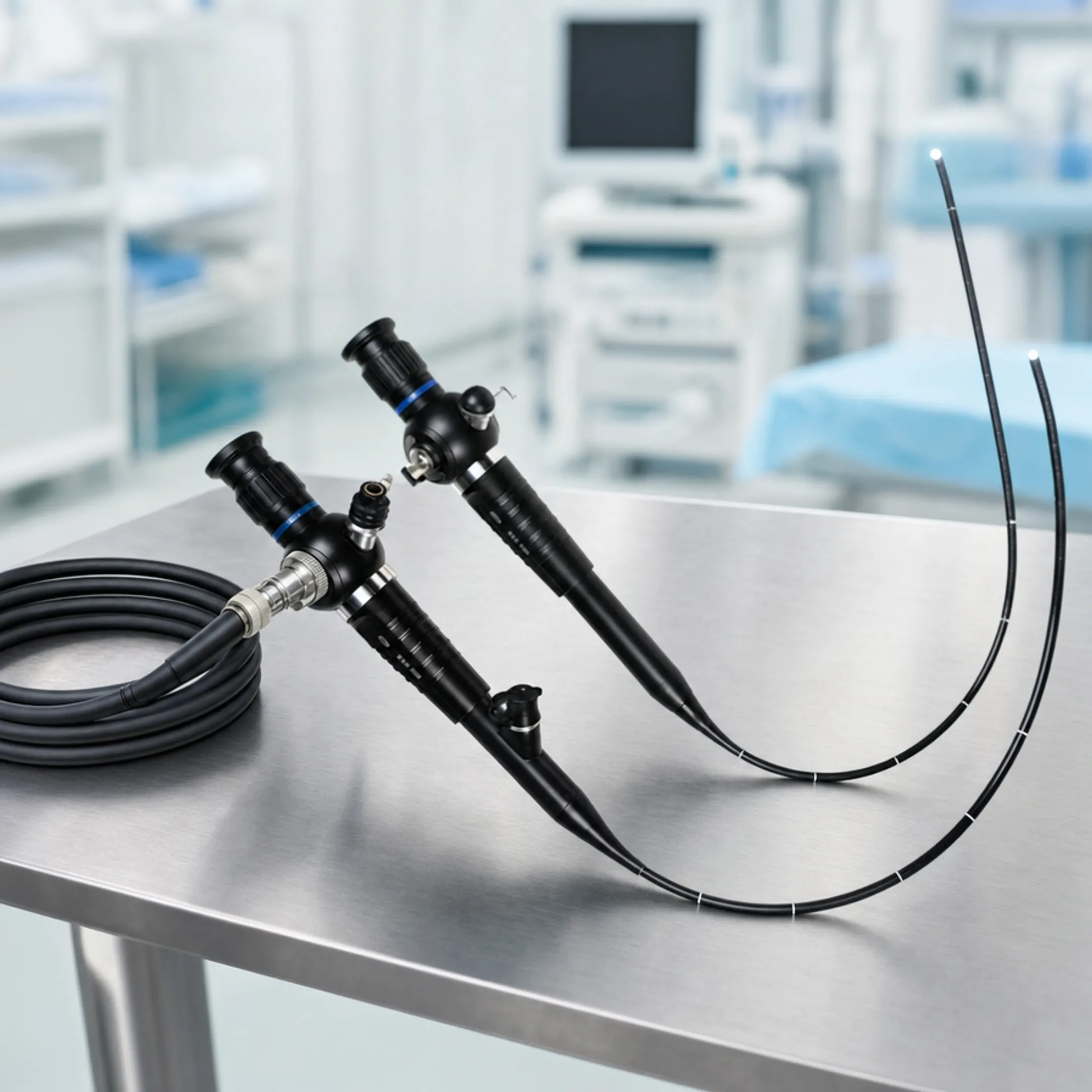

- Endoscopy and surgical illumination
- Diagnostic imaging support lighting
- Instrument lighting where sterilization and long-term reliability are non-negotiable
Defense & aerospace:
- Instrument panel lighting
- Sensor illumination
- Rugged equipment that must hold performance under extreme temperature and vibration
Industrial and UV curing:
- Spot curing systems for adhesives and coatings
- Inspection lighting for quality assurance
- Machine vision illumination (front, back, oblique, or line lighting)
Automotive and specialty lighting:
- Interior light pipes and diffusers
- Indicator and signal illumination
- Long-life transmission without the maintenance burden of liquid guides
Apollo Optical Systems supports custom illumination and precision optics design across these same sectors: Defense & Aerospace, Medical & Life Sciences, and Industrial & Commercial Systems. That includes aerospace reading lights, floor emergency lighting systems, compound parabolic reflectors for landing lights, and automotive light pipes and diffusers.
Engineers get a single point of contact for illumination optics design, even when the end component isn't a traditional glass fiber bundle.
Fiber Optic vs. Liquid Light Guides: Which Is Right for You?
Neither option wins across every category. The right choice depends on your specific constraints.

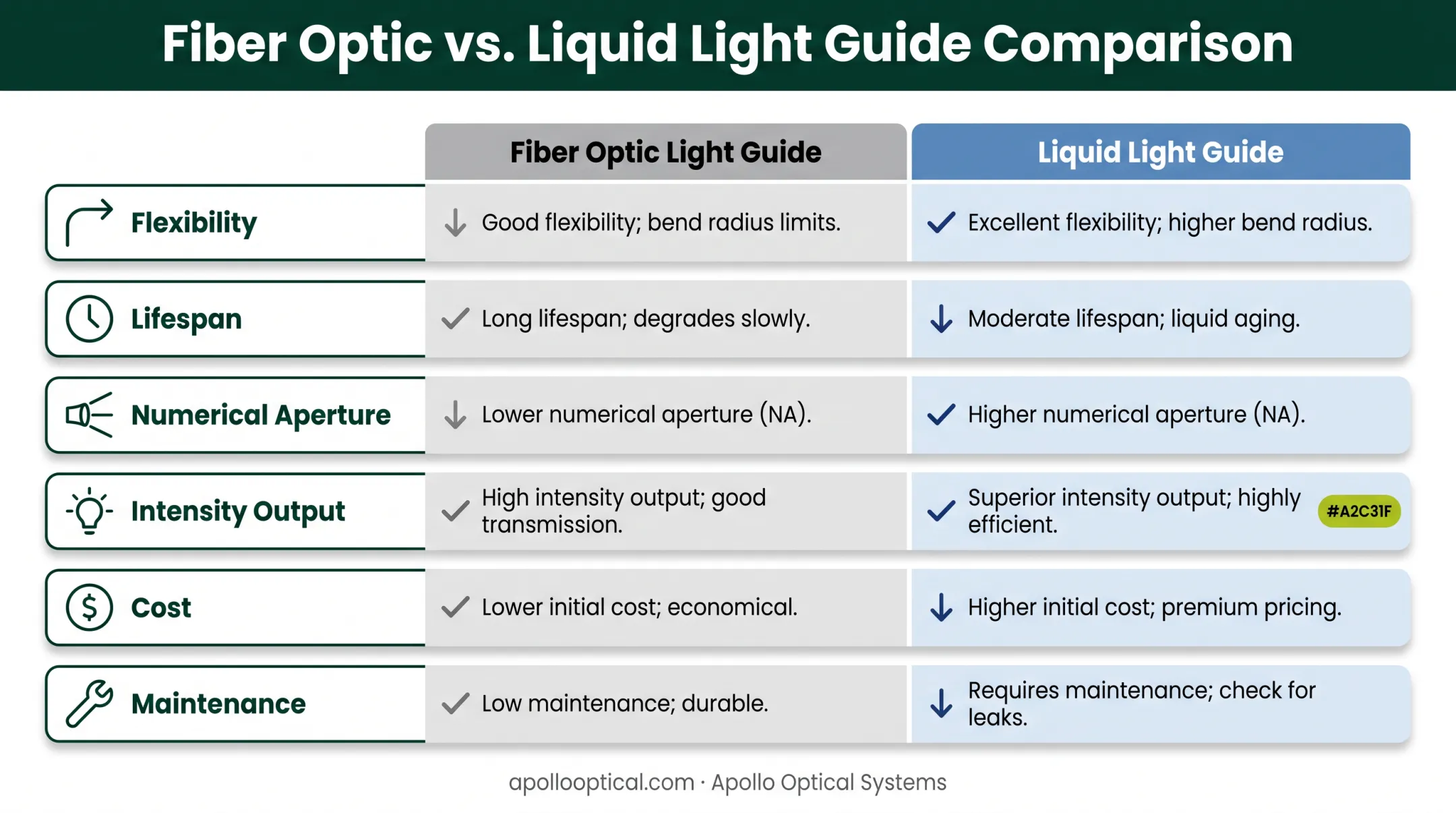

| Factor | Fiber Optic Light Guide | Liquid Light Guide |
|---|---|---|
| Flexibility | More rigid; defined minimum bend radius | Bends more freely |
| Lifespan | Longer, with lower performance decay | Degrades faster, especially under heat/UV |
| Numerical aperture | Generally lower | Generally higher |
| Intensity output | Lower for the same input source | Up to 35–50% more intense in some Dymax comparisons |
| Cost | Typically higher upfront | Often less than half the cost |
| Maintenance | Minimal once installed | Requires more frequent replacement |
Making the Call
- Choose fiber optic for high heat, rigid routing in tight spaces, or long service life with few swaps
- Choose liquid light guides for maximum flexibility, higher intensity from one source, and acceptable periodic replacement
- Weigh total cost: liquid guides cost less upfront but add recurring replacement expense
A UV-curing line running 24/7 often favors fiber for durability. A benchtop microscope illuminator may prefer liquid for flexibility and brightness. Match the guide to your heat load, bend path, intensity need, and replacement tolerance.
Choosing a Manufacturing Partner for Custom Fiber Optic Light Guides
Off-the-shelf light guides rarely meet the tolerances required for defense, medical, or specialized industrial systems. A stock component might not fit your bend radius requirement, your sterilization cycle, or your mounting geometry — and redesigning your system around an existing part is rarely the right trade-off. Look for a partner with these capabilities:
- In-house design-for-manufacturability (DFM) support from the earliest concept stage
- Single-point diamond turning for prototype and low-volume precision components
- Precision injection molding for scaling illumination optics to production volumes
- Advanced coating and metrology to verify surface quality and optical performance
- Assembly capabilities, including UV-bonded and multi-element optical systems Those capabilities matter most when they sit under one roof. Apollo Optical Systems in Rochester, NY, builds on precision optics work that traces back to Rochester Photonics Corporation and the University of Rochester's Institute of Optics. Its 21,000-square-foot facility runs three single-point diamond turning lathes, in-house injection molding, and metrology tools that include Zeiss coordinate measuring systems and white-light interferometers. Apollo's illumination and light-guide work centers on precision polymer optics, including PMMA, polycarbonate, and COC, rather than fused silica or glass fiber manufacturing. For engineers designing polymer light pipes, diffusers, and illumination assemblies for automotive, defense, or industrial systems, that path—from prototype through high-volume molded parts—keeps design, tooling, and production aligned. For regulated industries, quality control isn't optional. Apollo is certified to ISO 13485:2016, and its assemblies are manufactured within ISO, FDA, and GMP protocols — relevant for medical device programs where documentation and traceability carry as much weight as optical performance. A secure, single-source supply chain also reduces the risk of delays when scaling from prototype to full production.
Frequently Asked Questions
What is a good fiber light reading?
A "good" reading is the optical power or transmission loss that meets your guide's rated performance for that setup. Check the manufacturer's specifications instead of a generic benchmark.
What's the color code for fiber?
Multi-fiber cables use a standardized color sequence (blue, orange, green, brown, and others) defined by TIA-598 to identify individual fibers during installation and testing. This helps technicians trace specific fibers within a bundle quickly.
How long do fiber optic light guides typically last?
With proper handling, fiber optic light guides generally outlast liquid alternatives, delivering consistent performance over years of continuous use. Liquid guides, by comparison, are considered a consumable that degrades with repeated use.
Can fiber optic light guides be customized for specific applications?
Yes. Diameter, length, number of poles, fiber type, and end-fittings can all be tailored to your application's specific requirements, including bifurcated designs for multi-point illumination.
Are fiber optic light guides better than liquid light guides for UV curing?
It depends on the job. Fiber guides handle sustained heat better and last longer, while liquid guides offer more flexibility and higher single-pole transmission efficiency for certain curing setups.
What materials are used to make fiber optic light guides?
Fused silica, specialty glass, and polymer optical fibers are common choices. Material selection balances transmission efficiency, flexibility, and durability under repeated, intense light exposure.
