VCSEL Collimating Optics for LiDAR and 3D Sensing

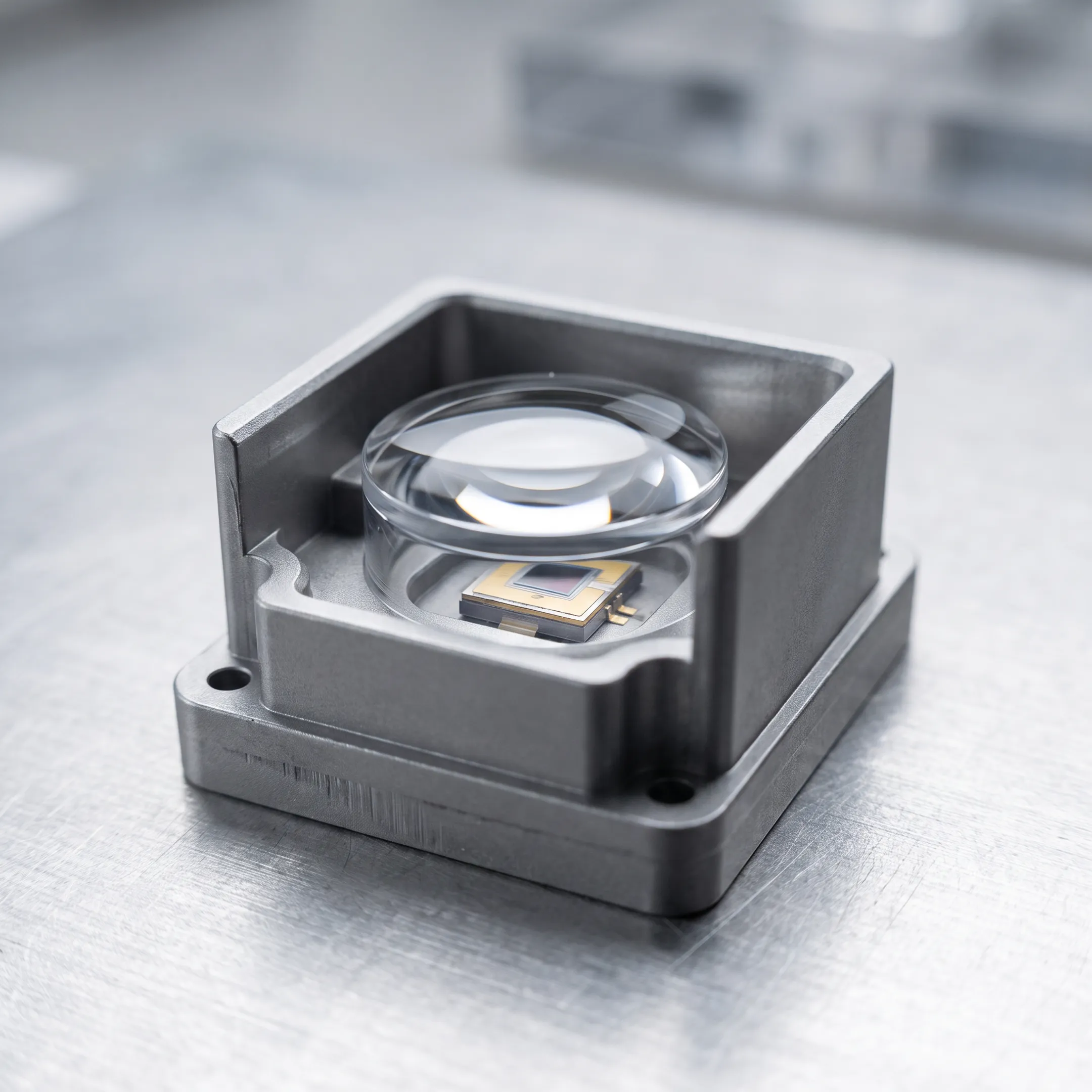

A collimating lens converts light from a divergent source, such as a VCSEL, into a more parallel and controlled beam. In LiDAR and 3D sensing, this helps define illumination coverage, improve optical efficiency, and support predictable system geometry. The lens design must account for emitter characteristics, required divergence, working distance, wavelength, packaging space, and allowable optical losses.

Choose a collimating lens by starting with the VCSEL’s emitting area, numerical aperture, wavelength, and native divergence. Then define the desired output beam angle, uniformity, aperture, working distance, and package constraints. Material transmission, refractive index, temperature behavior, coating needs, tolerances, and intended production volume should also be reviewed. Optical simulation and tolerance analysis help confirm that a practical design meets system requirements.

The appropriate optic depends on the illumination architecture and required field of view. Aspheric lenses can efficiently collimate individual emitters, while microlens arrays can shape output from VCSEL arrays. Diffractive surfaces may add beam-control functionality, and anti-reflective coatings can reduce reflection losses. A complete selection should consider wavelength, divergence, eye-safety requirements, package size, thermal conditions, and production strategy.

Yes. Optical-grade polymers can be effective for VCSEL collimation when the material is selected for transmission, birefringence, refractive index, thermal stability, environmental resistance, and molding behavior. Polymer injection molding can also support repeatable, high-volume parts with complex optical surfaces. Apollo works with materials including acrylic, Zeonex, Zeonor, polystyrene, Ultem, polycarbonate, and specialty polymer resins.

Anti-reflective coatings reduce reflected light at optical interfaces across a specified wavelength range. For VCSEL-based sensing systems, lower reflection can improve transmitted optical power and limit unwanted stray light that may affect sensor performance. Coating selection must be compatible with the operating wavelength, angle range, substrate material, environmental conditions, and polymer temperature limitations during the deposition process.

Small changes in lens shape, thickness, decenter, tilt, emitter position, or refractive index can alter output divergence, beam direction, and uniformity. Tolerance analysis identifies which variables most affect performance and establishes realistic manufacturing limits. Coordinating optical and mechanical requirements early helps avoid designs that perform in software but are difficult to fabricate, align, inspect, or assemble consistently.

Yes. Apollo can develop custom optical prototypes using single-point diamond turning in a range of polymer and metal materials. This capability supports aspheric, diffractive, Fresnel, toroidal, spherical, and plano surfaces, allowing teams to evaluate optical concepts before production molding. Prototype results can inform design verification, tolerancing, material selection, coating decisions, and the transition to scalable manufacturing.

A useful starting package includes the VCSEL wavelength, emitter dimensions, divergence or numerical aperture, array layout, required output beam profile, field of view, operating distances, package envelope, environmental requirements, target volume, and performance priorities. Existing optical prescriptions, mechanical models, ray-trace files, and test data are also helpful. Apollo can use this information to assess design, manufacturability, and verification needs.
