Converting Glass Optics to Molded Polymer

Many glass optical components can be converted to molded polymer, but suitability depends on optical performance, wavelength range, environmental exposure, tolerances, volume, and cost targets. The process typically starts with a design-for-manufacturing review and optical analysis. That review identifies where polymer can meet system requirements and where geometry, material, coatings, or assembly methods may need adjustment.

Molded polymer optics can reduce component weight, support complex geometries, consolidate multiple features, and offer a cost-effective path for higher production volumes. Polymer molding can also enable features that would be difficult or expensive to machine in glass. Benefits must be evaluated against requirements for transmission, thermal stability, birefringence, durability, coatings, and dimensional precision.

Material selection may include acrylic, styrene, Zeonex, Zeonor, Ultem, polycarbonate, and specialty optical resins. Each material has different characteristics for light transmission, refractive index, birefringence, moisture resistance, heat resistance, chemical resistance, and processability. The right choice is based on the component’s optical function, operating environment, sterilization needs, coating requirements, and expected production volume.

A molded polymer optic can meet the required performance for many applications when the design, material, tolerances, and coatings are engineered as a complete system. It is not always a one-for-one replacement because polymers behave differently from glass in areas such as refractive index, thermal expansion, birefringence, and environmental resistance. Analysis and prototype validation establish practical performance expectations.

Polymer optics can receive thin-film anti-reflective, mirror, filter, and beamsplitter coatings for UV, visible, or NIR applications. Coating polymer requires processes that account for the substrate’s temperature limitations and surface characteristics. Engineers evaluate the required wavelength response, adhesion, durability, geometry, and material compatibility to develop a coating approach that supports the optical component’s intended use.

Yes. Prototype development can include optical and mechanical design work, tolerance analysis, design verification, and single-point diamond turning for small quantities of custom optical components. Prototyping helps teams evaluate image quality, illumination, fit, assembly, and material choices before committing to a production molding strategy. The results can inform design refinements and reduce risk during the transition to scale.

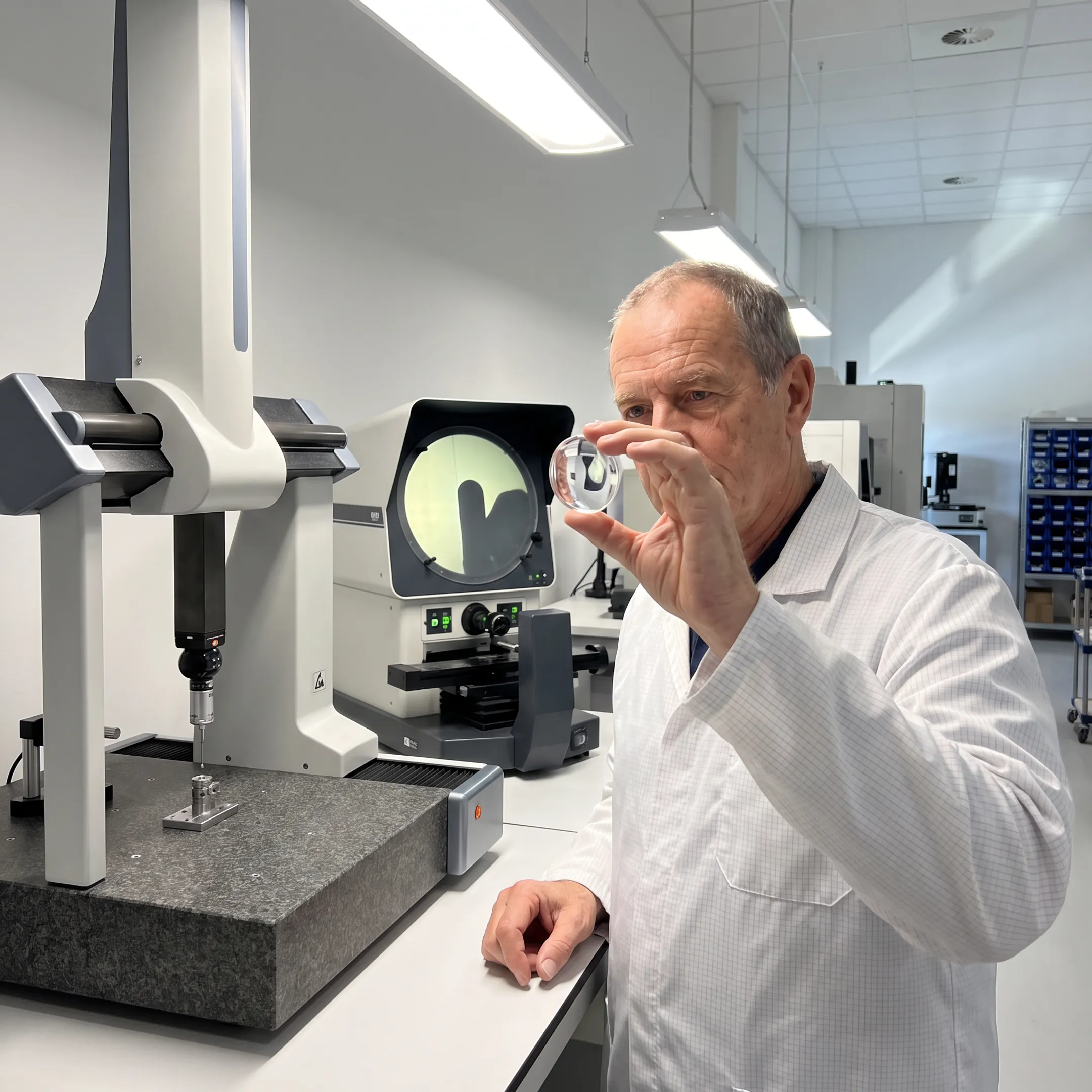

Achievable tolerances depend on the optic’s diameter, geometry, material, optical function, tooling, and production method. Tight optical and mechanical requirements require coordinated tolerance analysis between optical and mechanical engineering teams. Apollo uses metrology tools including interferometry, profilometry, coordinate measurement, and microscopy to measure relevant characteristics and verify whether components align with defined design specifications.

A productive evaluation begins with optical prescriptions or drawings, performance requirements, wavelength range, operating environment, annual volume, target cost, critical tolerances, coating needs, and assembly details. Existing test data and known issues with the glass component are also helpful. With this information, engineers can assess material options, manufacturability, likely design changes, and an appropriate prototype or production path.
