Professional Infrared Optical Coatings Designs and Applications

We provide anti-reflective (AR) coatings, reflective coatings, filter coatings, beamsplitter coatings, and custom thin-film solutions for UV, visible, and NIR wavelength ranges. Infrared optical coatings are engineered to transmit defined IR bands, block unwanted wavelengths, reduce reflection, improve signal-to-noise ratio, and protect optical surfaces. Performance depends on nanometer-scale layer thickness, refractive index control, uniform deposition, and substrate compatibility. IR coatings are not generic layers — they are wavelength-tuned systems.

Yes, we specialize in coating both plastic and glass components, with particular expertise in polymer coating solutions that require specialized techniques for temperature-sensitive materials. Infrared coatings are often optimized for 850 nm, 905 nm, 940 nm, near-IR sensor bands, and thermal IR applications. Spectral performance must remain stable under temperature variation, angle-of-incidence changes, and environmental exposure. Small thickness variation can shift passband location measurably.

Our evaporative coating capabilities include gold, silver, aluminum, magnesium fluoride, and other specialized coating materials to meet specific optical requirements. Glass substrates offer low thermal expansion, strong adhesion surface, and dimensional stability. Polymer substrates provide weight reduction, impact resistance, and integration flexibility. However, polymers introduce higher thermal expansion, lower surface energy, potential outgassing, mechanical flexibility, and creep under temperature. IR coating stack design must account for substrate movement. A stable spectral curve requires a stable substrate.

Yes, we offer comprehensive coating design services combining advanced thin-film technology with in-house engineering expertise to develop custom solutions for complex applications. IR coatings consist of multiple thin-film layers. When substrate and coating expand at different rates, stress builds during thermal cycling, micro-cracks may form, spectral performance may drift, and delamination risk increases. This is especially critical in automotive sensing systems, outdoor environments, and large-format windows. Thermal validation must simulate real operating cycles.

Our coatings serve medical devices, defense & aerospace, automotive, telecommunications, virtual reality, augmented reality, machine vision, security, imaging, and industrial applications. Many IR coatings are sensitive to incidence angle, polarization, and wavelength shift under tilt. Coating design must reflect actual system geometry. Spectral performance at 0° does not guarantee performance at operating angle.

Yes, we provide flexible production from single prototypes to high-volume batches, with capabilities ranging from one-of-a-kind assemblies to hundreds of thousands per month. IR coatings must withstand humidity exposure, temperature cycling, mechanical handling, and environmental contaminants. Adhesion testing should reflect real operating conditions, substrate expansion behavior, and long-term durability expectations. Initial adhesion does not guarantee field stability.

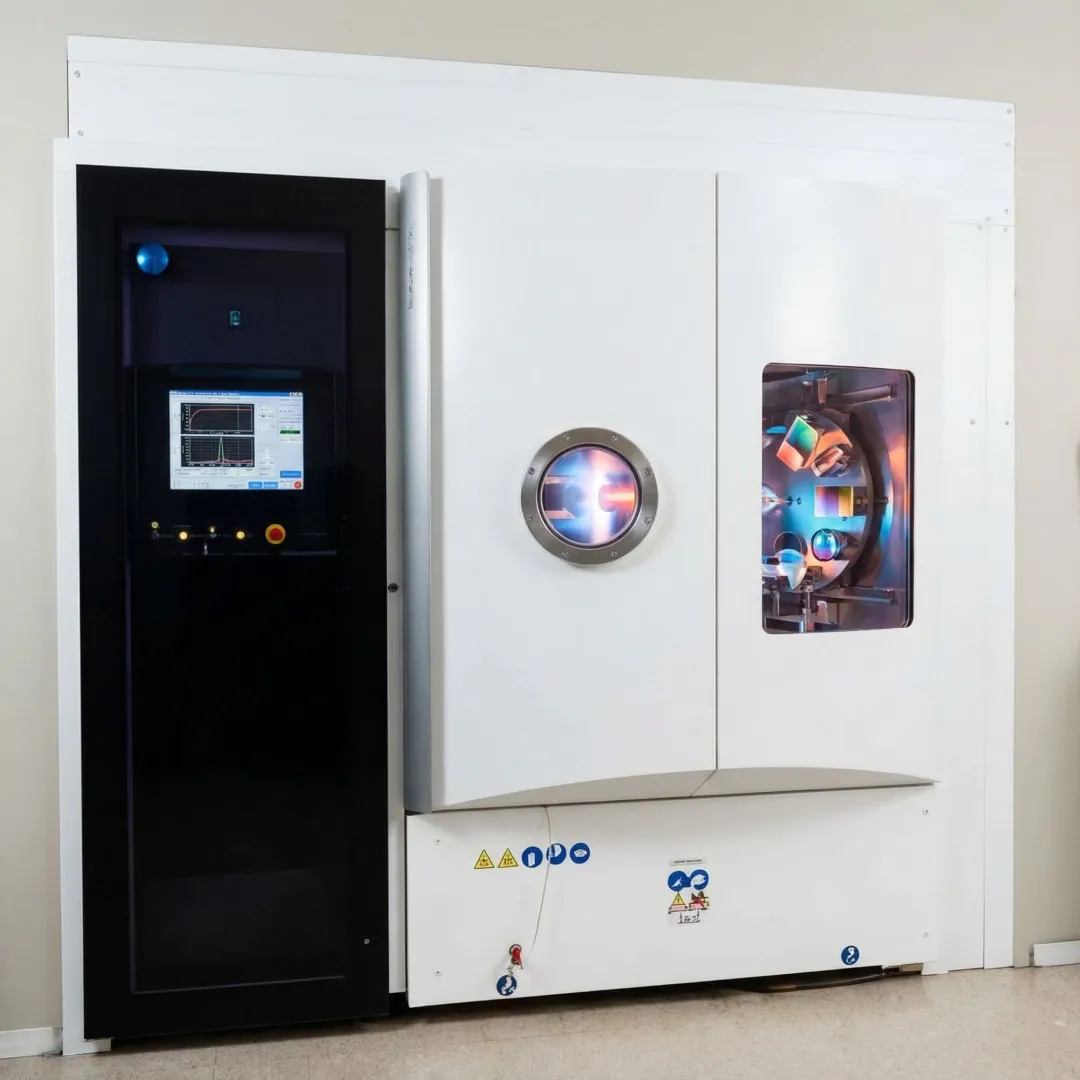

All coating work is conducted within ISO, FDA, and GMP protocols, with extensive in-house metrology capabilities to confirm coating quality and optical performance. IR coatings rely on controlled deposition environment, uniform thickness across surface, and monitored chamber stability. Thickness drift can shift peak transmission, reduce blocking efficiency, and alter reflectance behavior. Process discipline defines spectral accuracy.

We use advanced metrology equipment including interferometers, scanning white light systems, and optical profilers to measure critical optical parameters and validate coating performance. IR coatings that perform well in early builds may encounter ramp challenges: chamber drift, thickness non-uniformity, contamination variability, and substrate lot variation. If spectral tolerance is tight, small variation can impact sensor performance. Stable production monitoring is essential.

Polymer substrates may not be ideal when operating temperatures are high, thermal cycling is extreme, dimensional stability must approach glass, or long-term creep cannot be tolerated. Glass may provide greater long-term spectral stability in some IR systems. Material choice must align with lifecycle demands.

Rather than asking 'Can you apply an IR coating?', experienced teams ask: How stable is spectral performance after 500 thermal cycles? What is the passband shift over temperature? How is thickness uniformity verified? How is adhesion validated on polymer substrates? What is the blocking ratio stability over time? These questions determine system reliability.
