Many optical programs pour resources into lens design and treat illumination as an afterthought — bolt on an LED, add a diffuser, call it done. That's how teams end up with uneven brightness, wasted heat, and optics that look great in simulation but fail on the bench.
This guide covers what illumination system design actually involves, the main types of illumination architectures, the core design process, and how validated designs get turned into optics you can actually manufacture at scale.
Key Takeaways
- Illumination design shapes light output for a target application, a separate discipline from imaging and lens design
- Non-imaging optics (light guides, diffusers, reflectors, freeform elements) control most of the beam path and distribution
- Success requires balancing uniformity, efficiency, thermal load, and manufacturability simultaneously
- Medical, automotive, defense, and consumer electronics all require precision illumination engineering
- The gap between a great simulation and a scalable product is where most programs actually stall
What Is Illumination System Design?
Illumination system design is the engineering discipline of shaping light from a source (LED, laser diode, or lamp) into a specific pattern, intensity, or distribution for a target application. Rather than forming a picture, it delivers light exactly where it's needed and nowhere else.
This distinguishes it sharply from imaging optics, which maps points on an object to points on an image (think camera lenses). Non-imaging optics theory instead prioritizes efficient collection, transport, and distribution of light energy. The goal is delivered flux, not resolution.
Common light sources and their design impact:
- LEDs — compact, efficient, but sensitive to thermal derating
- Laser diodes — high intensity, narrow spectrum, coherence considerations
- Halogen/incandescent — broad spectrum, higher heat output, less common in new designs

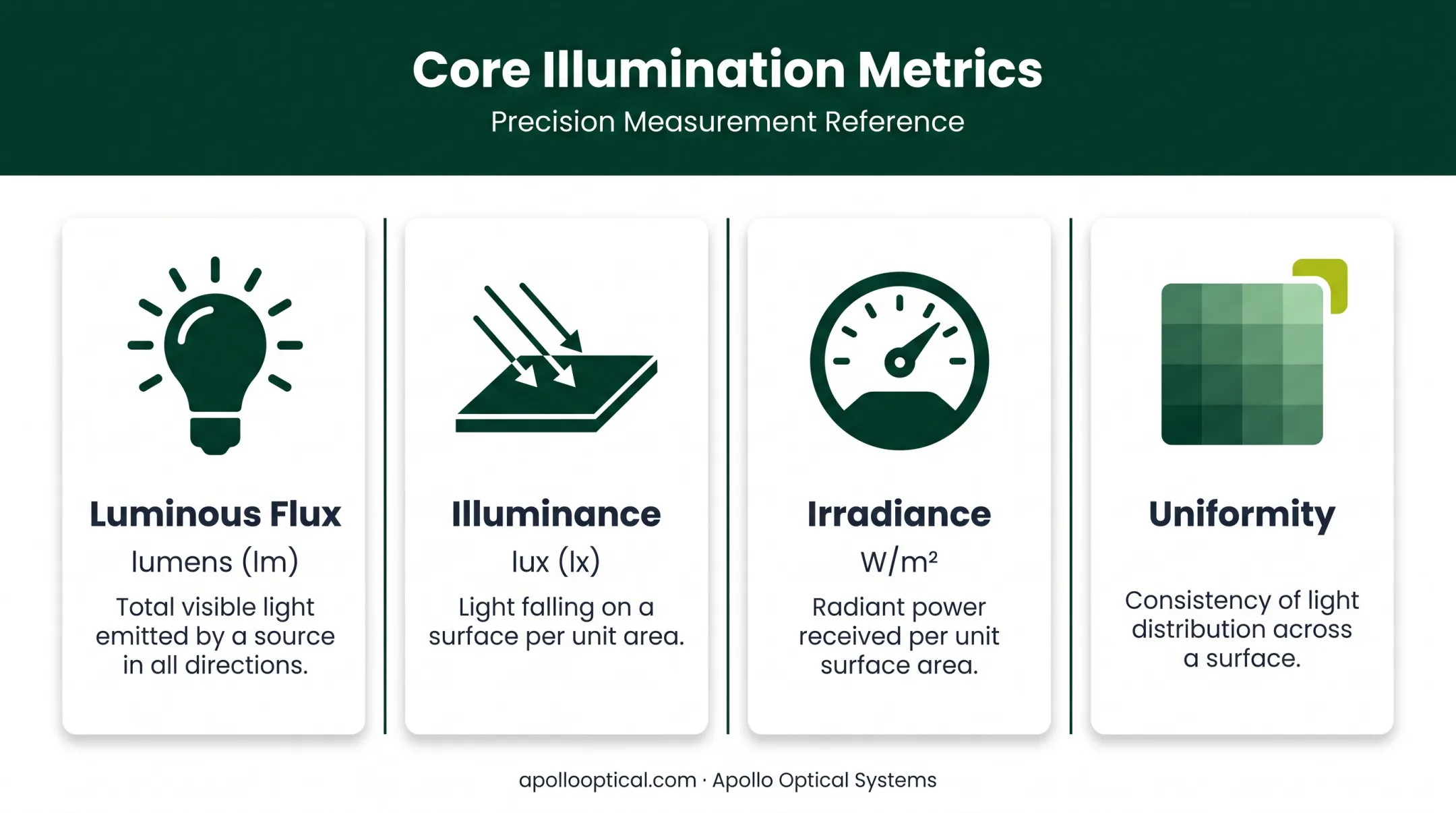

Designers optimize against a handful of core metrics:
| Metric | Plain-language meaning |
|---|---|
| Luminous flux | Total visible light output (lumens) |
| Illuminance | Light landing on a surface (lux) |
| Irradiance | Optical power landing on a surface (W/m²) |
| Uniformity | How evenly light spreads across the target |
An illumination system is an optical system engineered to deliver light in a controlled way, not just incidental brightness from a bulb sitting nearby.
Role of Illumination in Broader Optical Design
Skip illumination design and you get predictable failures: vignetting at the edges of a field, or hot spots that concentrate too much light in one area. Worse, an unwanted image of the filament or LED die can appear on the target surface (a classic problem in early microscope designs).
These aren't just cosmetic issues. Decisions made in week one of a project, including source placement, reflector geometry, and diffuser choice, directly determine what a part costs to manufacture and whether it can scale. Fix illumination problems after tooling is cut, and you're looking at a redesign cycle, not a tweak.
Types of Illumination Systems

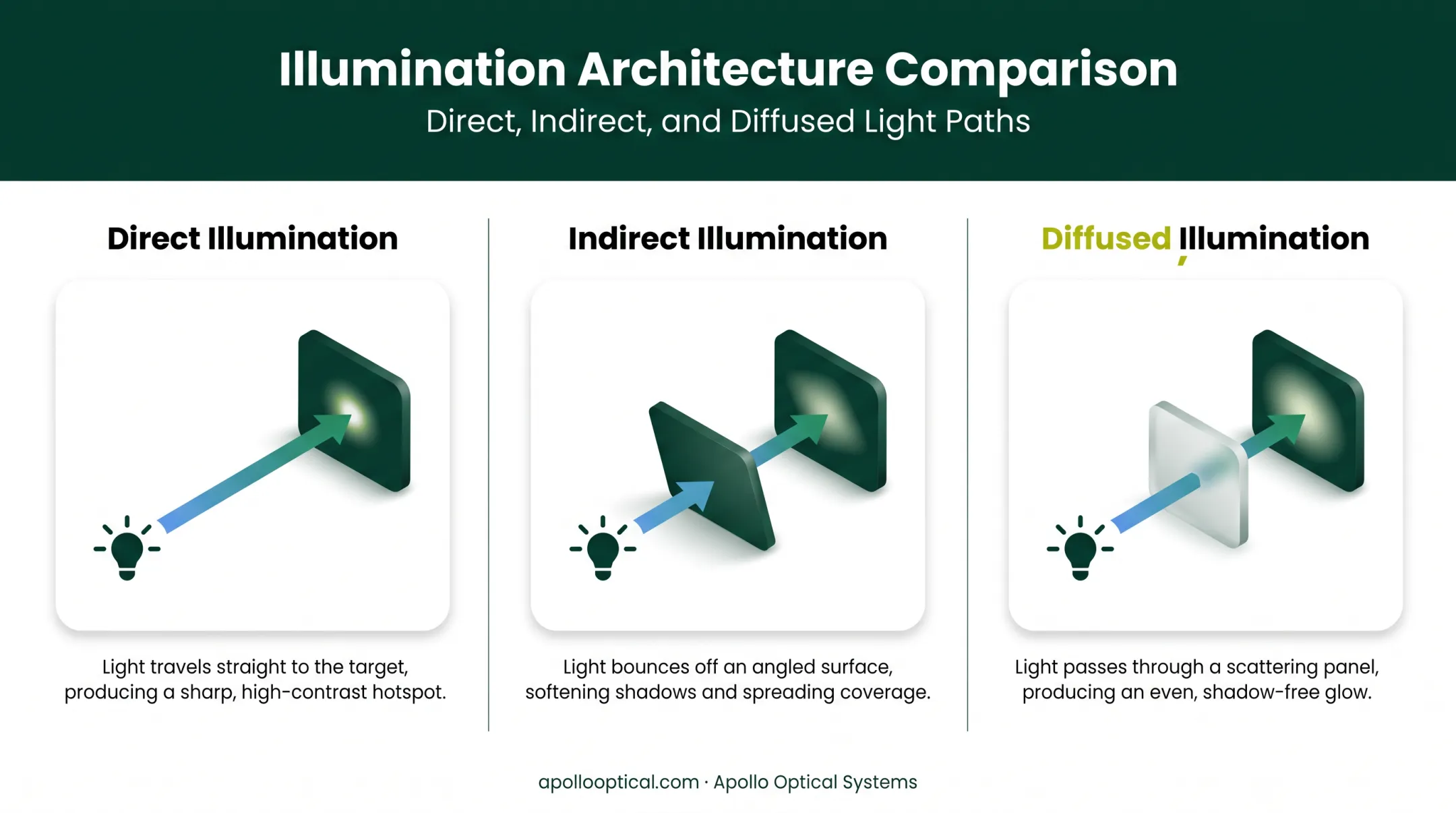

Three broad architectures cover most illumination applications:
- Direct illumination — light travels straight from source to target. Preserves intensity and directionality but risks hot spots.
- Indirect illumination — light bounces off a surface before reaching the target, spreading the path and softening harsh spots.
- Diffused illumination — a scattering element spreads light, trading peak brightness for spatial evenness. Diffused LED lighting is often used to avoid uneven glare on reflective surfaces.
Koehler illumination is widely used in microscopy. It uses two diaphragms and a collector lens system to project an enlarged image of the source into the condenser's aperture plane, rather than focusing that source image directly onto the sample.
ZEISS traces the technique back to 1893. It remains a preferred approach for glare-free, uniform sample lighting.
Which type you choose depends on the application:
- Need maximum intensity with tight beam control? Direct illumination.
- Need to eliminate glare on a shiny surface? Diffused or indirect.
- Need independent control of field coverage and illumination angle? Koehler-style geometry.
Core Design Considerations and Process
Good illumination design follows a consistent workflow, whether you're building a flashlight optic or a diagnostic instrument.
Two decisions shape the system before detailed modeling begins:
- Source selection and positioning — LED or laser diode placement, orientation, and spectrum set shadowing behavior and coverage before a single reflector is drawn
- Optical shaping elements — reflectors, lenses, and freeform optics redirect light; freeform surfaces hit non-symmetric target distributions beyond a simple lens or reflector
Efficiency and Thermal Management
Wasted light usually becomes wasted heat. LED output degrades as junction temperature rises—a recoverable but real performance hit.
Cree's thermal guidance emphasizes designing the full heat path, LED to board to sink, before locking in optical performance. Skip this step and your bench prototype will underperform once it's running warm in an enclosure.
Simulation-to-Prototype Workflow

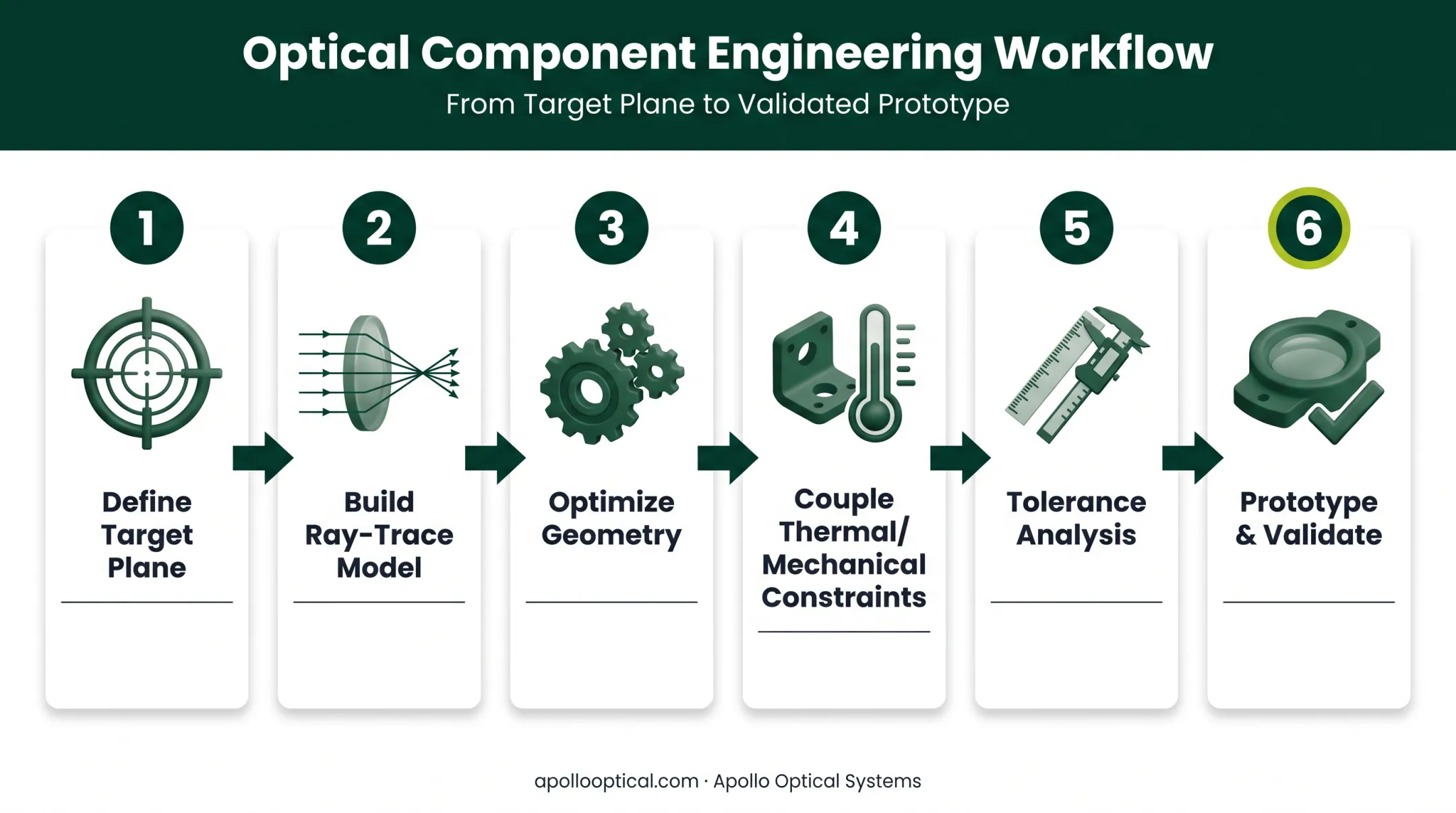

The typical path looks like this:
- Define the target plane and the measurable distribution required
- Build a non-sequential ray-trace model covering source, optics, housing, and target
- Optimize geometry against the target metric
- Couple results with thermal and mechanical constraints
- Run tolerance analysis before cutting any tooling
- Prototype and validate against the original spec
Apollo Optical Systems' design teams work in ZEMAX®, CODE V®, and OSLO® for this stage, folding tolerance analysis and mechanical integration in before a design ever reaches prototyping. That sequencing matters: catching a manufacturability issue in simulation costs nothing. Catching it after molds are cut costs weeks.
Manufacturability can't be an afterthought. Tolerances, material behavior, and coating durability belong in the design conversation from day one—not as a checklist after the optics "work" in simulation.
Industry Applications of Illumination System Design
Illumination engineering looks different depending on the vertical, though the underlying principles hold steady.
Medical & Life Sciences
Diagnostic and surgical devices demand uniform, glare-free light where accuracy is critical. Applications span endoscopes, ophthalmology, analytical instrumentation, and robotic surgery. Polymer LED lenses and beam shapers are common building blocks here: lightweight and low-cost, yet precise enough for clinical use.
Defense, Aerospace & Tactical
Ruggedized optics need to perform in extreme conditions without drifting off-spec. This includes:
- Engineered reading lights and floor emergency-lighting systems for aircraft interiors
- Compound parabolic reflectors for high-power landing lights
- Tactical-flashlight optics designed to optimize beam pattern and focus
Automotive & Industrial
Photometric compliance is mandatory in this space, governed in the US by FMVSS 108 and SAE color standards. LED reflector systems handle head/tail lights, back-up lighting, and interior illumination. Substrate-guided light pipes are increasingly common for sensor and signal applications.
Consumer & Display Technology
Backlighting and display illumination need uniform brightness and consistent color across the panel. Even small variances get noticed by end users immediately.
From Simulation to Scalable Manufacturing
Here's where good illumination designs go to die: the handoff from simulation to production. A ray-trace model that performs beautifully on a screen doesn't automatically translate into a part that molds consistently, holds tolerance across a production run, or survives a coating durability test.
Common friction points:
- Material behavior shifts between prototype blanks and full injection-molded production runs
- Coating adhesion and durability that pass on a bench sample but fail under real-world thermal cycling
- Tolerance stack-up across source position, housing fit, and diffuser seating that a single-part tolerance check misses entirely

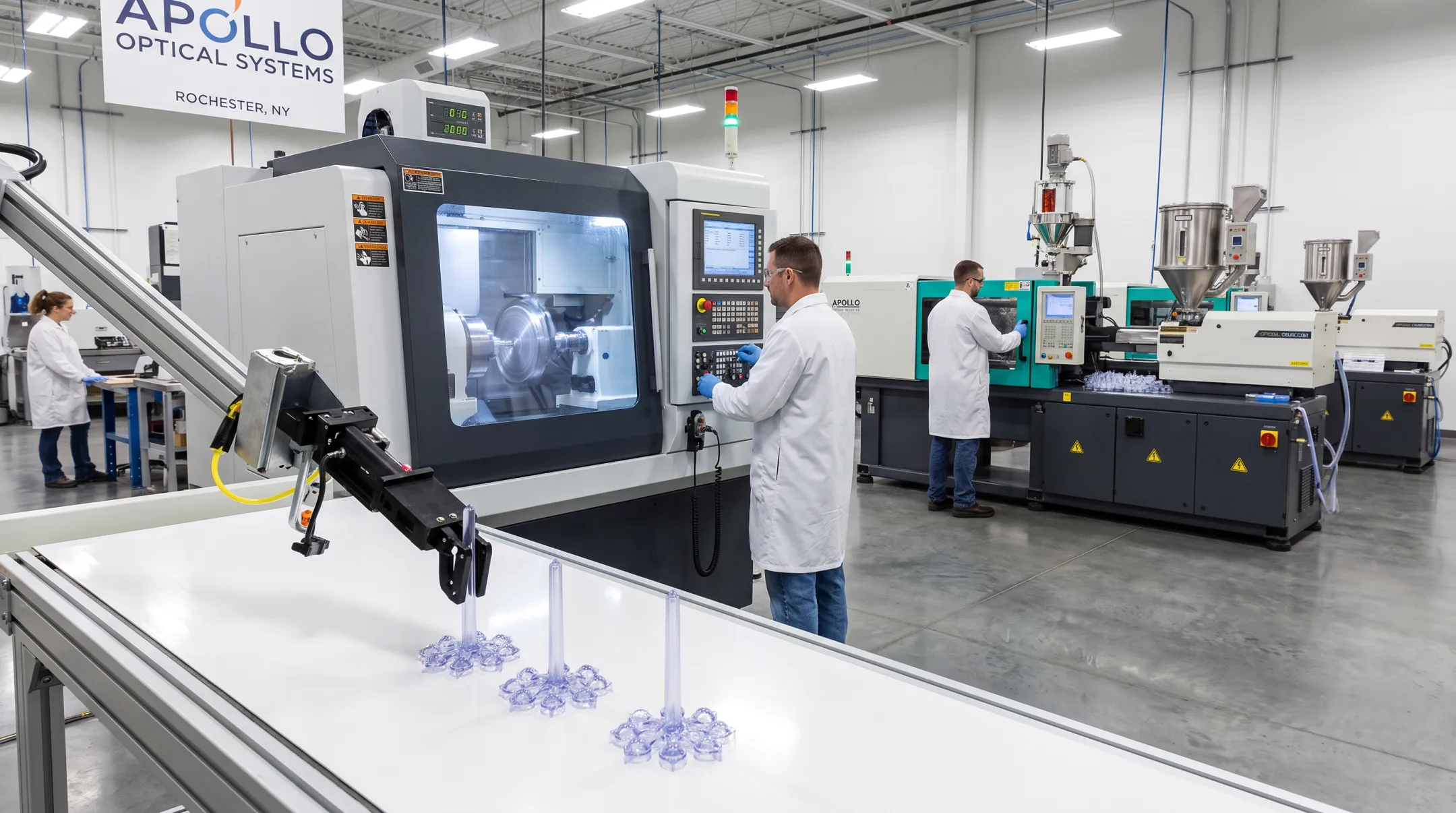

Apollo Optical Systems closes that gap in a 21,000 sq. ft. facility in Rochester, NY. The team pairs single-point diamond turning (finishes down to 13 Å RMS in nickel) with polymer injection molding that scales from rapid prototypes to millions of molded parts.
Design-for-manufacture reviews start early. Diamond-turned prototype blanks are molded or annealed with the same processes used for production optics, so what works on the bench keeps working on the line.
Metrology with tools like Zeiss CMM systems and Zygo interferometers checks dimensional accuracy, surface roughness, and coating quality before parts ship. Keeping design, molding, coating, and verification under one roof turns a validated illumination design into a repeatable production part.
Frequently Asked Questions
What is an illumination system?
It's an optical system engineered to deliver light in a specific pattern, intensity, or distribution for a target application, rather than forming an image. Think LED optics, light guides, and reflectors designed for controlled light delivery.
What are the three types of illumination?
Direct, indirect, and diffuse illumination. Direct aims light straight at the target for maximum intensity; indirect bounces it off a surface first; diffuse scatters it for uniform, glare-reduced lighting.
What is the role of illumination in design?
Illumination design ensures light output supports the function, safety, and visual quality of a product. Poor illumination design causes hot spots, glare, and vignetting that undermine the entire system.
How is illumination system design different from lens design?
Lens design optimizes for accurate image formation; illumination design optimizes for controlled, efficient light distribution with no image involved. They use overlapping tools but different success metrics.
What software or tools are used for illumination system design?
Ray-tracing and optical simulation tools model light behavior, including scattering, reflection, and thermal effects, before any physical prototype gets built. Common examples include LightTools, TracePro, and Zemax OpticStudio in non-sequential mode.
Why does manufacturability matter in illumination system design?
Overlooking tolerances, materials, and coating durability early creates performance gaps once a design moves to volume production. Catching these issues in simulation is far cheaper than redesigning after tooling is cut.
