Plastic Optics Molded and Aspheric Lenses for Precision

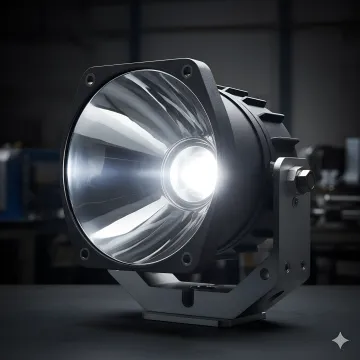

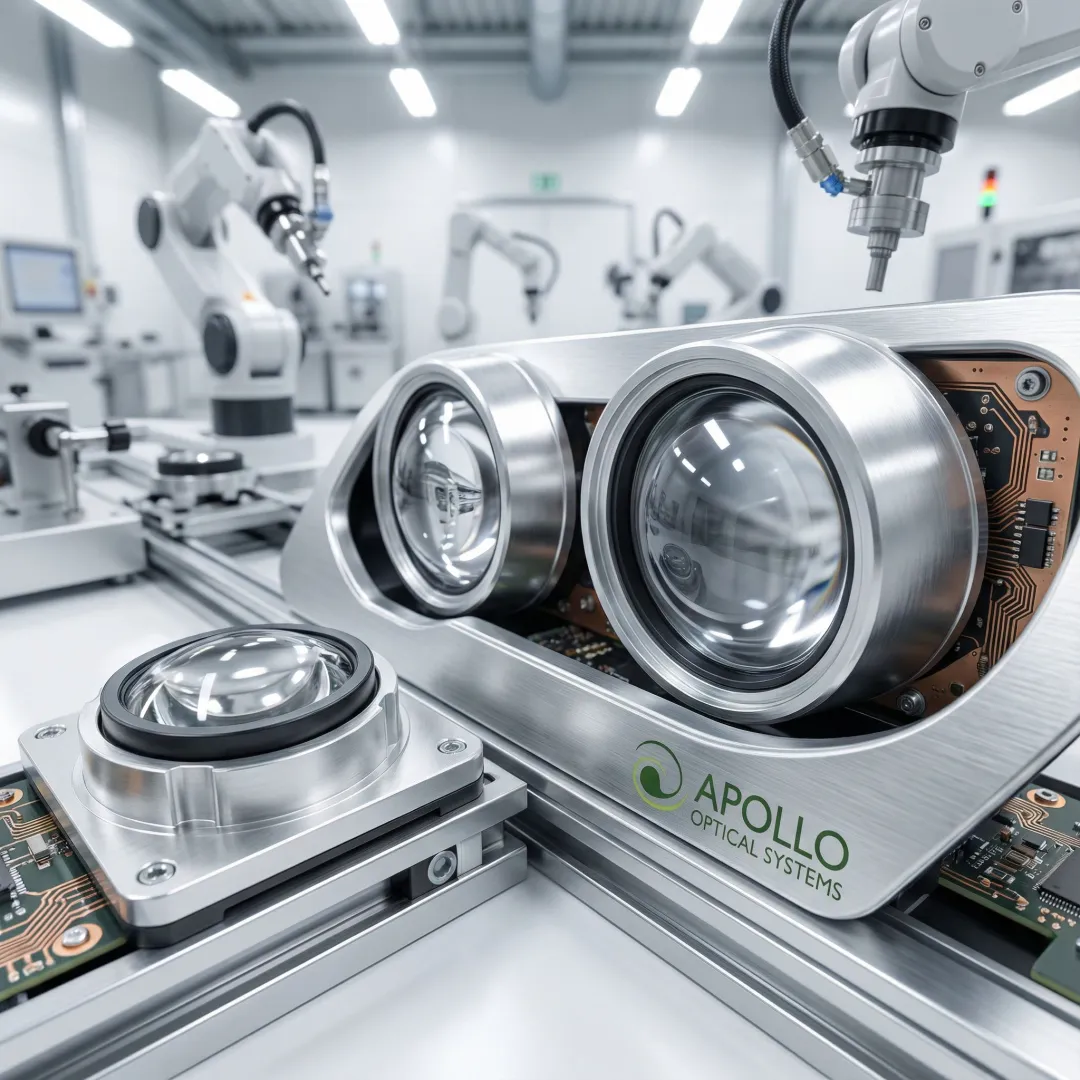

We achieve concentricity from ±0.002mm to ±0.025mm and surface roughness <50Å RMS depending on manufacturing method. Polymer optics offer advantages over glass in many applications: reduced weight, integration of mounting features, complex geometry capability, cost efficiency at scale, and impact resistance. These characteristics make plastic optics common in automotive systems, sensing platforms, lighting assemblies, industrial equipment, and consumer optical devices. However, polymer introduces behaviors that must be engineered around.

Yes, we offer comprehensive optical and mechanical design, verification, tolerance analysis, and design for manufacturability services. Unlike glass, polymers expand more with temperature, retain residual molding stress, creep under sustained load, may yellow under UV exposure, and are sensitive to processing conditions. If not properly managed, these behaviors can affect focal stability, beam shaping, uniformity, alignment, and cosmetic appearance. Plastic optics require design strategies that respect material movement.

We are ISO 13485-2016 certified for medical device quality management and manufacturing requirements. Injection molding creates flow orientation, stress gradients, and cooling imbalance. Residual stress may cause birefringence, refractive distortion, stress whitening, and long-term cracking. Gate location, flow path, cooling control, and packing pressure are optical decisions — not just mechanical ones.

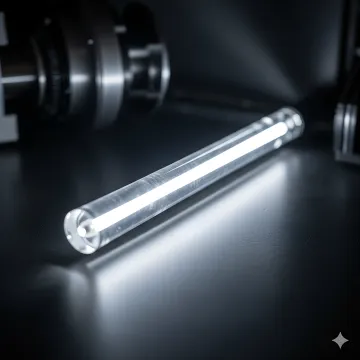

Yes, we use single-point diamond turning for prototypes and injection molding for high-volume production runs. All polymers shrink during cooling. If shrink behavior is not modeled and controlled, optical surfaces can distort, geometry can shift, alignment may drift, and light distribution can change. Long components such as light guides or windows are especially sensitive. Dimensional precision must account for real-world material behavior.

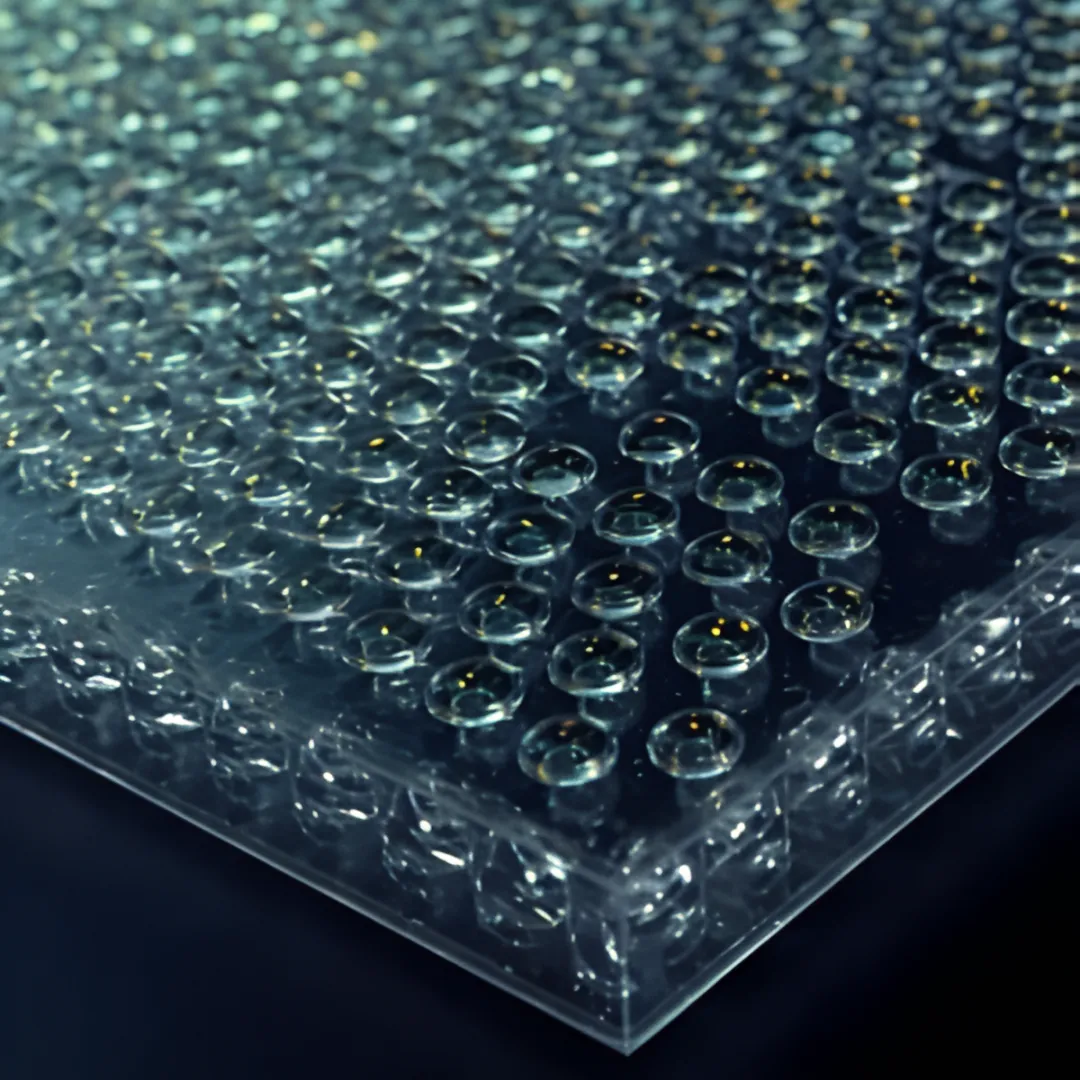

We manufacture spherical, aspheric, Fresnel, diffractive, freeform, and specialized optical surfaces for various applications. Micro-textures, prismatic features, and fine optical surfaces depend on mold insert precision, temperature control, balanced venting, and consistent melt behavior. Tool wear changes optical performance. Process drift changes optical performance. Plastic optics require optical-grade tooling and disciplined production monitoring.

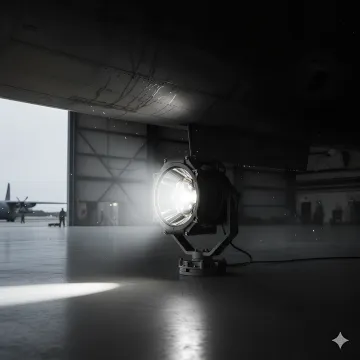

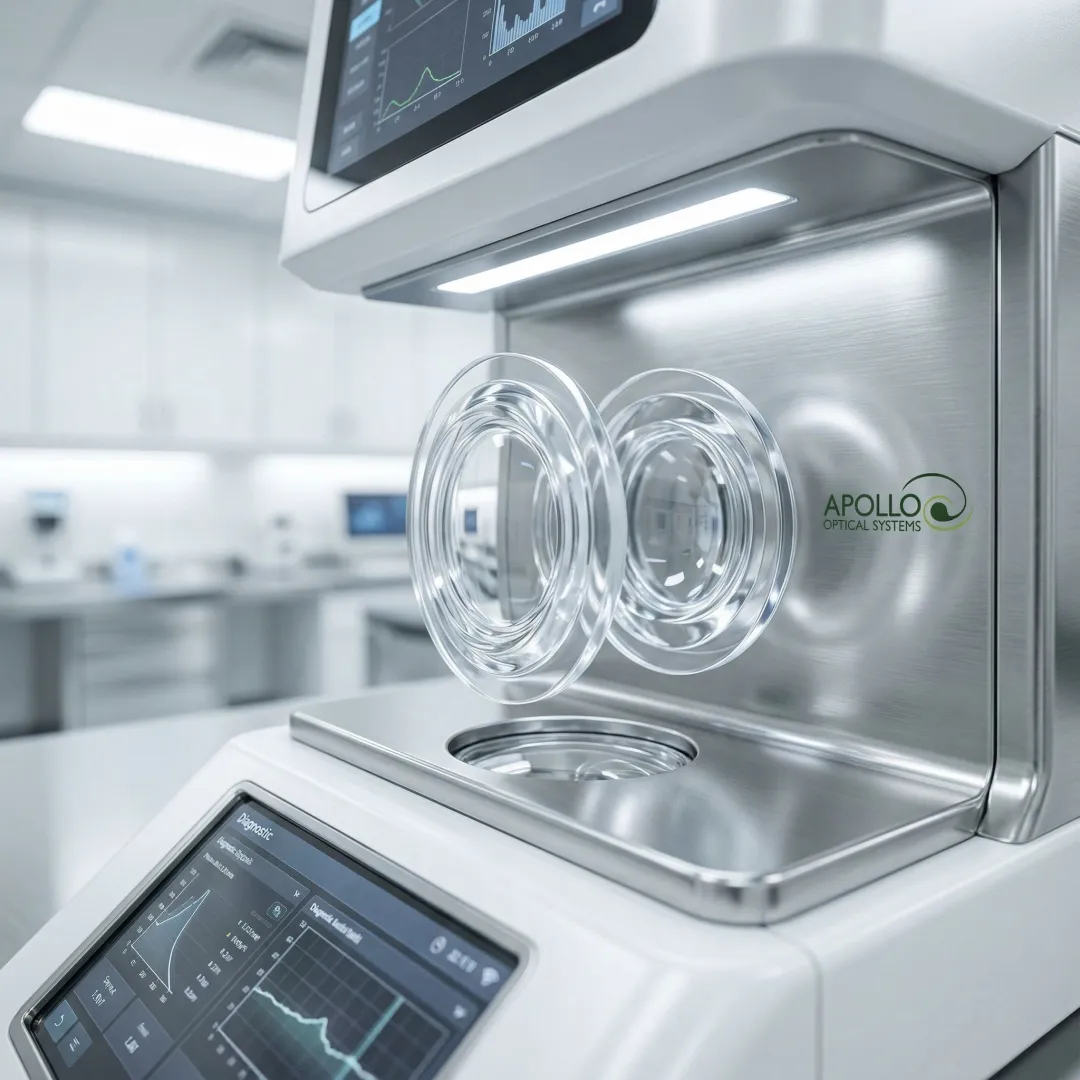

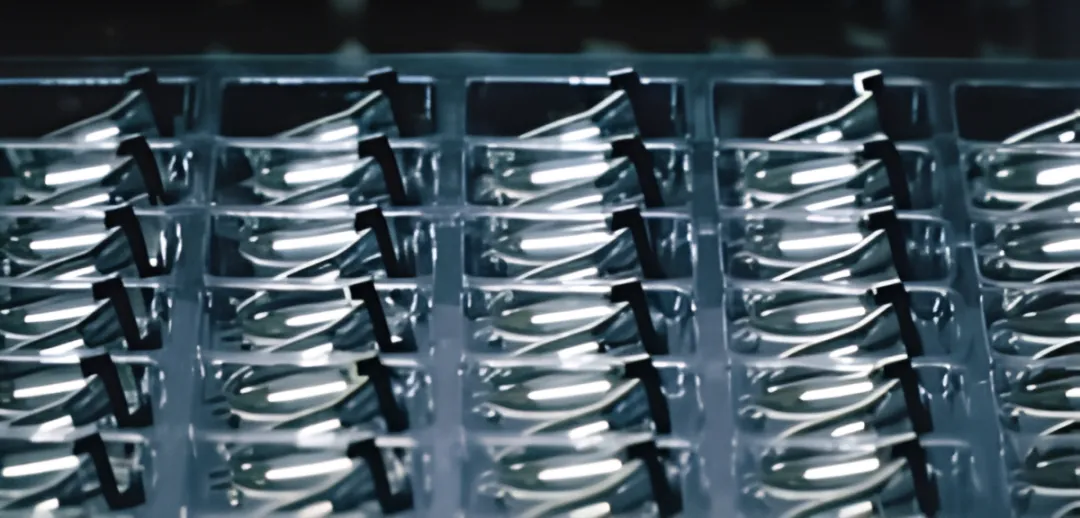

We serve medical devices, automotive, VR/AR, aerospace, lighting, defense, and consumer electronics industries worldwide. Polymer may not be ideal when extreme thermal stability is required, dimensional tolerances allow no movement, long-term creep must be near zero, or environmental exposure is severe. Glass or hybrid solutions may provide better stability in such cases. Material selection must reflect performance and lifecycle requirements.

Many plastic optical components perform well in early sampling. Production ramp introduces resin lot variability, tooling wear, cycle time pressure, cooling imbalance, and parameter drift. If the design is overly sensitive to variation, yield decreases and performance shifts. Stable plastic optics require wide enough process windows, controlled molding parameters, disciplined tool maintenance, and tolerance allocation based on optical sensitivity.

Rather than asking 'Can this be molded in plastic?', experienced teams ask: How sensitive is performance to shrink variation? How is residual stress measured and controlled? What is the creep profile at operating temperature? How stable is surface replication over tool life? How wide is the acceptable process window? These questions define whether plastic optics will hold in production.
