Custom LED Optics Design and Manufacturing

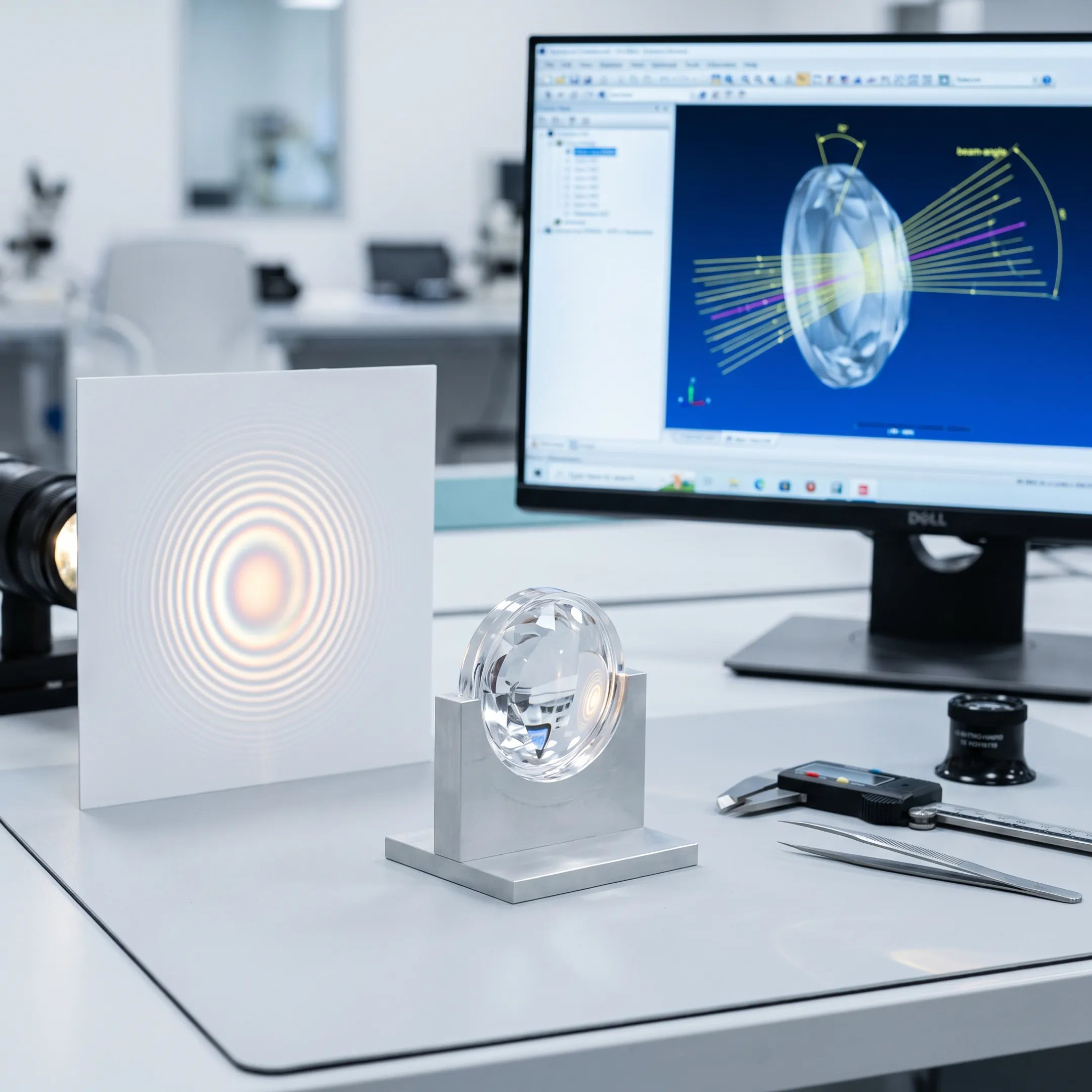

Custom LED optics design is the engineering of lenses, reflectors, diffusers, light guides, or microstructured surfaces that shape light from a particular LED source. The work considers beam angle, uniformity, intensity distribution, color appearance, working distance, thermal conditions, mechanical interfaces, material behavior, and manufacturability. A custom approach helps the optic perform as part of the complete illumination system rather than as an off-the-shelf compromise.

Apollo Optical Systems supports optical design for imaging and non-imaging illumination systems, including beam-shaping optics, laser, and LED systems. For illumination projects, the team evaluates how light should be distributed at the target plane and develops surfaces accordingly. Optical and mechanical design capabilities are coordinated so mounting, packaging, tolerances, materials, and production constraints are considered alongside optical performance.

Material selection can include optical-grade acrylic, styrene, Zeonex, Zeonor, Ultem, polycarbonate, polyester resins, specialty acrylics, and other engineering polymers. The right choice depends on light transmission, refractive index, birefringence, heat resistance, chemical exposure, moisture resistance, dimensional stability, and cost. Apollo can help compare material tradeoffs against the performance and environmental requirements of the finished LED optical assembly.

Single-point diamond turning is especially useful for custom prototypes, small quantities, and complex optical geometries before production molding. It can create aspheric, diffractive, Fresnel, toroidal, and other precision surfaces in plastics and metals. Injection molding is generally preferred when a validated design requires repeatable, higher-volume production. A design-for-manufacturing review helps determine the most appropriate route for the required volume and performance.

Yes. Apollo provides thin-film coating solutions for plastic components as well as glass, including anti-reflective, filter, mirror, and beamsplitter coatings. Polymer optics require specialized processes because temperature limits differ from glass. Coating requirements should be defined around the operating wavelength range, desired transmission or reflectivity, environmental exposure, substrate material, and the optical surface geometry to ensure the finished component meets system goals.

Verification begins with analysis and optimization of the design, followed by prototype testing against the intended specifications. Apollo’s in-house metrology includes coordinate measurement, optical profiling, microscopy, white-light interferometry, digital interferometry, larger-part interferometry, and polarimetry. These tools help assess surface form, roughness, dimensions, topography, and retardation where relevant, while design verification addresses aberrations and system-level performance risks before production.

Apollo offers assembly services for polymer-based optical products, from one-of-a-kind prototypes to high-volume assemblies. Capabilities include UV-bonded and air-spaced doublets and triplets, multi-element assemblies, glass-plastic hybrids, refractive-diffractive hybrids, opto-medical devices, and opto-electronic devices. Depending on program volume, assembly may use manual setup, semi-automatic fixturing, automation, mechanical assembly, UV bonding, or ultrasonic welding.

Provide the LED source or package details, desired beam pattern, target distance and illuminated area, optical performance requirements, mechanical envelope, operating environment, preferred material if known, estimated annual volume, and project timeline. Existing drawings, CAD files, ray-trace models, samples, and test data are also valuable. This information allows engineering to assess design feasibility, manufacturing method, tolerances, coatings, and validation needs.
