Low-Volume Molded Optics and Minimum Order Quantities

Low-volume injection moulding is the production of a limited quantity of parts using an injection-molding process, typically to support prototyping, design validation, pilot builds, or early market demand. For molded optics, it helps teams assess surface quality, material behavior, optical performance, and assembly fit before committing to a larger production program. Tooling, part geometry, resin choice, and quality requirements shape the most suitable approach.

Minimum order quantities for molded optics are determined by the component’s geometry, optical tolerances, material, tooling approach, coating needs, assembly requirements, and inspection plan. A single universal MOQ does not reflect the engineering realities of precision optics. Early discussion of expected demand and program goals allows the manufacturing path to be evaluated around practical prototype, pilot, and production quantities.

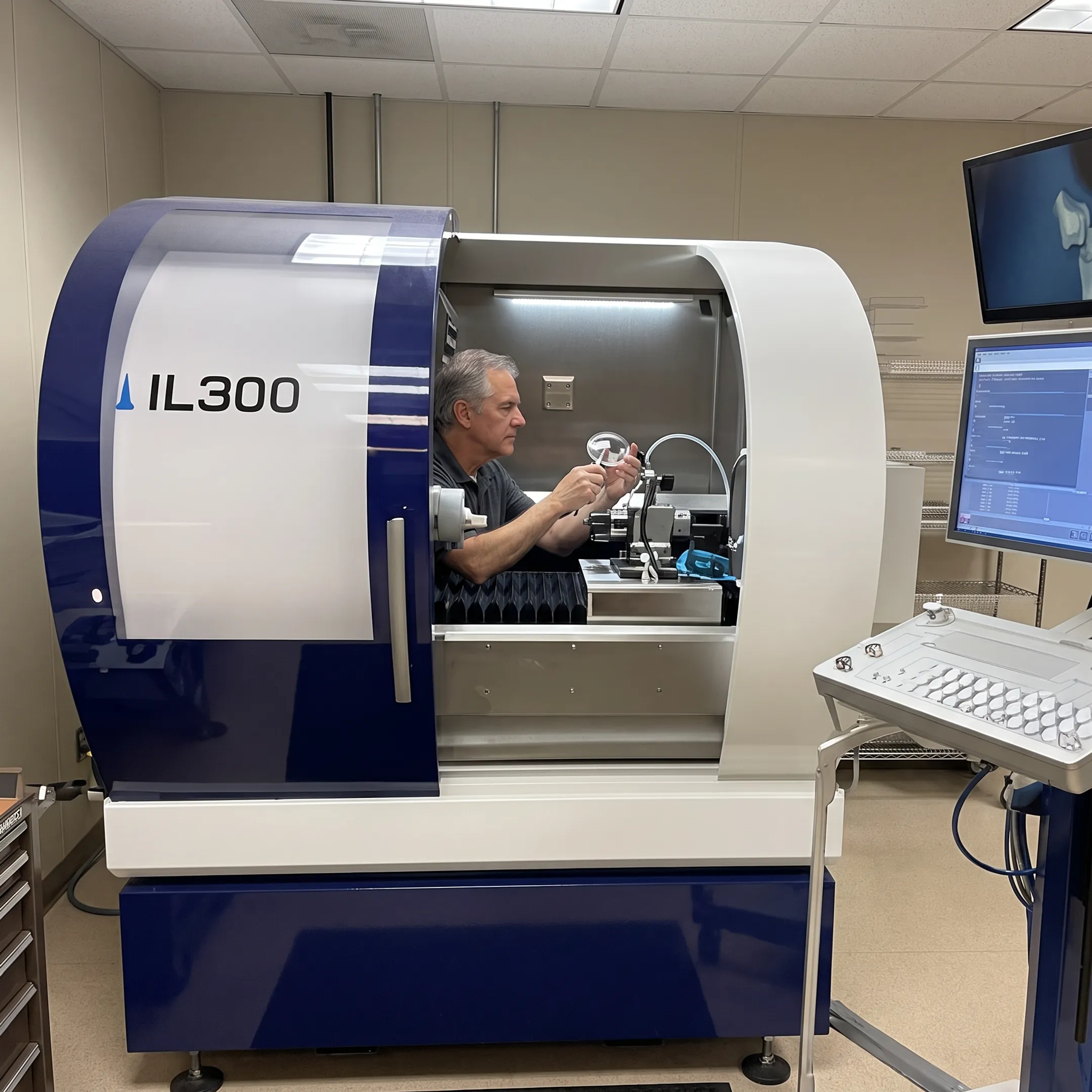

Yes. Single-point diamond turning can fabricate small quantities of custom optical prototypes before production molding. This process can create optical surfaces such as aspheres, Fresnels, diffractives, conics, and spheres in a range of materials. Prototype parts provide a useful opportunity to assess optical performance, mechanical integration, and design assumptions before moving forward with molding-related decisions.

Apollo Optical Systems works with optical-grade polymers including acrylic, styrene, Zeonex, Zeonor, and Ultem, along with specialty materials such as polycarbonate and high-performance resins. Selection should consider light transmission, refractive index, birefringence, moisture resistance, chemical exposure, heat resistance, dimensional stability, sterilization needs, and target cost. The right material depends on the optical system and its operating environment.

A design-for-manufacturing review examines whether an optical and mechanical design can be produced reliably while meeting performance and budget requirements. It can identify concerns involving tolerances, part geometry, material selection, moldability, optical surfaces, assembly interfaces, and inspection requirements. Addressing these factors early helps reduce avoidable development iterations and creates a clearer path from a promising design to a manufacturable component.

Yes. Polymer optics can receive thin-film optical coatings, including anti-reflective, filter, mirror, and beamsplitter coatings for UV, visible, and near-infrared applications. Plastic components require coating processes that account for temperature limitations differently from glass optics. Coating selection should be matched to the required wavelength range, reflectance target, substrate material, surface geometry, and environmental demands.

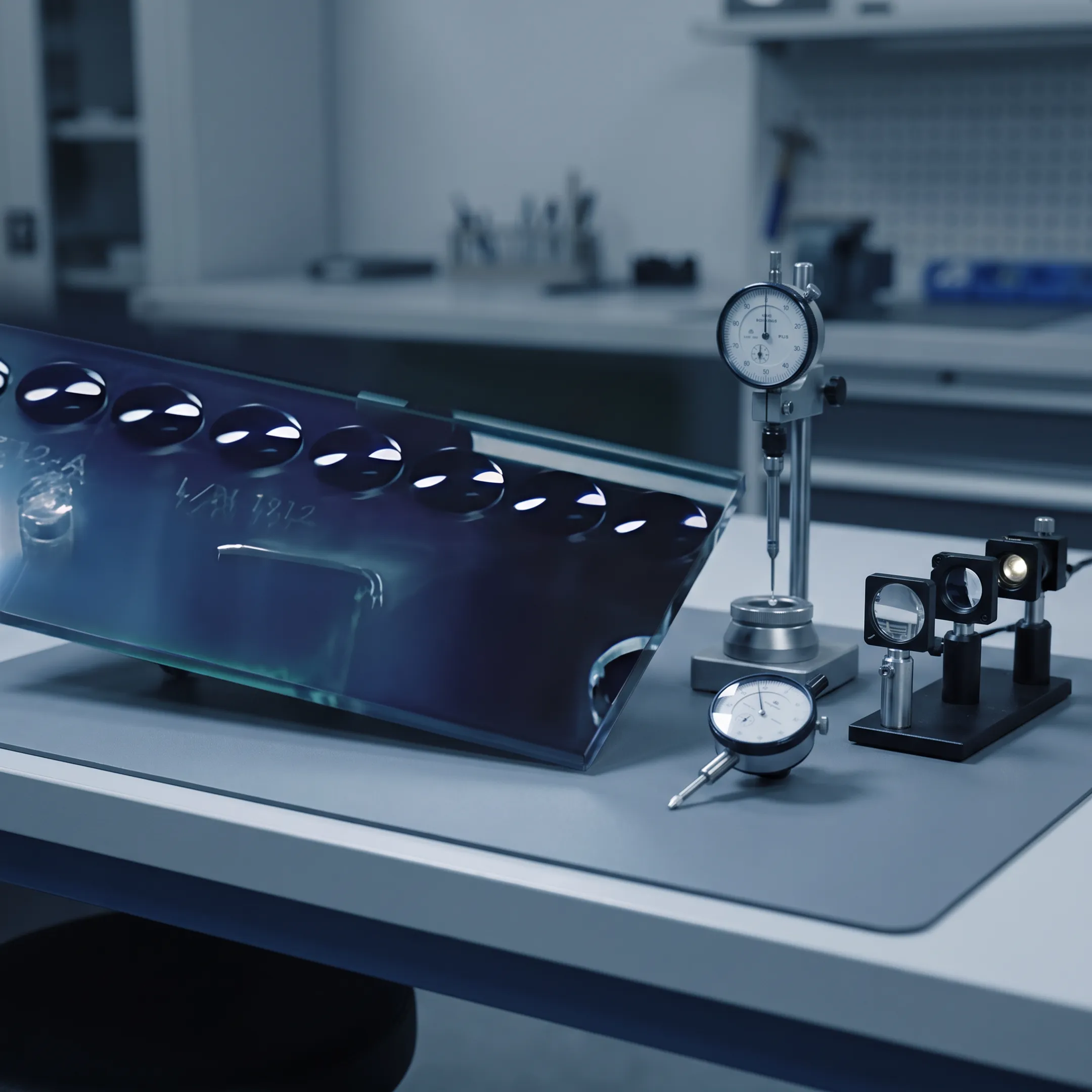

Inspection may include measurement of mechanical dimensions, optical surfaces, roughness, topography, spherical figure, and optical retardation where polarization is critical. Apollo Optical Systems maintains in-house metrology equipment including coordinate measurement, optical profiling, microscopy, white-light interferometry, interferometers, and polarimetry. The appropriate test plan is defined by the component’s performance requirements, tolerances, material, and intended application.

Yes. Apollo provides assembly for polymer-based optical products, from UV-cemented doublets and triplets to multi-element optical systems and opto-medical devices. Available methods include manual prototype setup, semi-automatic fixturing, mechanical assembly, UV bonding, ultrasonic welding, and automation for higher volumes. Assembly planning considers optical alignment, material compatibility, bonding requirements, handling, and the final system’s functional specifications.
