Precision ToF and Depth Camera Optics

Time-of-flight, or ToF, depth cameras measure distance by emitting light and calculating how long it takes for reflected light to return to the sensor. Depending on the architecture, they may use direct pulse timing or phase measurements of modulated illumination. Their optics must efficiently manage illumination, imaging, reflections, alignment, and the wavelength range used by the system.

A ToF camera commonly uses illumination optics to shape and distribute emitted light, receiver or imaging optics to focus reflected light on the sensor, and optical coatings to control reflections. The specific configuration may include refractive lenses, diffractive surfaces, microlens arrays, filters, or hybrid assemblies. Selection depends on field of view, wavelength, working distance, packaging, and signal requirements.

Anti-reflective coatings reduce reflection at optical interfaces within a target wavelength range. In a depth camera, lower reflection can help preserve useful optical throughput and limit stray light that may affect measurements. Coating selection must account for the substrate, intended wavelength band, environmental needs, and manufacturing constraints. Apollo provides thin-film coating solutions for polymer and glass optical components.

Yes. Polymer optics can offer a cost-effective route to complex optical shapes and repeatable production, particularly when injection molding is appropriate. Material selection should consider transmission at the operating wavelength, birefringence, thermal behavior, moisture resistance, dimensional stability, and coating compatibility. Apollo works with optical-grade materials including acrylic, styrene, Zeonex, Zeonor, Ultem, polycarbonate, and specialty polymers.

A practical transition begins with optical and mechanical design review, tolerance analysis, and prototype fabrication. Diamond turning can produce custom surfaces and small quantities for evaluation before molding. Design-for-manufacturing review then aligns performance needs with tooling, material, assembly, coating, and inspection requirements. This approach helps identify manufacturability considerations before a program moves into larger production volumes.

Testing should verify the characteristics most important to the component and system, such as surface figure, roughness, dimensional accuracy, optical retardation, alignment, and coating performance. Apollo’s in-house equipment includes interferometers, a coordinate measuring system, optical profilometry, microscopy, and a polarimeter. Measurement planning is especially important where tight tolerances or polarization-sensitive performance affect depth-sensing results.

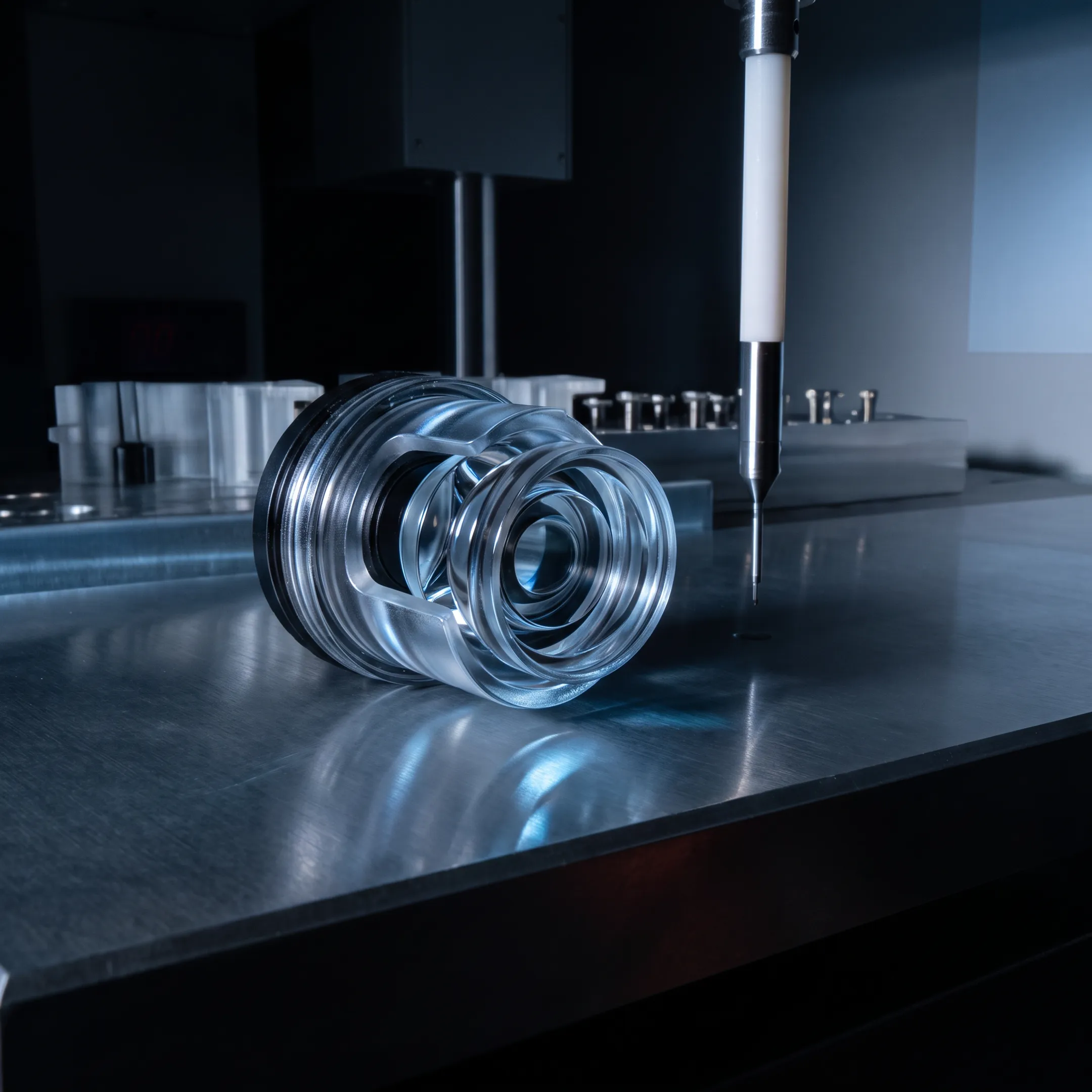

Yes. Apollo provides assembly for UV-bonded doublets and triplets, air-spaced designs, multi-element assemblies, glass-plastic hybrids, refractive-diffractive hybrids, opto-medical devices, and opto-electronic devices. Methods range from manual prototype setup to semi-automatic fixturing and automation for higher volume. Assembly planning considers alignment, bonding, component handling, inspection, and the intended production volume.

ToF and depth-sensing optics are used where systems need spatial information for inspection, navigation, interaction, measurement, or imaging. Relevant markets include industrial and commercial systems, medical and life sciences, automotive, consumer products, lighting, tactical applications, and defense and aerospace. The right optical solution varies with the application’s wavelength, field of view, operating environment, and production objectives.
