Source-Hiding Windows for Driver Monitoring Systems

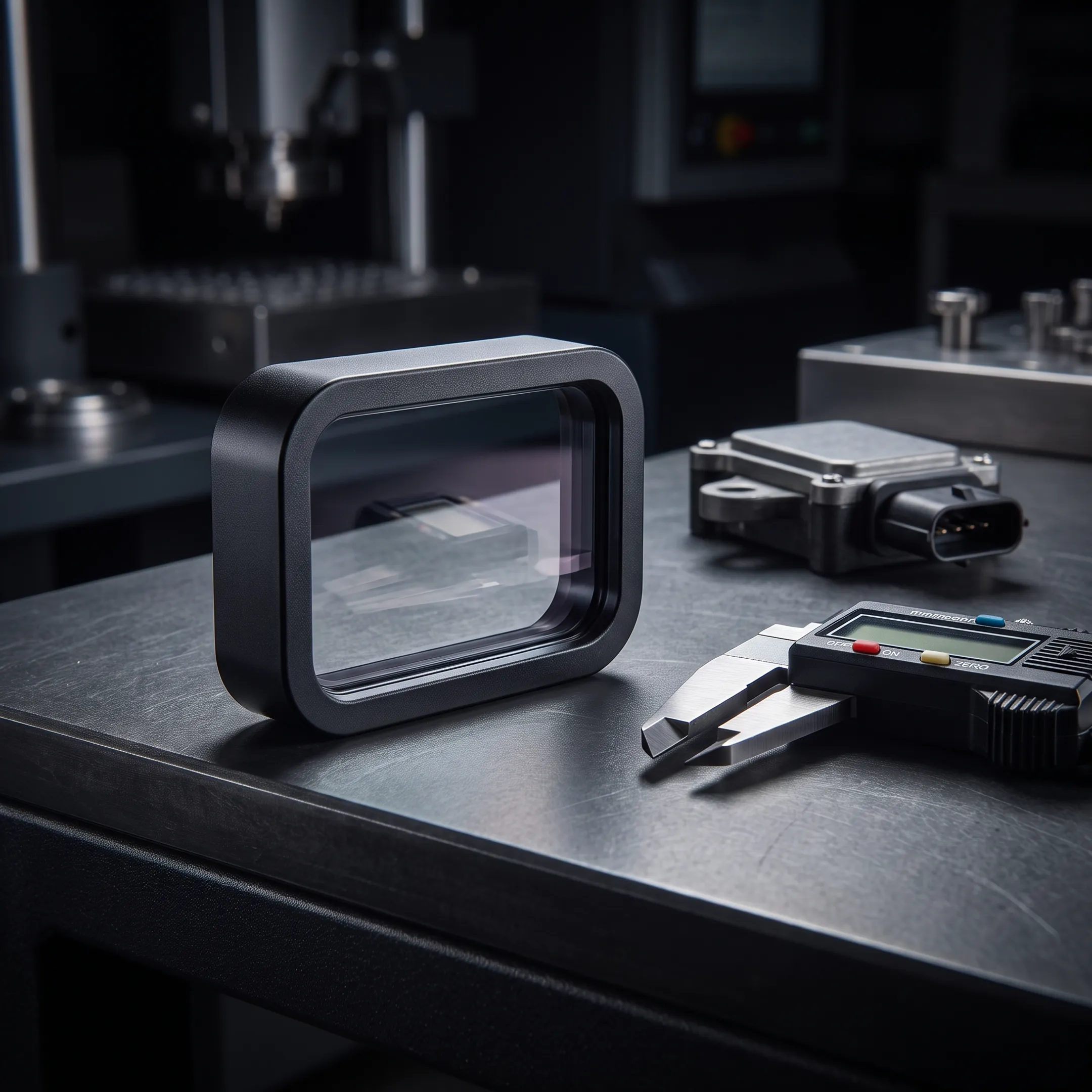

A source-hiding window is an optical component that conceals a camera, illuminator, or sensor behind an interior trim surface while allowing the required light to pass through. In driver monitoring systems, it can help preserve cabin aesthetics while supporting camera visibility and near-infrared illumination. Its geometry, material, coating, surface quality, and placement must be engineered around the sensing path.

Many driver monitoring systems use near-infrared illumination to observe the driver in low-light conditions. A window that looks acceptable in visible light may still reduce transmission, create reflections, scatter light, or introduce distortion at the system’s operating wavelengths. Optical material selection and thin-film coating design should therefore be evaluated against the sensor and illuminator wavelength range.

Yes. Optical-grade polymers can offer useful design flexibility, lower weight, and a practical route to molded production volumes. Apollo works with materials including acrylic, styrene, Zeonex, Zeonor, Ultem, polycarbonate, and specialty resins. Material selection should consider optical clarity, birefringence, heat resistance, moisture behavior, mechanical requirements, appearance, and the specific wavelength performance required.

Anti-reflective coatings reduce unwanted reflected light within selected wavelength ranges. For a concealed sensor or camera, this can help limit ghosting, flare, and signal loss caused by reflections at optical interfaces. Apollo provides thin-film coating solutions for polymer components, including anti-reflective, filter, mirror, and beamsplitter coatings for UV, visible, and near-infrared applications.

Yes. Apollo offers optical and mechanical design, independent design verification, tolerance analysis, and design-for-manufacturing reviews. Early involvement can help identify optical aberrations, assembly constraints, material limitations, tolerance risks, and production considerations before tooling or volume manufacturing decisions are made. This integrated review is especially valuable when appearance and sensor performance must work together.

Single-point diamond turning can produce small quantities of custom optical prototypes before production molding. Apollo’s equipment can machine optical surfaces such as aspheres, diffractives, Fresnels, toroids, spheres, and plano surfaces in polymers and metals. Prototype parts allow teams to evaluate fit, optical function, surface requirements, and integration assumptions before committing to molding tools.

Apollo uses in-house metrology equipment to measure critical optical and mechanical parameters. Available tools include coordinate measurement, optical profiling, microscopy, scanning white-light interferometry, interferometry for spherical parts, and polarimetry for polarization-critical components. Verification plans can be tailored to the part’s tolerances, surface geometry, roughness targets, optical performance needs, and manufacturing stage.

Apollo provides assembly services for polymer-based optical products, from UV-bonded doublets and triplets to multi-element assemblies and hybrid glass-polymer systems. Assembly approaches can include manual prototype setup, semi-automatic fixturing, automation for higher volumes, UV bonding, ultrasonic welding, and mechanical assembly. This capability helps coordinate optical alignment and manufacturability within an integrated component program.
