Beam Shaping Lenses for Laser Systems and Optics

Our manufacturing capabilities range from 1mm to 300mm in diameter for various optical components and beam shaping applications. Beam shaping lenses are evaluated based on angular intensity distribution, uniformity, efficiency, cutoff sharpness, and glare control. Performance depends on surface accuracy, dimensional stability, consistent material refractive index, and alignment within the assembly. Beam shaping is not just optical design. It is optical design under manufacturing variability.

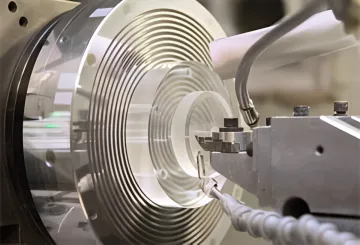

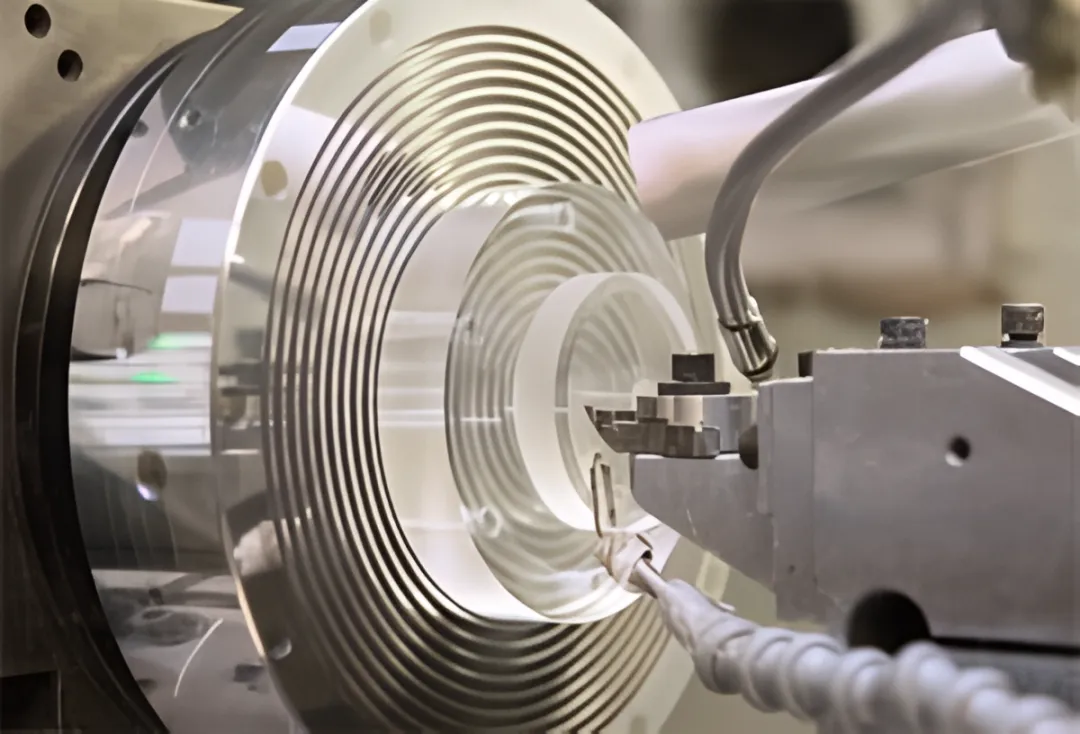

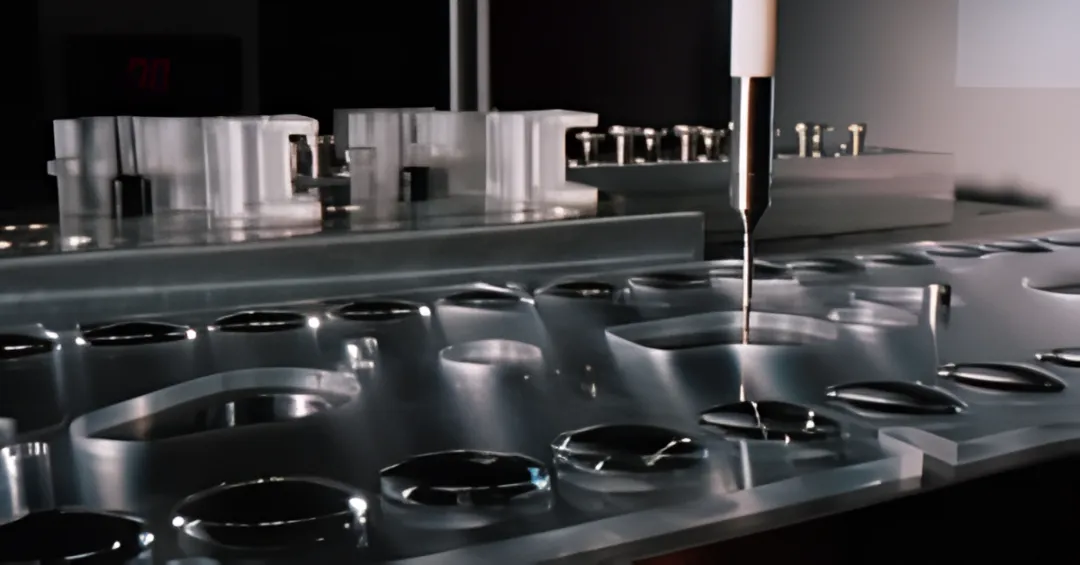

We utilize both single-point diamond turning and precision injection molding depending on volume requirements and specifications. Polymer offers lightweight integration, impact resistance, complex geometry molding, and cost efficiency at scale. But polymer introduces higher thermal expansion, residual molding stress, creep over time, sensitivity to tool wear, and potential refractive index variation with temperature. Beam shape can drift if geometry moves. Material behavior must be accounted for during design.

We achieve surface finishes of 30-75 Å RMS and concentricity tolerances down to 0.002mm with diamond turning. All injection-molded polymers shrink. If shrink compensation is not accurate, surface curvature shifts, focal distance changes, angular output skews, and cutoff lines soften. Long or thin lenses are particularly sensitive to warpage. Beam shaping lenses require shrink modeling based on real molding behavior.

Yes, we offer anti-reflective and reflective thin film optical coatings to enhance performance and reduce losses. Many beam shaping lenses incorporate micro-prisms, light extraction textures, structured surfaces, and hybrid refractive/diffractive geometry. Micro-features are sensitive to tool wear, venting quality, melt temperature, and packing pressure. A few microns of variation can alter angular output noticeably. Tooling must be maintained as optical tooling.

We are ISO 13485:2016 certified for medical device applications and maintain ISO certification for quality management. Injection molding introduces flow orientation, cooling imbalance, and stress gradients. Residual stress may cause refractive distortion, polarization effects, and localized beam irregularities. Stress control is part of optical control.

Yes, we offer complete optical and mechanical design services including design verification and tolerance analysis for custom solutions. Beam shaping lenses often operate under thermal cycling, continuous illumination heat, UV exposure, and mechanical vibration. Polymer movement over temperature can shift beam angle, alter uniformity, and change efficiency. Long-term creep may slightly alter geometry in stressed assemblies. Lifecycle validation must reflect real operating conditions.

Polymer may not be ideal if angular tolerances are extremely tight, temperature stability is critical, long-term creep cannot be tolerated, or environmental exposure is severe. Glass or hybrid optical solutions may offer greater long-term stability in certain systems. Material choice must reflect system constraints.

Beam shaping lenses often pass early validation but struggle in ramp due to process window sensitivity, resin lot variation, tooling wear, cooling imbalance, and slight curvature drift. If the optical design is highly sensitive, small molding variation produces visible beam change. Robust programs include realistic process margins.

Rather than asking 'Can you mold this beam shaping lens?', experienced teams ask: How sensitive is angular output to shrink variation? How is surface geometry verified at production scale? What is the creep behavior under operating temperature? How stable is replication over tool life? How wide is the molding process window? These questions define scalability.
