NIR Bandpass Polymer Windows for IR Sensing

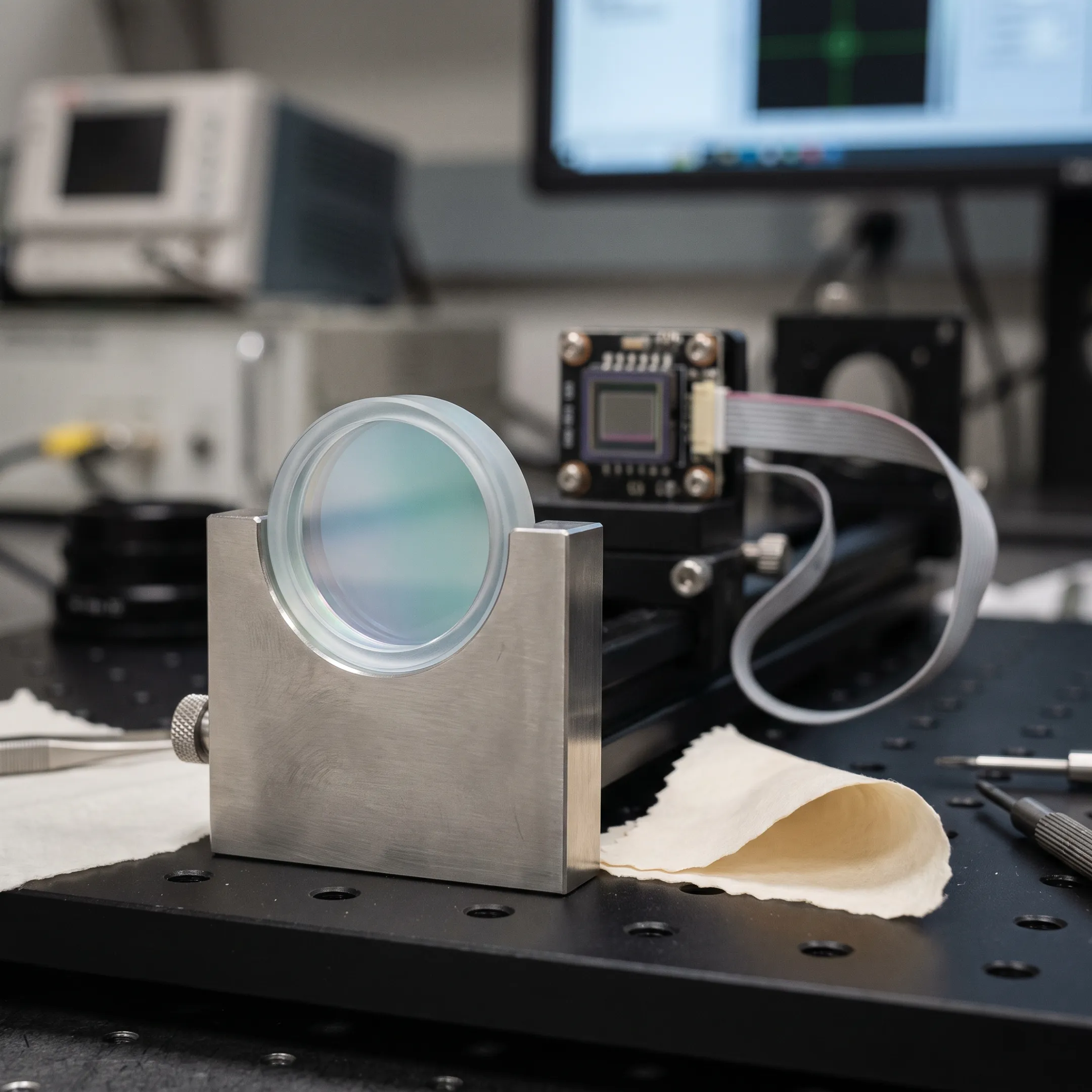

An NIR bandpass polymer window is an optical polymer component designed to transmit a selected near-infrared wavelength range while reducing unwanted wavelengths. Its performance depends on the polymer substrate, window geometry, surface quality, and thin-film coating design. These windows can serve as protective and functional elements in IR sensing assemblies where spectral selectivity and system integration matter.

Polymer can offer advantages in weight, shape freedom, part integration, and high-volume manufacturability. Injection molding can enable complex features and repeatable production that may be difficult or costly with conventional glass processing. Material selection remains important because transmission, birefringence, environmental resistance, thermal behavior, and coating compatibility must suit the sensing application’s operating conditions.

Yes. Thin-film optical coatings can be applied to polymer optics, including anti-reflective, filter, mirror, beamsplitter, and custom spectral coatings. Polymer coating processes require careful control because polymers have different temperature limitations than glass. Coating design should be evaluated alongside the selected substrate, wavelength range, part geometry, adhesion needs, and environmental requirements.

A productive starting package includes the desired wavelength band, angle of incidence, transmission and blocking targets, window dimensions, aperture, surface specifications, operating environment, expected volume, and integration constraints. If a design already exists, Apollo can perform design verification and tolerance analysis. Early details on assembly, packaging, and regulatory or reliability requirements also support better manufacturing decisions.

Thickness, wedge, surface figure, roughness, aperture placement, and coating uniformity can all affect optical behavior. In an IR sensing system, tolerance variation may influence transmitted signal, reflections, alignment, or image quality. Optical and mechanical requirements should be considered together, then tested against manufacturing capability. A tolerance analysis helps balance required performance with realistic, cost-conscious production controls.

Yes. Apollo’s single-point diamond turning capabilities can fabricate small quantities of custom optical prototypes before production molding. This provides an opportunity to evaluate geometry, fit, and optical performance before committing to scalable tooling. Design-for-manufacturing review, coating development, metrology, and assembly planning can also be incorporated to help ensure the prototype strategy informs the production path.

Inspection can include mechanical measurement, optical surface profiling, interferometry, microscopy, roughness and topography measurement, and polarization-related testing when applicable. Apollo maintains in-house metrology equipment for confirming critical part parameters. The appropriate test plan is determined by the component’s optical function, tolerance requirements, material, coating, system integration, and the specific performance characteristics that must be verified.

Apollo supports programs ranging from one-of-a-kind assemblies and prototype parts to production volumes reaching hundreds of thousands per month for applicable assembly configurations. The best fabrication route depends on part geometry, material, optical tolerances, coating requirements, and forecasted demand. Early production planning helps determine whether diamond-turned prototypes, injection molding, automation, or semi-automatic fixturing is appropriate.
