Engineers searching for opto-mechanical design guidance often hit the same wall: optics and mechanical engineering are taught as separate disciplines, but real products demand both working in lockstep. This guide bridges that gap. We'll cover what opto-mechanical systems actually are, the core design steps, real-world mechanisms, emerging trends, and how to pick a manufacturing partner who can carry a design from concept to production.
Key Takeaways
- Opto-mechanical design keeps optics aligned under thermal, structural, and dynamic stress
- Getting it right requires constant back-and-forth between optical and mechanical teams, not a handoff
- Defense sights, endoscopes, and automotive sensors each demand different tolerance stacks
- Design-through-assembly partners cut integration risk and speed development
What Is an Opto-Mechanical System?
An opto-mechanical system combines optical elements — lenses, mirrors, filters, prisms — with the precision mechanical housings, mounts, and structures that hold them in position. SPIE defines optomechanical design as the sub-discipline that turns optical prescriptions into physical, working instruments.
Optical design covers light-path performance — how rays bend through glass or polymer to form an image. Opto-mechanical design covers whether that path still works after the system is dropped, heated, vibrated, or assembled by a technician on a Tuesday.
Why Mechanical Factors Wreck Optical Performance

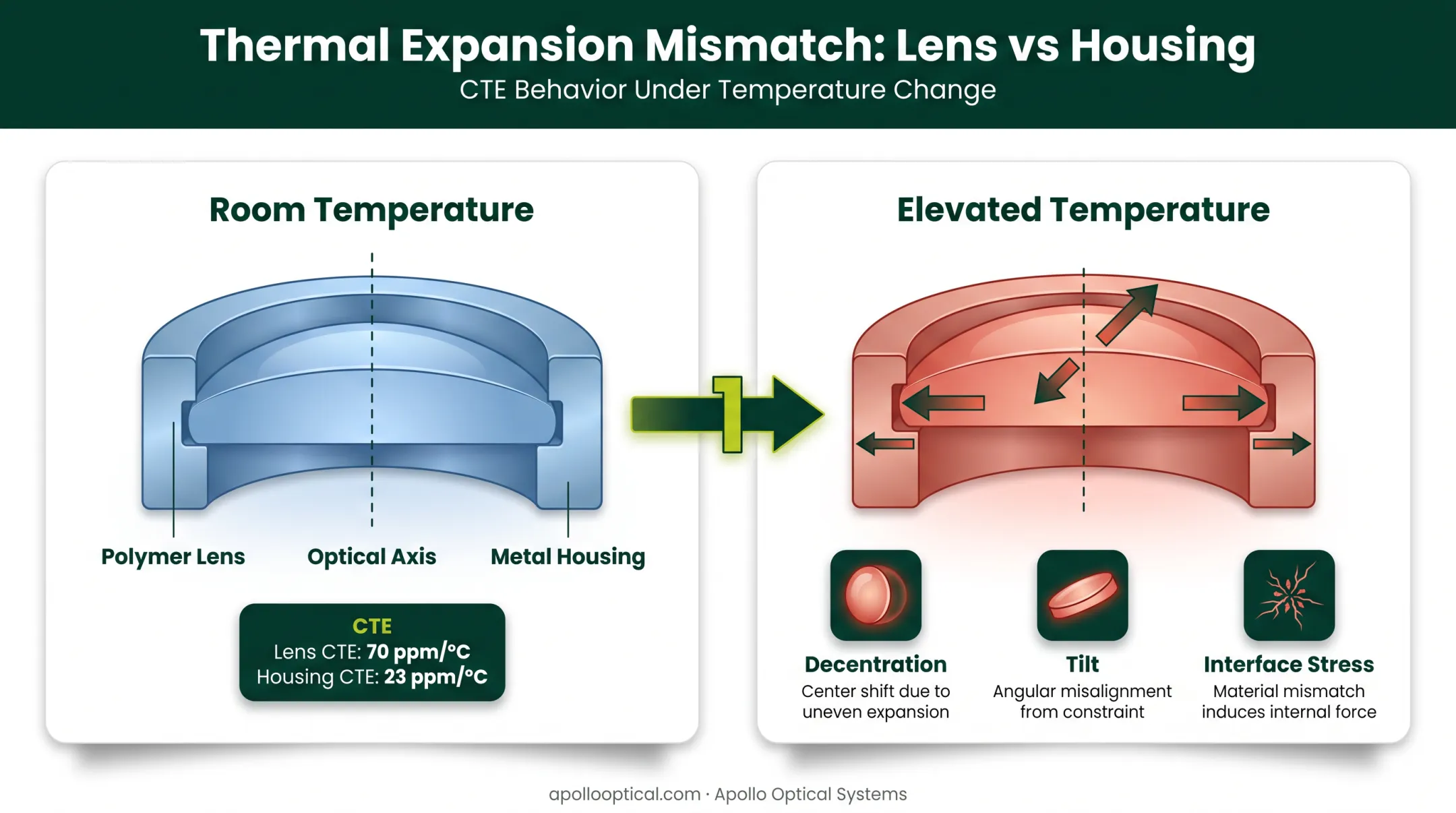

Thermal expansion, vibration, stress, and gravity act on the mechanical structure first, then transfer into the optics. A common failure case: a lens and housing with mismatched coefficients of thermal expansion (CTE) grow or shrink at different rates as temperature changes.
Ansys' modeling documentation shows mounts expand radially and axially with temperature. When mount and lens CTEs diverge, semi-diameters change at different rates and can cause:
- Interface stress on the optic
- Decentration or tilt in the clear aperture
- Cracked elements in severe cases
Polymers make the mismatch obvious. PMMA sits near 6.74 × 10⁻⁵ cm/cm/°C; polycarbonate runs 6.6–7.0 × 10⁻⁵. Pair either with a metal housing that expands differently, and you get misalignment no optical redesign will fix.

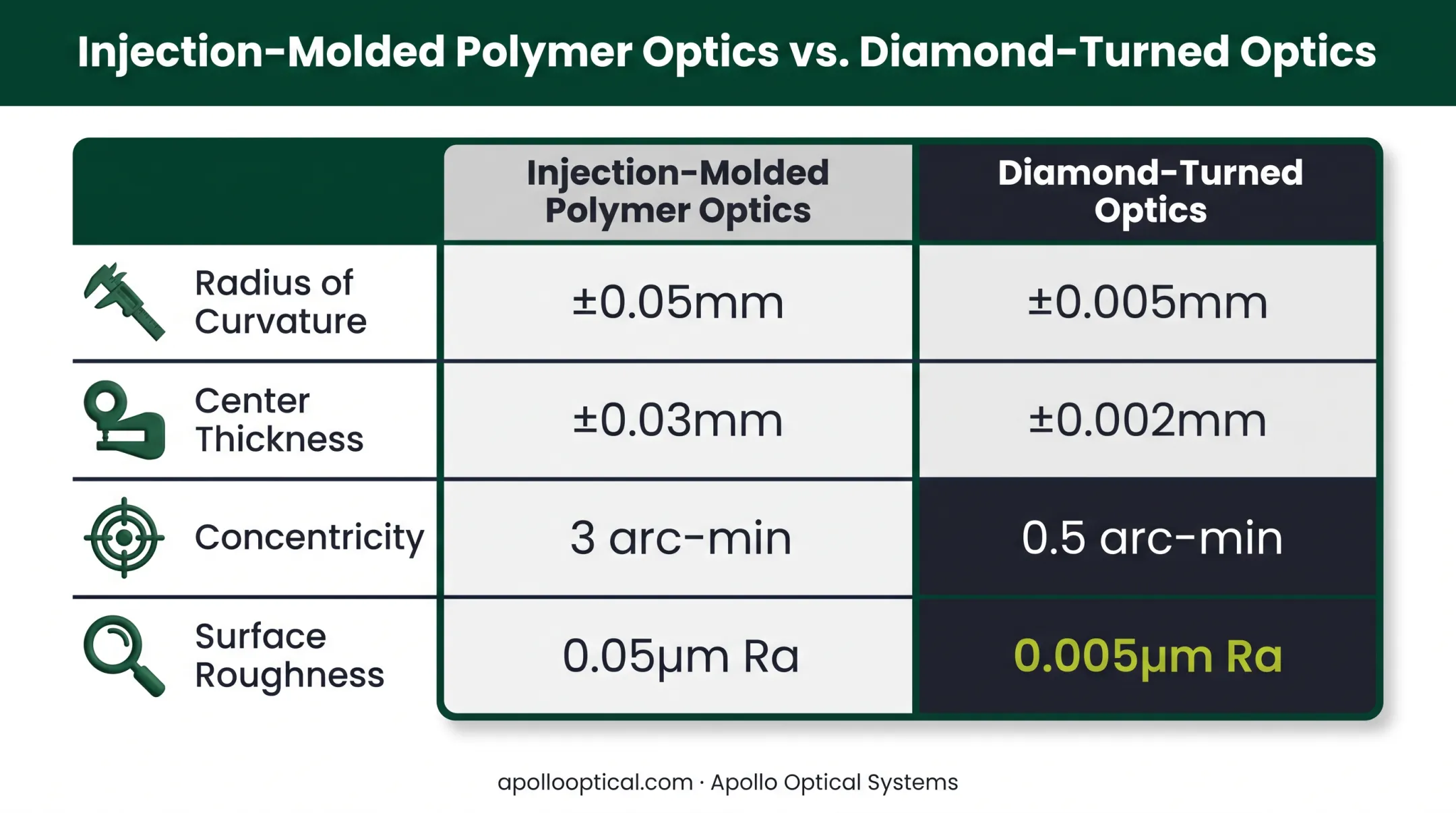

Tolerancing: Precision Meets Manufacturability
Tolerancing is where optical dreams meet manufacturing reality. Tighter tolerances cost more and take longer to produce, so engineers balance:
- Radius of curvature — typically ±1% for injection-molded polymer optics, ±0.5% for diamond-turned parts
- Center thickness — ±0.025 mm molded versus ±0.015 mm diamond-turned
- Concentricity — 0.025 mm versus 0.015 mm
- Surface roughness — under 75 Å RMS molded, under 50 Å RMS diamond-turned
Even a simple camera lens barrel needs layout drawings, individual part drawings, and assembly drawings before any metal is cut. That package is what keeps micron-level tolerances achievable on the shop floor instead of only in the model.
What Does an Opto-Mechanical Engineer Do?
An opto-mechanical engineer is the translator between optical theory and manufacturable hardware. They take an optical prescription — the lens curvatures, spacings, and materials that make the light path work — and figure out how to actually build it.
Core responsibilities include:
- Selecting compatible materials for lenses, mounts, and housings
- Designing mounting interfaces that hold optics without inducing stress
- Running tolerance analysis to predict how manufacturing variation affects performance
- Managing thermal behavior across the operating temperature range
- Planning assembly sequences and alignment procedures
SPIE notes that this work rarely happens in isolation. Opto-mechanical engineers sit between optical designers, mechanical engineers, and manufacturing specialists, iterating through conceptual, preliminary, and final design phases.
The best designs come from teams that talk to each other early. Handing off a finished optical prescription and hoping mechanical engineering can make it work rarely produces the same result.
The 5 Core Steps in Opto-Mechanical System Design
1. Material Selection
Choosing lens, mount, and housing materials starts with CTE compatibility, but weight and temperature rating matter too. Polymer options vary widely:
- COP: specific gravity 0.95–1.01, rated to 160°C
- Polycarbonate: specific gravity 1.20–1.25, rated to 120°C
- PEI: rated to 200°C, CTE of 4.7–5.6 × 10⁻⁵
Post-processing matters here too. Anti-reflection coatings, reflective coatings, and protective dip coatings — using materials like magnesium fluoride, silicon dioxide, or aluminum — get specified by reflectance and transmission percentages across defined wavelength ranges.
2. Structural Design
This step covers the housings, barrels, and baffles that physically contain the system, plus any actuation mechanisms. Engineers balance size, weight, and thermal load at the same time:
- A lighter housing may flex under vibration
- A stiffer housing may add too much mass for handheld use
- Thermal load can shift alignment if mounts and optics expand at different rates

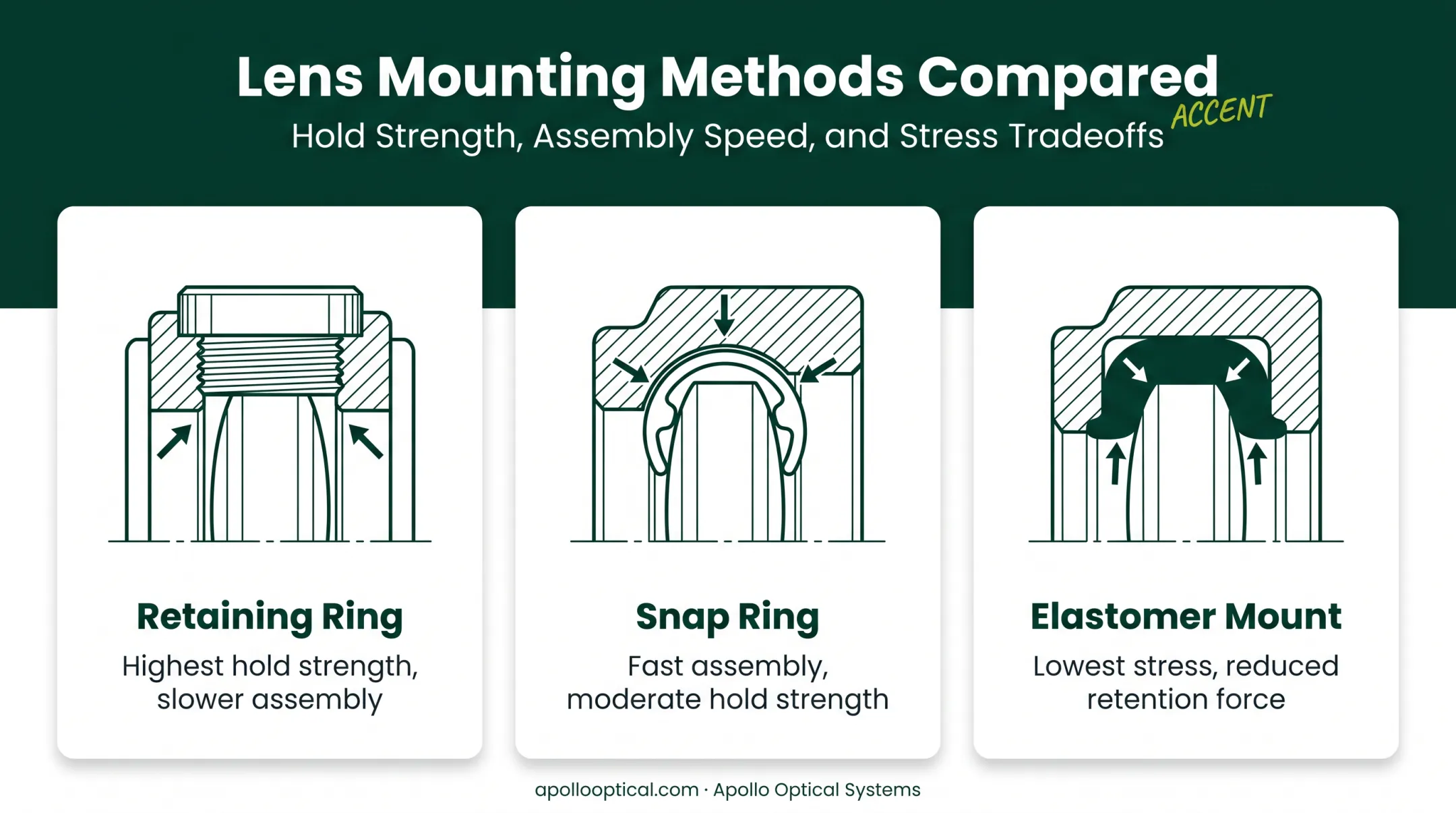

3. Lens-to-Mount Interface Design
How does the lens actually stay put? Common methods include retaining rings, snap rings, and elastomer mounts — each with different tradeoffs:
- Retaining rings: strong hold, higher risk of localized stress on the optic
- Snap rings: faster assembly, less fine control over preload
- Elastomer mounts: lower stress, trade some long-term positional stiffness
Precision lens surfaces often serve as positioning references — the optic locates itself against a mechanical datum.
4. Other Component Interfaces
Mirrors, prisms, light sources, and detectors each need their own mounting logic:
- Mirror mounts may need kinematic adjustment for fine tilt control
- Prism mounts prioritize stable angular registration
- Detector interfaces need precise spacing to hit focus
- Light-source mounts control position, thermal path, and stray light
5. Design for Manufacturability, Cost, and Alignment
This is where designs live or die commercially. A perfect optical design that costs $500 per unit to assemble won't survive contact with a production budget.
Build alignment and cost control into the design early:
- Use datums and self-locating features to cut stack-up error
- Design fixtures and inspection points into the assembly flow
- Choose processes that scale from prototype to volume without redesign

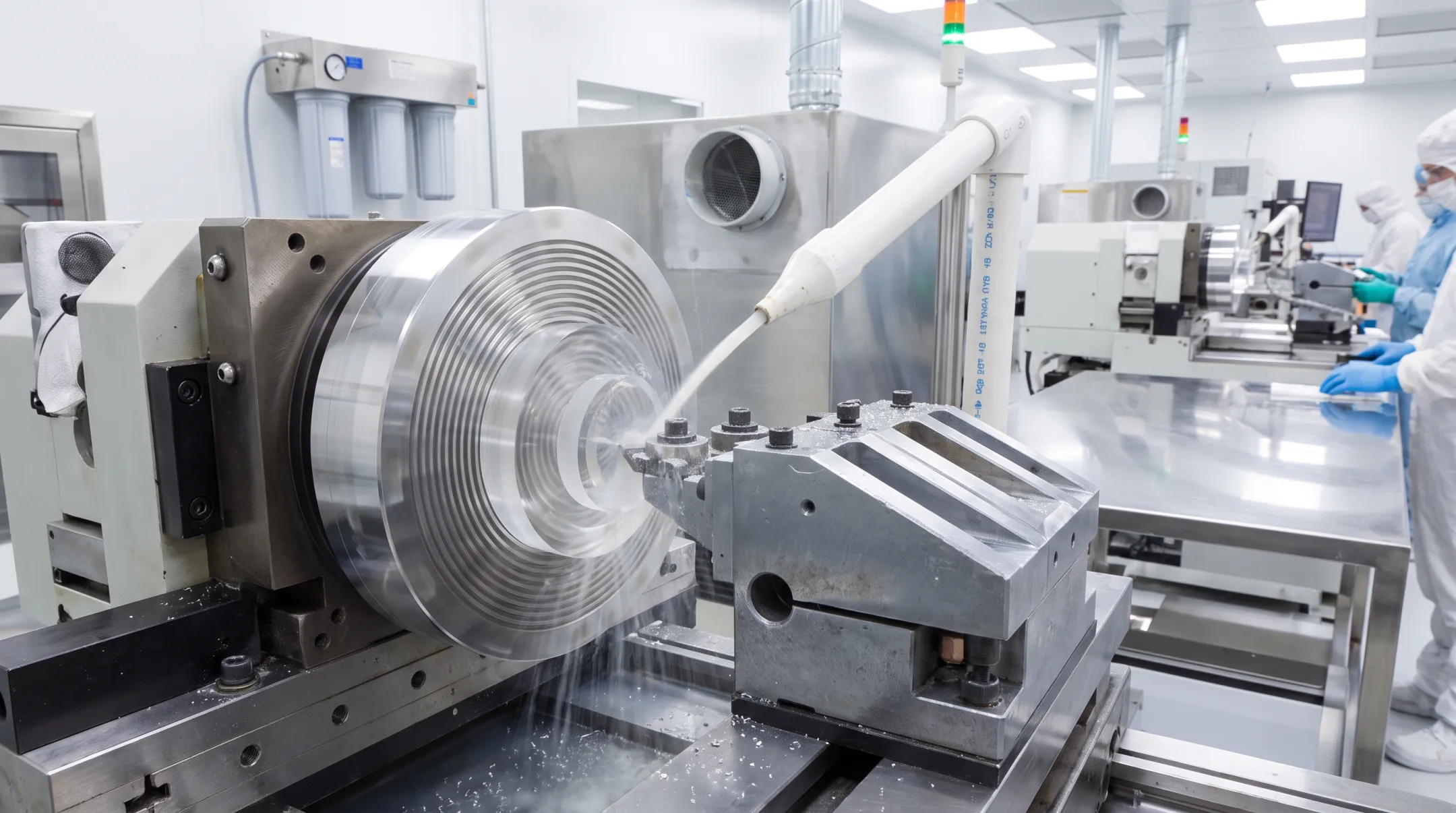

At Apollo Optical Systems, single-point diamond turning validates prototypes before expensive mold tooling is committed, then production moves to polymer injection molding for volume. Both paths feed the same in-house metrology loop, so design-for-manufacture choices get verified early — not on the production floor.
Real-World Examples of Opto-Mechanical Systems
Seeing these principles in working hardware makes them concrete.
Zoom lens cam systems move multiple lens groups along precise, non-linear paths as focal length changes. The cam profile has to choreograph several elements simultaneously without introducing wobble.
Threaded focusing assemblies use multi-lead threads paired with retaining rings to shift a lens axially for focus adjustment. The lens cannot rotate, which would throw off any non-rotationally-symmetric elements. A 2025 SPIE paper on long-wave infrared systems proposes exactly this approach for manual athermalized focusing.

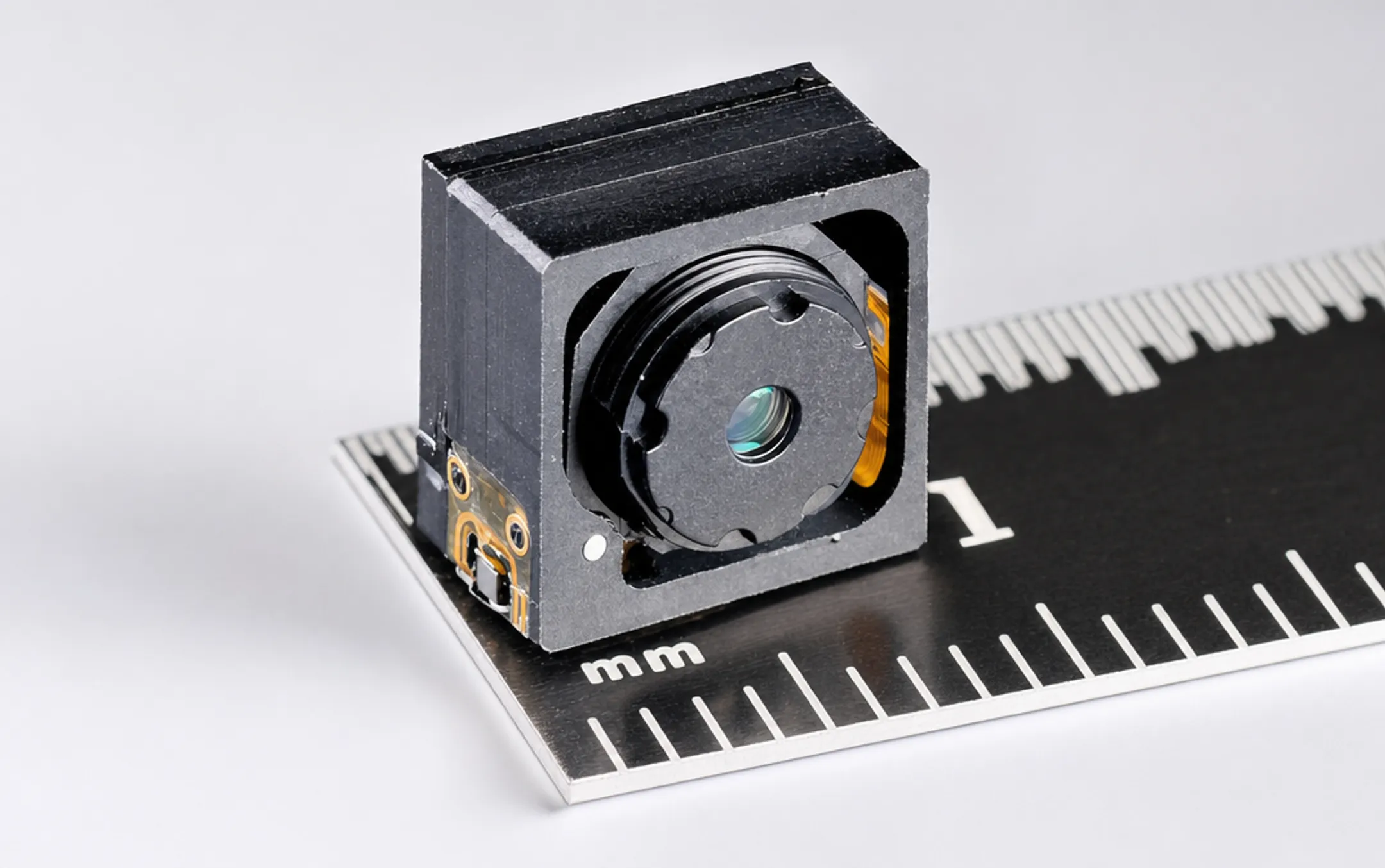

Autofocus mechanisms use piezoelectric, stepper, or voice coil actuators to move lenses automatically. Piezo actuators, for instance, can achieve closed-loop position resolution under a micrometer in packages small enough for endoscopic devices.
These mechanisms show up across:
- Medical endoscopy: Apollo Optical Systems has documented experience with assemblies up to 34 elements, built under ISO, FDA, and GMP protocols
- Defense sighting systems: scopes, sights, rangefinders, and night-vision devices
- Automotive sensors: ADAS cameras, driver-monitoring systems, and LIDAR windows
Emerging Trends Shaping Opto-Mechanical Design
The field isn't static. A few shifts stand out:
- Miniaturization — Photonics Spectra's 2025 coverage points to smaller microcamera modules and compact endoscope assemblies enabling tighter bending radii in medical devices
- Adaptive optics — real-time aberration correction using deformable mirrors and wavefront sensors in a feedback loop, once confined to astronomy, now appearing in surveillance and imaging systems
- Additive manufacturing — 3D printing is compressing prototype cycles in some cases, though material limitations and cost still restrict it at scale
- AI and simulation-driven design — predictive modeling before physical prototyping, reducing costly design iterations
Not every manufacturer has adopted all of these yet, and that's fine. Focus on the trends that actually move your specific product forward.
Why Partner With an Experienced Opto-Mechanical Design Manufacturer
Fragmented supply chains create real risk. When your optical design comes from one vendor, your mold tooling from another, and your assembly from a third, misalignment between their tolerances becomes your problem to solve, usually late and at high cost.
An integrated manufacturer collapses that risk. Apollo Optical Systems, based in Rochester, NY, has operated since 2002 on optics roots that reach back to 1989. Design, single-point diamond turning, polymer injection molding, coating, and metrology all sit under one 21,000 sq. ft. roof.
What that integration looks like in practice:
- SPDT prototyping: Validates optical surfaces in-house before mold tooling begins
- Mold transfer: Moves production-ready molds straight into injection molding on the same design data
- In-process metrology: Checks parts at every stage with CMM, white-light interferometry, and polarimetry
- Flexible assembly: Scales from one-off prototypes to hundreds of thousands of units per month
Apollo's recent work includes a medical tooling and injection-molding program with a top-five global women's health company. That kind of program needs optical precision and manufacturing scale in the same partner.
For teams evaluating a supplier, the real test is whether they can hold tolerance from design through prototyping and volume production without handing you off between vendors.
Frequently Asked Questions
What does an opto-mechanical engineer do?
An opto-mechanical engineer translates optical prescriptions into manufacturable hardware, handling material selection, mounting design, tolerance analysis, and thermal management. They typically work alongside optical designers and manufacturing specialists throughout development.
What is an opto-mechanical system?
An opto-mechanical system is the integration of optical components (lenses, mirrors, prisms) into mechanical structures that maintain alignment, provide protection, and ensure stability. The mechanical design determines whether the optical performance survives real-world use.
What are some examples of opto-mechanical systems?
Common examples include zoom lens assemblies, autofocus camera modules, medical endoscopes, and defense sighting systems. Each relies on precision mounts and actuation mechanisms to keep optics aligned during operation.
How does opto-mechanical design impact optical system performance?
Mounting, thermal management, and alignment directly determine image quality and reliability. Even a perfectly designed lens will underperform if its housing shifts under vibration or temperature change.
What are common challenges in opto-mechanical engineering?
The biggest challenge is balancing mechanical stability against cost and manufacturability without sacrificing optical precision. Tighter tolerances improve performance but raise production cost and complexity, so every decision involves tradeoffs.
