DMS Camera Windows and Cover Optics

A driver monitoring system is an in-vehicle sensing system designed to observe driver attention, head position, eye direction, or signs of distraction and fatigue. It commonly uses an interior-facing camera, illumination, processing software, and protective optical components. The camera window or cover optic must protect the sensor while managing reflections, transmission, distortion, and mechanical integration.

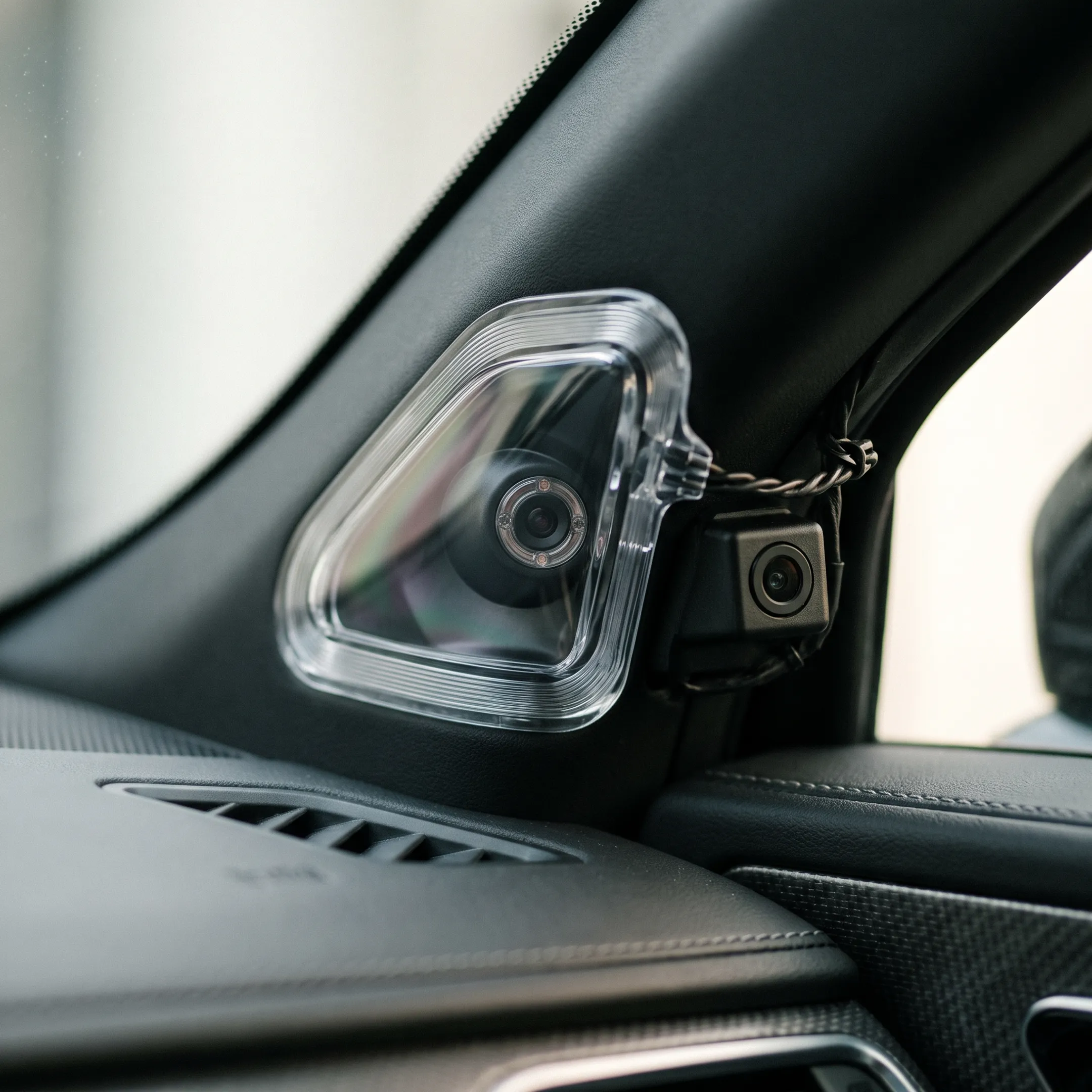

A DMS camera window is the transparent optical interface positioned in front of an interior camera. It protects the lens and sensor from dust, handling, and surrounding vehicle components while allowing useful light to reach the camera. Its material, surface quality, geometry, coating, and mounting tolerances can all influence image quality, glare, and system reliability.

Anti-reflective coatings reduce light reflected from the surfaces of a camera window or cover optic within selected wavelength ranges. Lower reflections can help minimize ghosting, glare, and stray-light effects that may interfere with camera imaging. Coating selection should account for the operating wavelength, substrate material, optical geometry, and environmental requirements of the finished DMS assembly.

Material selection depends on optical transmission, birefringence, thermal performance, chemical resistance, durability, geometry, and cost targets. Apollo Optical Systems works with optical-grade polymers including acrylic, styrene, Zeonex, Zeonor, Ultem, polycarbonate, and specialty resins. The appropriate choice should be evaluated alongside coating compatibility, molding requirements, and the camera system’s performance specifications.

Yes. Single-point diamond turning can produce small quantities of custom optical prototypes before production molding, including aspheric, diffractive, Fresnel, conic, toroidal, spherical, and plano surfaces. Prototype work allows teams to assess form, fit, coating needs, and optical performance early, helping inform design refinements and production-tooling decisions.

Verification combines optical and mechanical evaluation against defined requirements. Apollo Optical Systems uses in-house metrology equipment for measurements such as surface roughness, topography, spherical part performance, mechanical dimensions, and optical retardation on polarization-critical components. Design verification and tolerance analysis can also identify aberration, variation, and manufacturability risks before full-scale production.

Yes. Polymer injection molding supports consistent production of optical components at low and high volumes. Apollo Optical Systems also provides coating and assembly capabilities that can be matched to prototype, low-volume, semi-automated, or higher-volume requirements. A design-for-manufacturing review helps establish a practical route that balances optical performance, tooling, process capability, and program cost.

A productive starting package includes optical requirements, target wavelength range, camera and illumination details, mechanical envelope, intended material preferences, environmental conditions, volume expectations, and timing goals. Existing models, drawings, tolerances, and performance data are also useful. Apollo can review pre-existing optical designs and collaborate on design-for-manufacturing considerations before prototype or production planning.
