Choosing between them affects optical clarity, part lifespan, and how many units you can ship before a field failure shows up. Get it wrong on a defense program or automotive lighting contract, and you're looking at redesigns, recalls, or blown timelines.
Apollo Optical Systems works with both polymers daily, across injection molding, diamond turning, and precision assembly. This guide breaks down where each material wins, and where it doesn't.
Key Takeaways
- PMMA delivers higher light transmission (~92%) and better long-term UV stability, ideal for static, indoor optics
- Polycarbonate offers far higher impact resistance and heat tolerance, built for rugged, high-heat environments
- Neither material wins overall; choose based on your optical and mechanical demands
- Both mold into precision geometries at high volume; hybrid designs cover applications that need both

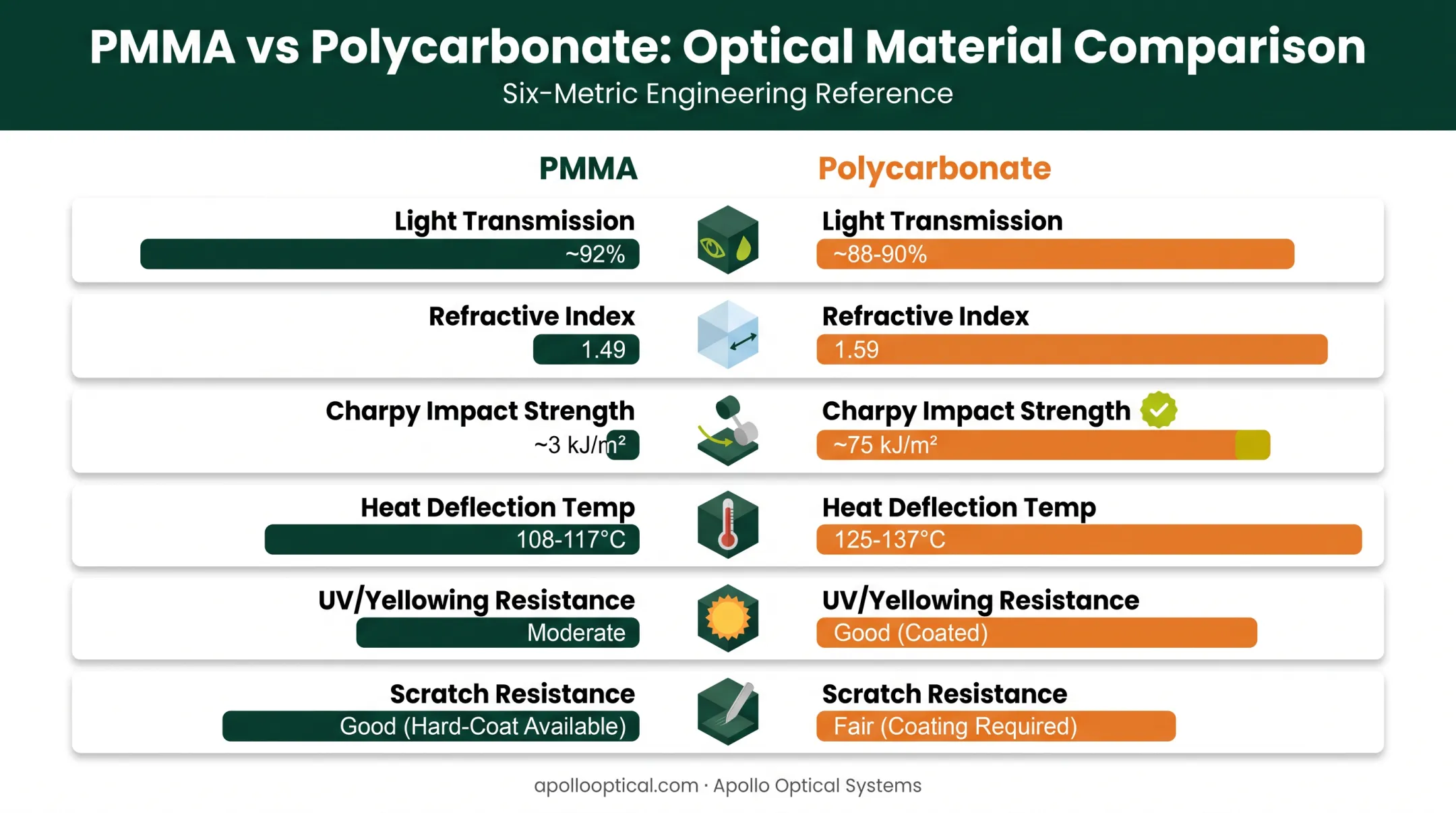

PMMA vs Polycarbonate: Quick Comparison
The numbers tell most of the story. Here's how representative optical-grade PMMA and PC stack up:
| Metric | PMMA | Polycarbonate |
|---|---|---|
| Light transmission | ~92% | ~88-90% |
| Refractive index | 1.49 | 1.59 |
| Charpy impact strength | ~3 kJ/m² | ~75 kJ/m² |
| Heat deflection temp | 108-117°C | 125-137°C |
| UV/yellowing resistance | Excellent, minimal yellowing | Yellows without stabilization |
| Scratch resistance | Better out of the box | Requires hard coating |
What This Table Actually Means
PMMA's higher transmission and lower refractive index make it the go-to for optics where light loss matters most—think light pipes and display covers. Polycarbonate's Charpy impact number, roughly 25 times higher than PMMA's, explains why it dominates anywhere parts get dropped, struck, or exposed to shock loads.
Apollo's own material data lines up closely with these industry figures. PMMA reaches 92.1% transmission with ultra-low birefringence and a 90°C operating ceiling. PC sits at 89.9% transmission, with higher birefringence and a 120°C max operating temperature.
What is PMMA?
PMMA, commonly known as acrylic, is a transparent thermoplastic prized for optical clarity and dimensional stability. It's been a mainstay of precision optics since long before injection molding became routine.
Core benefits:
- High transmission reduces light loss in lenses and light guides
- Easier to polish and bond, lowering finishing costs
- Excellent UV stability with minimal long-term yellowing
- Rockwell hardness around M97, giving solid scratch resistance without a coating
PMMA comes in cast and extruded forms, plus UV-stabilized and optical-grade variants. Cast sheet tends to offer tighter optical consistency; extruded is faster and cheaper for less demanding parts.

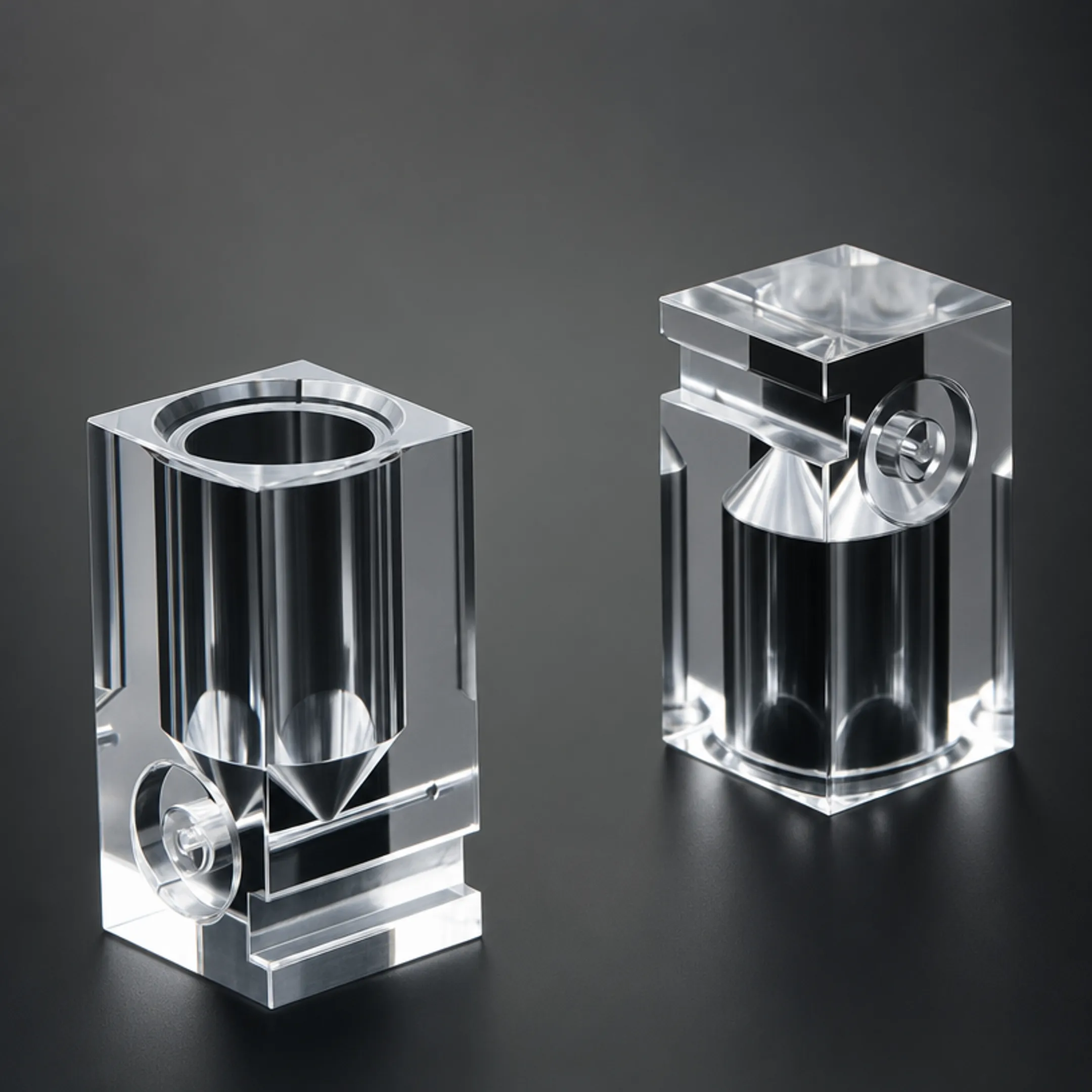

Use Cases of PMMA
PMMA shows up wherever impact risk is low but optical performance matters:
- Aspheric and freeform lenses for medical devices and lighting systems
- Substrate-guided light pipes using total internal reflection for architectural, aircraft, and automotive lighting
- Display covers and static optical assemblies
- Automotive tail-lamp lenses and signage
PMMA's optical pedigree goes back further than most people realize. Sir Harold Ridley performed the first successful intraocular lens implantation in 1949 using Perspex CQ, an acrylic material well tolerated by eye tissue with no inflammation. That biocompatibility and clarity are why PMMA remains standard for optical windows and covers in modern medical devices.
What is Polycarbonate?
Polycarbonate trades some optical purity for toughness. It's an engineering thermoplastic that holds up where PMMA would crack, chip, or deform under heat.
Core benefits:
- Reduces field failures in impact-prone environments
- Supports thinner, lighter part designs thanks to inherent strength
- Withstands higher processing and operating temperatures (up to 120°C in Apollo's documented grades)
- Available in UV-stabilized and hard-coated variants for outdoor use
Optical-grade, UV-stabilized, and hard-coated PC map to different exposure conditions. PC generally isn't diamond-turnable the way PMMA is, so injection molding is the practical production route for most PC optics.
Where Polycarbonate Wins
PC dominates anywhere shock, heat, or shatter resistance is non-negotiable:
- Automotive headlamp lenses and sensor housings

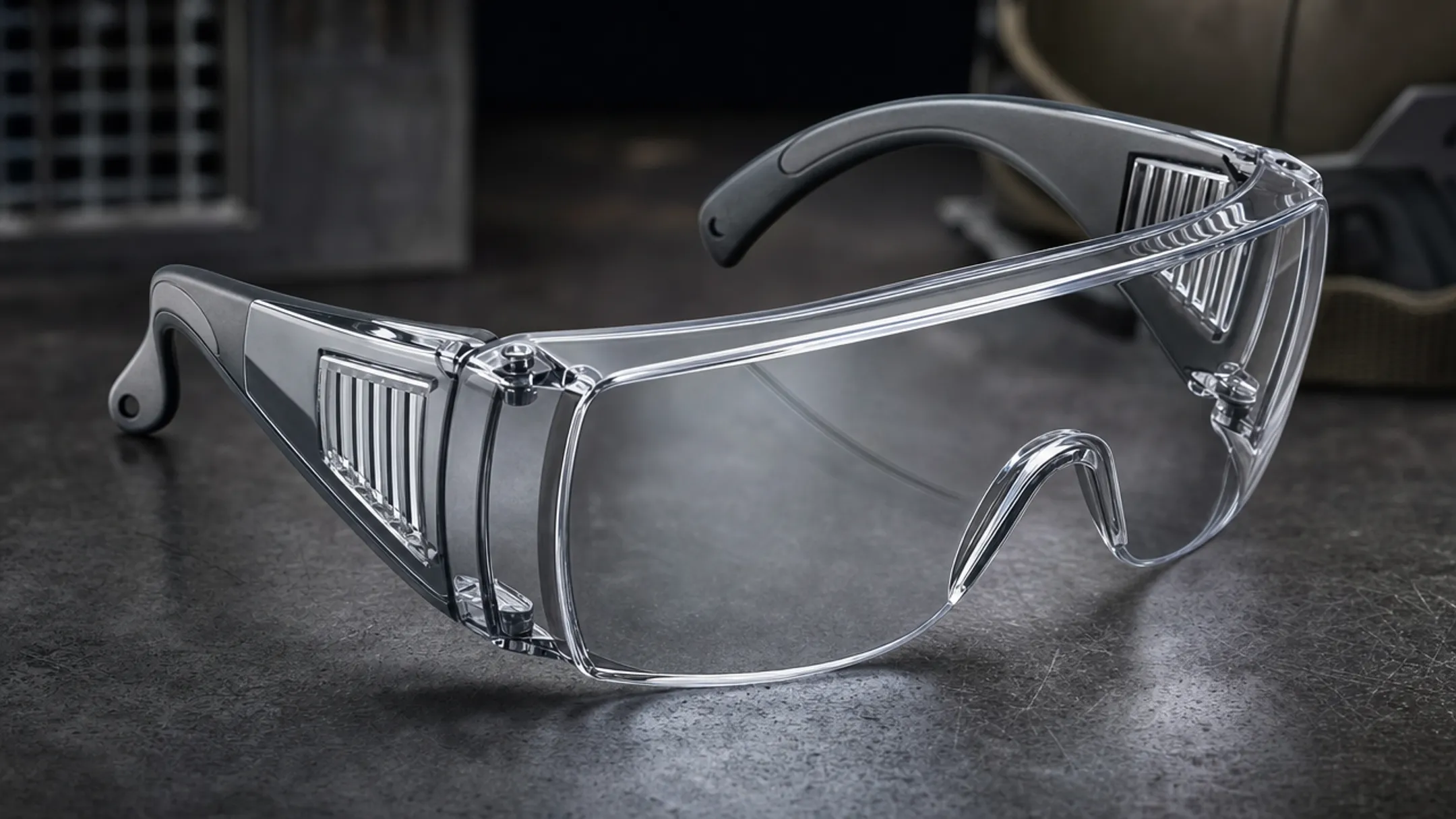

- Protective eyewear and safety equipment
- Aerospace canopies and defense/tactical optics housings
- Scopes, sights, flashlights, and night-vision device components
The impact numbers back this up. ANSI/ISEA Z87.1-2025, the current safety-eyewear standard, uses a high-impact "Z87+" marking for protective lenses. PC's Charpy impact strength (~75 kJ/m² versus PMMA's ~3 kJ/m²) is why it remains the default in that category.
Apollo's aspheric lens line lists PC among its materials for automotive, tactical, and defense applications where that toughness is the deciding factor.
PMMA vs Polycarbonate: What is Better?
Neither wins outright. The decision comes down to four factors:
- Impact exposure — Will this part get dropped, struck, or shot at? PC wins.
- Thermal environment — Does it sit near heat sources or run hot? PC wins.
- Optical clarity requirements — Do you need maximum transmission and minimal distortion? PMMA wins.
- Outdoor UV exposure — Untreated, PMMA holds up better long-term; PC needs stabilization or coating.
Choose PMMA when: optical purity and scratch resistance outweigh impact concerns, such as static indoor lenses or light pipes.
Choose PC when: durability, heat resistance, or shatter resistance are mission-critical, such as tactical optics or automotive lighting.
Some programs split the difference with hybrid designs: a PC core for structural toughness capped with PMMA or a hard coat for optical performance.
Since 2002, Apollo Optical Systems has built hybrid polymer assemblies ranging from UV-cemented doublets to 34-element endoscopes, with each material stack engineered to the project's requirements.
Real World Application: Material Selection in Precision Optics Manufacturing
Consider a common scenario in automotive lighting: an OEM ships polycarbonate headlamp lenses without adequate UV stabilization. Within a few years of field exposure, the lenses yellow and haze over, cutting light output and creating a warranty headache.

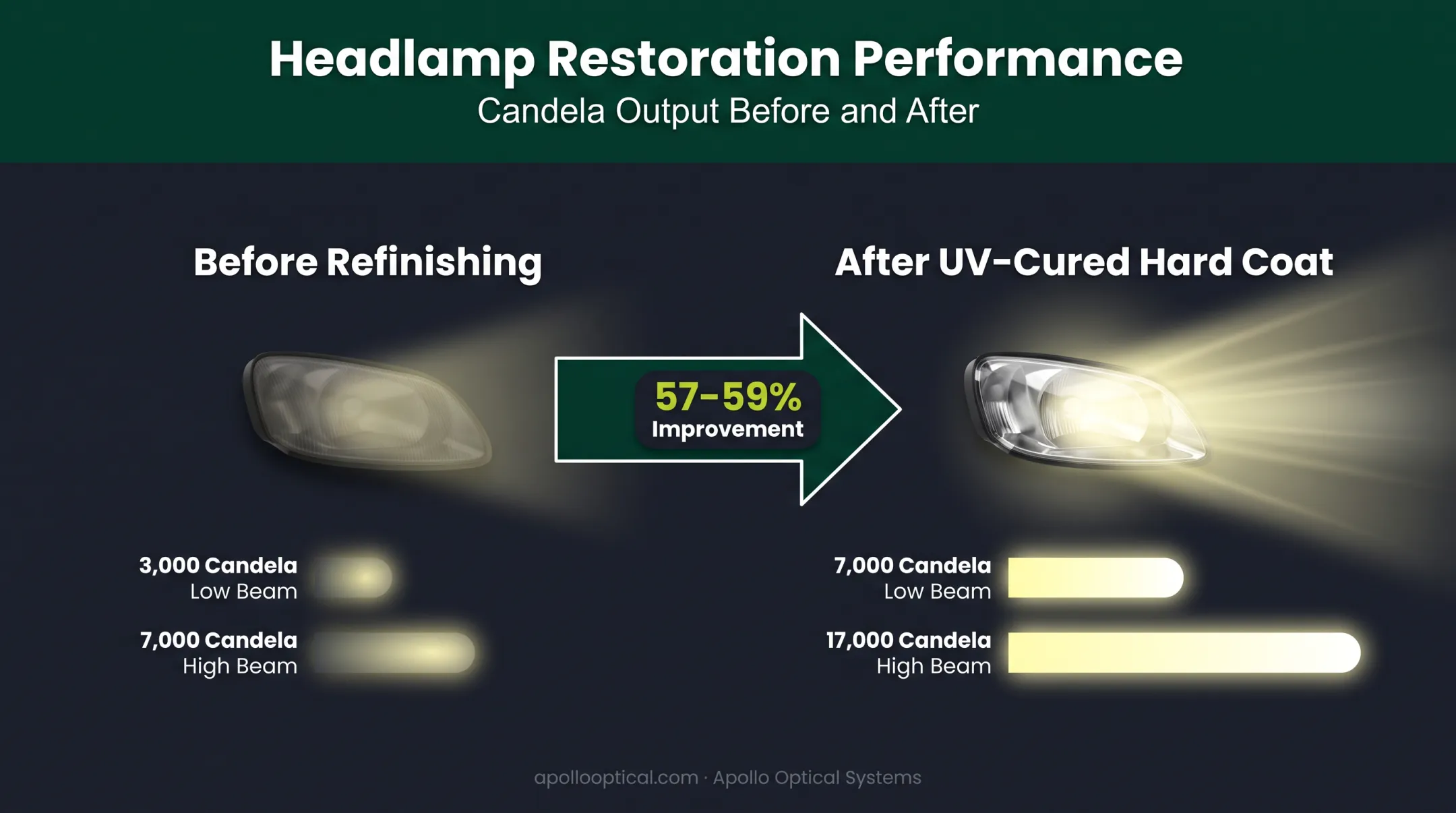

This isn't hypothetical. A 2024 refinishing case study documented deteriorated PC headlamps after field exposure. After removing the degraded coating and applying a UV-cured hard coat, output recovered sharply:
- Before refinishing: 3,000 candela low beam / 7,000 candela high beam
- After UV-cured hard coat: 7,000 candela low beam / 17,000 candela high beam
- Result: 57–59% improvement on both beams
PC's impact and heat advantages come with a design obligation. UV stabilization or hard-coating has to be built in from the start, not added after failures show up in the field.
This is where a manufacturer that handles both molding and precision optical fabrication adds the most value. Apollo applies its materials expertise to balance refractive index, thermal stability, birefringence, and cost for each project, evaluating tradeoffs before they become field problems rather than after.
If you're weighing PMMA against PC for a new optical component, Apollo's engineering team can walk through the specifics with you before you commit to tooling.
Conclusion
There's no universal winner between PMMA and polycarbonate. PMMA gives you clarity and UV stability; PC gives you toughness and heat resistance. The right call depends entirely on matching material properties to your application's optical, thermal, and mechanical demands.
Getting this right the first time reduces field failures, speeds time-to-market, and keeps optical performance consistent at scale. Apollo Optical Systems handles both molding and precision optical fabrication under one roof, so that material match holds from prototype through production.
Frequently Asked Questions
Which is better, polycarbonate or acrylic?
Neither is universally better. PMMA (acrylic) wins on optical clarity and UV stability; polycarbonate wins on impact and heat resistance. The right choice depends on your application's specific demands.
What are the key differences between polycarbonate and PMMA?
PMMA offers higher transmission (~92%) and a lower refractive index (1.49), plus better UV stability. Polycarbonate offers higher impact strength and heat resistance (up to 120-137°C).
What is the best material for protective optical windows?
Polycarbonate is generally preferred when impact resistance is critical. PMMA suits windows and covers where maximum clarity and UV stability matter more than toughness.
Does polycarbonate turn yellow in the sun?
Yes, untreated PC yellows through photooxidation from UV exposure. UV-stabilized resins and hard coats slow this degradation, but the base polymer needs that protection outdoors.
Can polycarbonate or PMMA be used for precision optical lenses?
Both are used regularly. PMMA is favored for high-clarity static lenses, while PC suits lenses needing impact resistance. Apollo manufactures precision lenses in both materials via injection molding and diamond turning.
How do PMMA and PC compare for outdoor optical applications?
Outdoor use requires UV-stabilized PMMA or coated PC to prevent degradation. PC is generally preferred when high-impact exposure is also a factor, provided UV protection is built into the design.
