Engineers often struggle to translate lighting requirements into the correct diffuser specification. A vague spec ("we need it more even") leads to prototype failures, missed uniformity targets, and costly redesign cycles.
This article covers how LSDs work, the main technology types, where they're used across industry, and what to look for in a manufacturing partner.
Key Takeaways
- Light shaping diffusers (LSDs) use engineered microstructures to shape beams and improve uniformity—not just cut glare
- Diffractive, refractive/microlens, and hybrid LSDs match different performance targets and cost constraints
- Medical, defense, automotive, and industrial systems depend on custom LSDs when performance is non-negotiable
- End-to-end optics manufacturing cuts design iterations and shortens time-to-market
What Is a Light Shaping Diffuser and How Does It Work
A light shaping diffuser (LSD) is an optical element with engineered microstructures that redirect and homogenize incoming light into a defined angular distribution. That role differs from what most people picture when they hear "diffuser."
Diffusers don't soften light the way a lampshade does. They redistribute photons to control intensity, angle, and uniformity at a specific target plane.
RP Photonics defines a true diffuser as an optic that scrambles the wavefront and reduces spatial coherence. An engineered LSD goes further, directing most incoming power into a specified output-angle range instead of scattering it randomly.
Ground Glass vs. Precision Micro-Optics

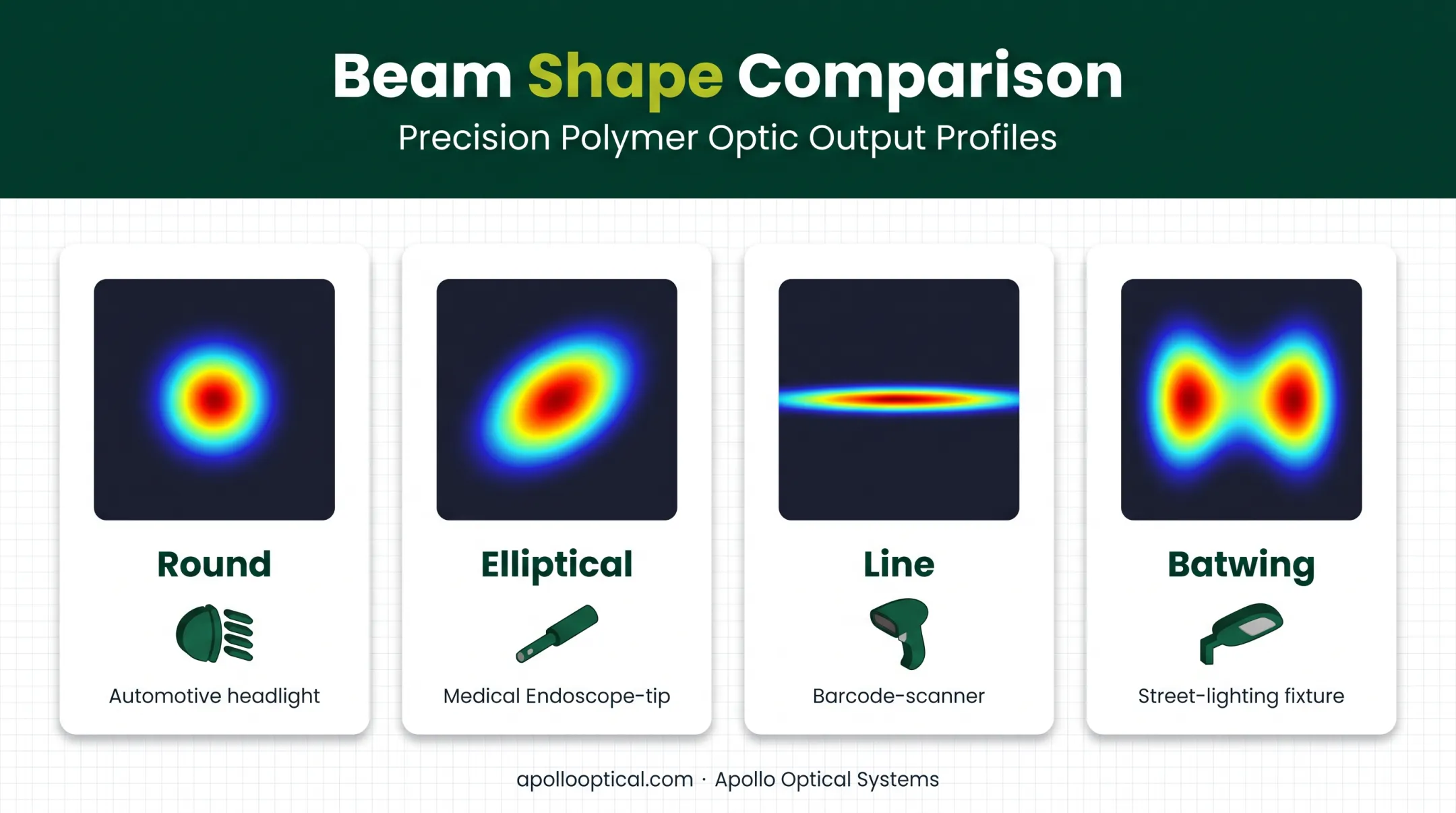

A ground-glass or opal diffuser scatters light randomly with no engineered control over the output shape. A precision LSD, by contrast, uses deliberately designed microstructures, sized and arranged to produce a specific result:
- Round output for spot illumination
- Elliptical output for asymmetric coverage
- Line output for scanning applications
- Batwing output for wide, glare-controlled distribution
The geometry, size, and randomness (or pseudo-randomness) of each microstructure determine which of these shapes comes out the other side.
Performance Metrics That Matter

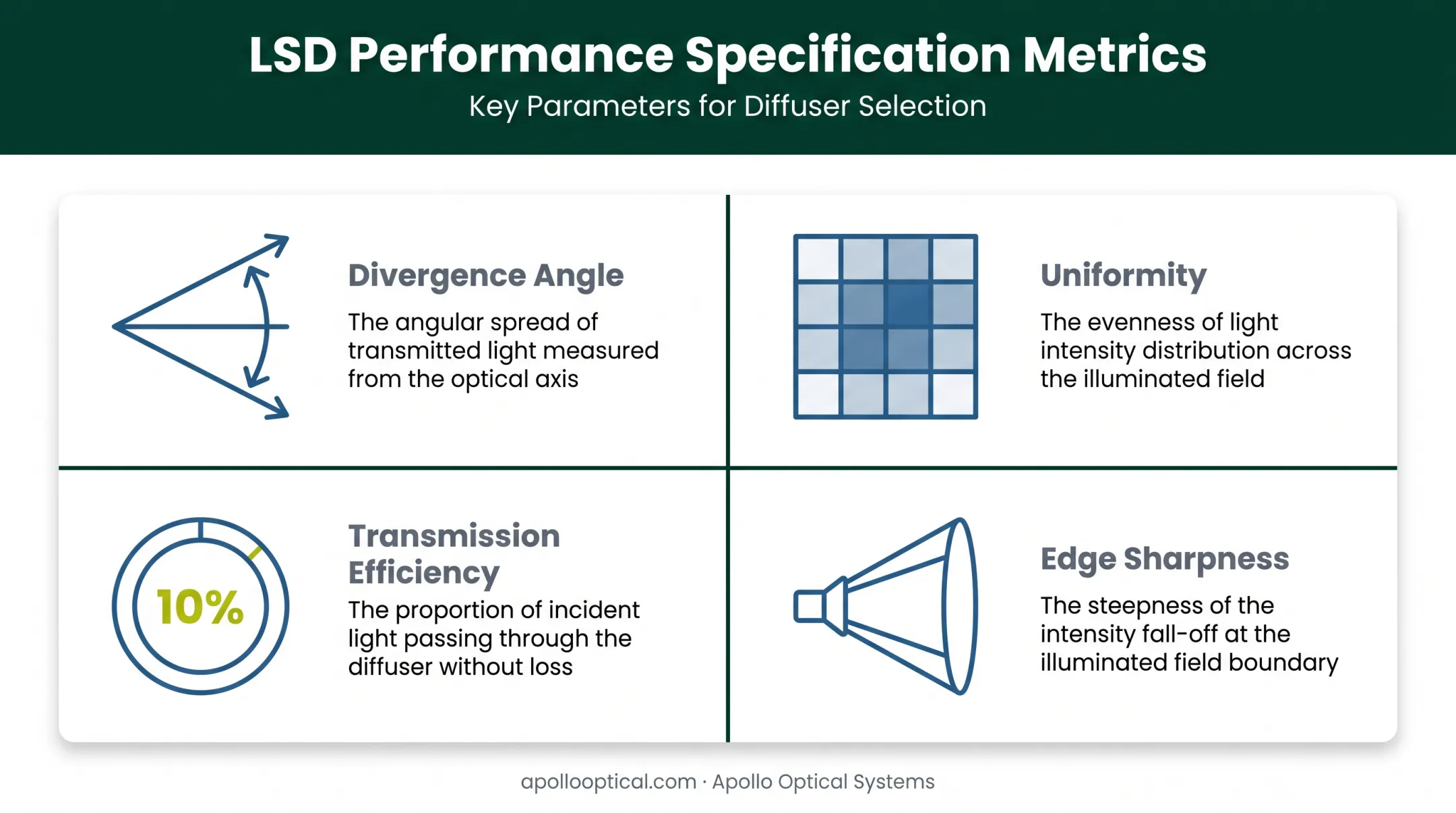

When specifying an LSD, four metrics drive the conversation:
- Divergence angle - the angular width of the output, measured at a defined plane
- Uniformity - how evenly intensity is distributed across the target region
- Transmission efficiency - how much input power reaches the target
- Edge sharpness - how cleanly the beam profile cuts off at its boundary
Efficiency numbers vary by design and test method. One peer-reviewed engineered-microlens study measured 95% target efficiency at 633 nm for a diffuser using 100-micron features. Commercial suppliers report ranges from 85% to over 90% depending on angle and shape.
These figures aren't directly comparable across studies unless wavelength, input beam, and measurement plane are matched. Before comparing vendor quotes, insist on the same test definition.
Types of Light Shaping Diffusers

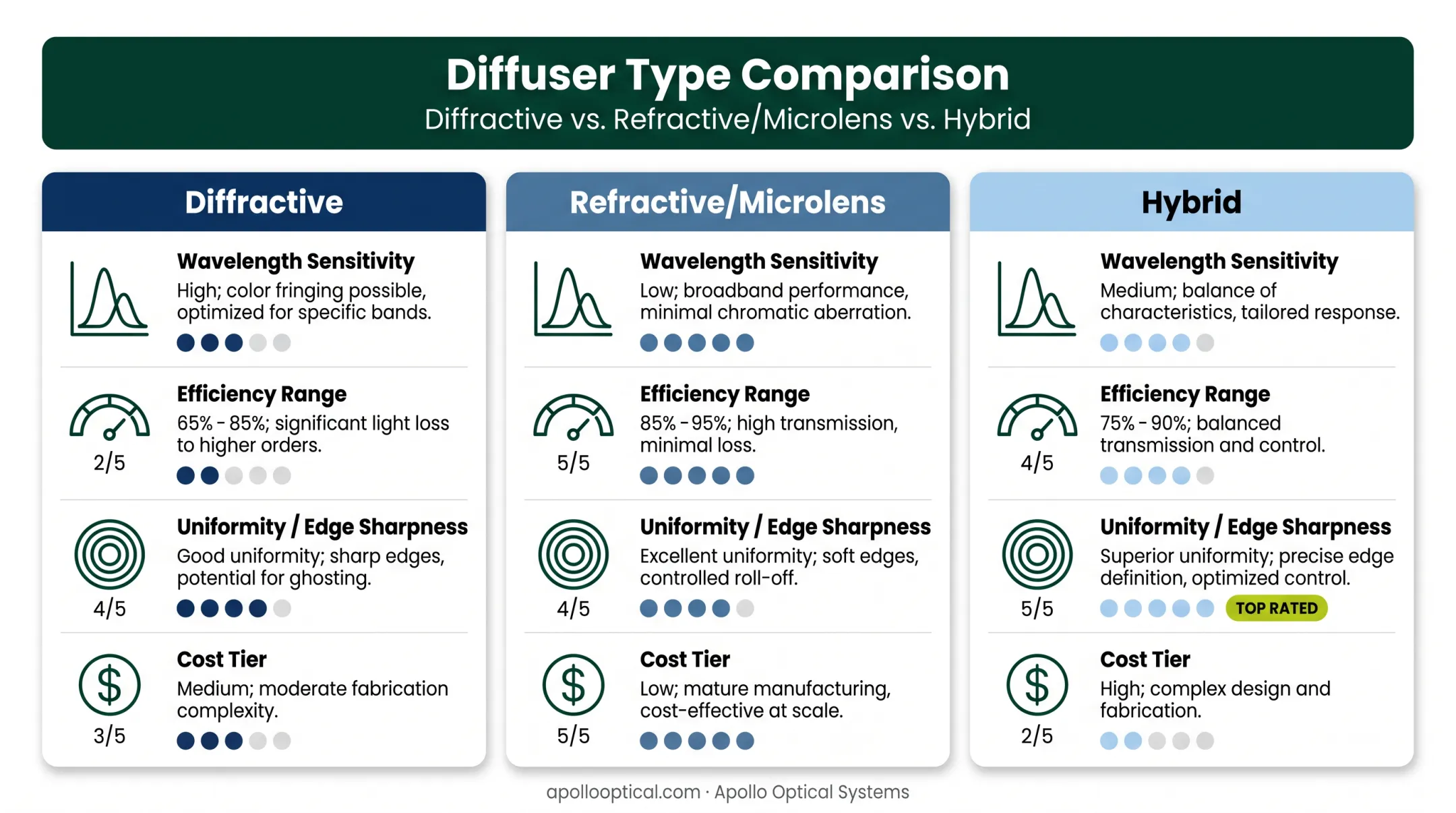

Not every LSD is built the same way. The three main architectures trade off differently on control, spectral range, and cost.
Diffractive Diffusers
Diffractive diffusers use phase-altering microstructures to produce highly uniform output with sharp-edged intensity profiles. They're the go-to choice for laser applications where you need precise angular control at a single wavelength.
The catch: these designs are wavelength-specific. Use one off its design wavelength, and energy can shift into an unwanted zero-order spot in the center of the beam. That's a real failure mode worth testing for, not a theoretical concern.
Refractive / Engineered (Microlens Array) Diffusers
Refractive diffusers use geometrically arranged microlenses instead of phase manipulation. This gives them:
- High transmission efficiency
- Smooth, broadband performance across wavelengths
- Better tolerance for multi-wavelength or white-light LED sources
They generally offer lower angular accuracy than a diffractive design tuned to a single wavelength, but that's an acceptable tradeoff for most broadband applications.
Holographic and Hybrid Diffusers
Hybrid diffusers combine diffractive and refractive elements, pairing a coherence-reducing surface with a shaping element for high efficiency plus sharp uniform output. The tradeoff is added complexity: more surfaces to align, more thermal interactions to manage, and a higher unit cost.
Apollo Optical Systems manufactures diffractive diffusers in-house using single-point diamond turning, with diffraction efficiencies of 97–99% at design wavelength.
For refractive microlens arrays, Apollo molds the parts and partners with RPC Photonics for master fabrication—each stage handled by the team built for it.
Industrial and Commercial Applications of Light Shaping Diffusers
LSDs show up anywhere light needs to hit a target with control, not just brightness.
Laser Material Processing and Additive Manufacturing
Beam shape changes melt-pool behavior directly. Research on powder bed fusion shows that ring and top-hat beam profiles can improve process efficiency and product quality compared to Gaussian beams, producing more homogeneous temperature fields and reducing spatter linked to melt-pool flow instability.
A separate study on annular laser metal deposition of titanium alloy found that an annular beam produced a straighter fusion line than a solid Gaussian beam, though low power or excessive defocus still caused pores and incomplete fusion. The takeaway: beam shape is a real process variable, worth testing against your specific material and parameters rather than assuming any diffuser improves outcomes automatically.
Medical and Life Sciences
Precise, safe light distribution matters in diagnostic illumination and laser-based aesthetic treatment. In therapies such as photodynamic and laser interstitial thermal therapy, diffuser design is often pushed for high optical efficiency while keeping tissue exposure within safe limits.
Apollo Optical Systems supports medical illumination applications including:
- Endoscopes and robotic surgery systems
- Analytical instrumentation
- Medical cameras and imaging payloads
Defense, Aerospace, and Tactical Systems
LSDs support controlled illumination across tactical and aerospace platforms:
- Sensor illumination and targeting optics
- Night-vision compatible lighting on weapon-mounted systems
- Guidance optics, HUDs, and head-mounted displays
Public examples include holographic optics in HUDs and gun sights, though platform-specific performance data is rarely disclosed.
Automotive and Industrial/Architectural Lighting
Headlamp beam shaping and glare-controlled illumination both depend on engineered diffusion. In the US, FMVSS 108 governs lamp photometric requirements and defines adaptive driving beams that dynamically reduce glare. Any LSD used in a headlamp assembly has to be validated as part of the complete lamp system, not tested in isolation.
Emerging Consumer and Display Applications
Compact light shaping optics are increasingly common in consumer electronics and display backlighting, where space limits demand thinner, more efficient diffusion than older diffuser films could deliver.
Key Factors to Consider When Specifying a Light Shaping Diffuser
Getting the spec right upfront saves months of redesign later. Focus on these four areas:
- Match divergence angle and shape to the source and target geometry. An LED source behaves differently than a laser; specify the input beam parameters alongside the desired output.
- Choose substrate and coating for the environment. Apollo works with polymers ranging from standard PMMA (rated to roughly 90°C) up to thermoplastic polyimide (rated to 220°C), plus anti-reflective and metal-thin-film coatings for durability.
- Balance efficiency, uniformity, and cost against production volume. A diffractive DOE might make sense for a low-volume laser system; a molded microlens array usually wins at high volume.
- Pick a manufacturing partner with end-to-end capabilities. Diamond turning, injection molding, and metrology under one roof cut handoffs between prototype and production. Apollo Optical Systems takes projects from optical design through high-volume polymer molding in a single facility.
Why Manufacturing Precision Matters for Light Shaping Diffusers
Microstructure tolerances directly affect uniformity and stray light. Even a defect that looks trivial on a drawing, such as a few nanometers of surface roughness or a slightly off pitch, can visibly degrade optical performance in the finished part.
Scalable, repeatable processes matter just as much as the initial design. Moving from a diamond-turned prototype to millions of injection-molded parts requires tight correlation between the two processes.

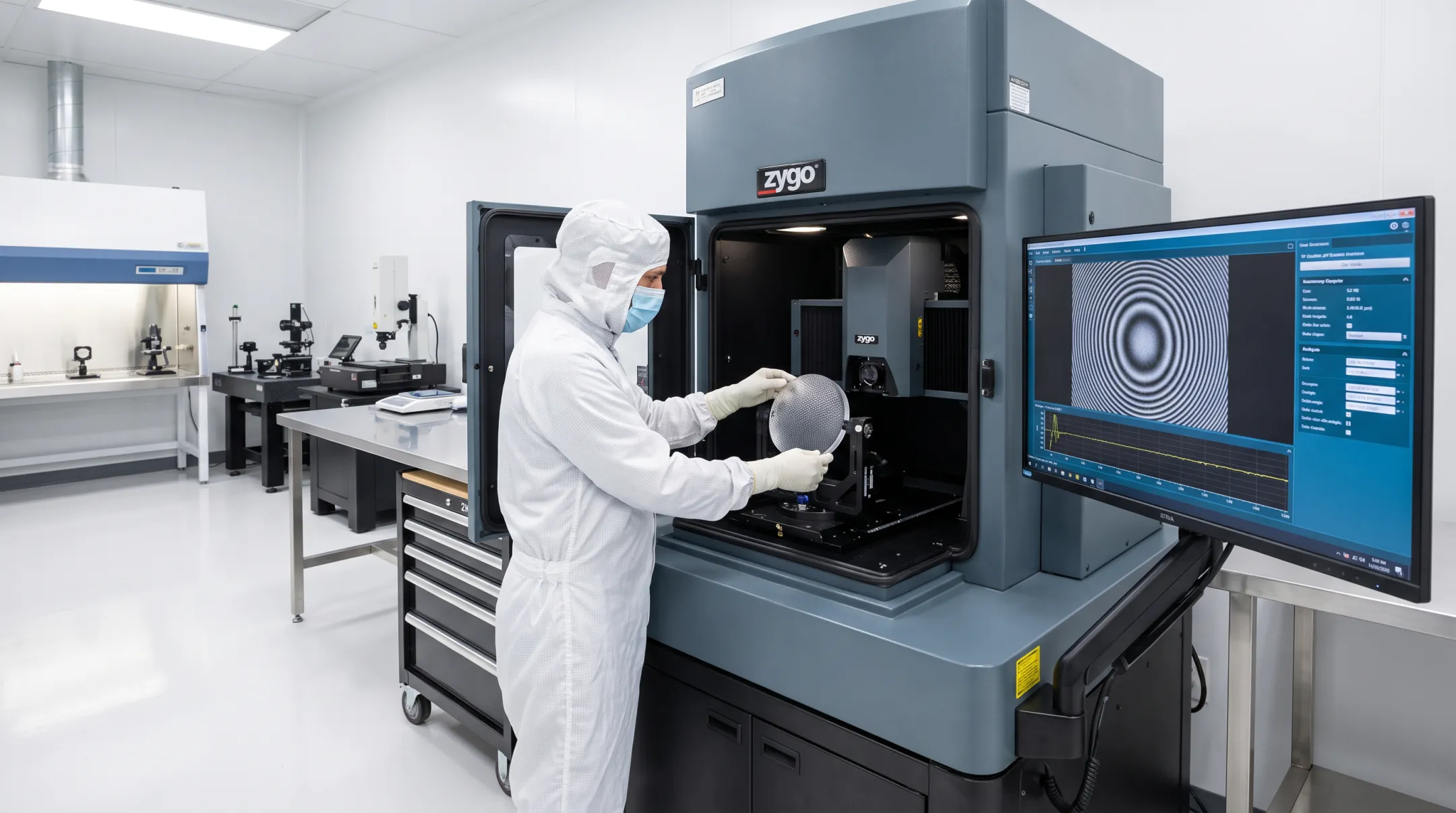

Apollo Optical Systems achieves this by molding polymer blanks that match the diamond-turned prototype's material properties, then verifying every stage with in-house metrology: interferometry, white-light profilometry, CMM measurement, and high-magnification microscopy.
For regulated industries, quality systems matter beyond the optics bench:
- Medical device programs require traceable, documented production under ISO 13485:2016
- Defense and aerospace programs typically demand AS9100-aligned quality management
- High-volume automotive programs need lot-to-lot consistency validated against a defined optical spec
In these sectors, a secure, quality-controlled supply chain is what determines whether a component clears audit.
Frequently Asked Questions
What does a light diffuser do?
A diffuser redistributes and homogenizes light from a source into a controlled, uniform pattern. Engineered LSDs direct photons to defined angles and uniformity targets, which differs from photographic softening.
What is the best light diffuser?
It depends entirely on the application. Diffractive diffusers suit lasers needing sharp, uniform-edged profiles, while refractive or engineered microlens diffusers suit broadband efficiency needs across LEDs or white light.
Can you give me an example of diffused light?
An LSD homogenizing a laser beam for uniform heating in additive manufacturing is one example. Another is a diagnostic light source in a medical imaging device, where even illumination directly affects image quality.
What are the four types of light?
The common categorization covers natural, incandescent, fluorescent, and LED sources. LSDs can be engineered to work with any of these, though the design approach differs based on the source's spectral bandwidth.
Do I need a diffuser for my flash?
That question relates to photography accessories, which is a different category from the engineered LSDs discussed here. Industrial, medical, and defense systems use precision micro-optic diffusers built to strict angular and uniformity specifications, not clip-on camera modifiers.
