Engineers building medical devices, defense systems, or automotive sensors face a constant balancing act. They need efficiency, uniformity, and durability all at once, and pushing one too far usually breaks another. A brighter LED array might mean more heat. A more uniform beam might mean higher manufacturing cost.
This guide breaks down what illumination design actually involves: the fundamentals, the types, the core technologies, and the real challenges engineers run into. We'll also look at how precision optics manufacturing turns illumination concepts into products that actually ship.
Key Takeaways
- Illumination design shapes light distribution, intensity, and uniformity through lenses, diffusers, and related micro-optics
- Structured, diffuse, or collimated light each serves a distinct role in engineered illumination systems
- Manufacturing tolerances decide whether a prototype's performance survives mass production
- Medical and defense programs, along with automotive platforms, demand illumination that meets strict reliability standards
- An experienced optics manufacturing partner shortens time-to-market on complex illumination projects
What Is Illumination Design?
Illumination design is the engineering process of shaping, directing, and distributing a light source's output for a specific functional purpose. It is optics applied with intent, not decoration.
That sets it apart from architectural lighting design, which focuses on mood, aesthetics, and ambiance. Illumination design, in the technical sense, focuses on performance: an endoscope needs enough light in the surgeon's field of view, a sensor needs uniform illumination to avoid measurement error, and a tactical scope needs a beam that behaves predictably in the field.
The Metrics That Guide Every Decision
Four photometric terms guide every illumination design decision:
- Lumens (flux): Total light output from a source, per the IES definition of luminous flux
- Candela (intensity): Luminous intensity in a given direction—one candela equals one lumen per steradian, per IES
- Lux (illuminance): Light landing on a surface, measured in lumens per square meter
- Luminance: How bright a surface appears from a given viewing angle
An optic that hits these targets on paper still has to be manufacturable at scale. That gap between design and production is where a lot of illumination projects stall.
What Is an Example of Illumination?
Common examples include:
- General illumination: A streetlight, spreading even light across a roadway
- Functional illumination: A surgical headlamp, focused precisely on a task
- Accent illumination: An LED indicator on an instrument panel, signaling status
- Engineered illumination: A diffractive optic spreading laser light evenly across a sensor array
Types of Illumination and Their Engineering Applications
Lighting designer Richard Kelly's classic framework (ambient luminescence, focal glow, and play of brilliants) describes how architects layer light in a space. Engineers translate these ideas into functional equivalents: ambient sensor lighting, targeted task lighting in medical instruments, and indicator lighting on electronics.
But engineered systems need more specific categories than architecture ever required:

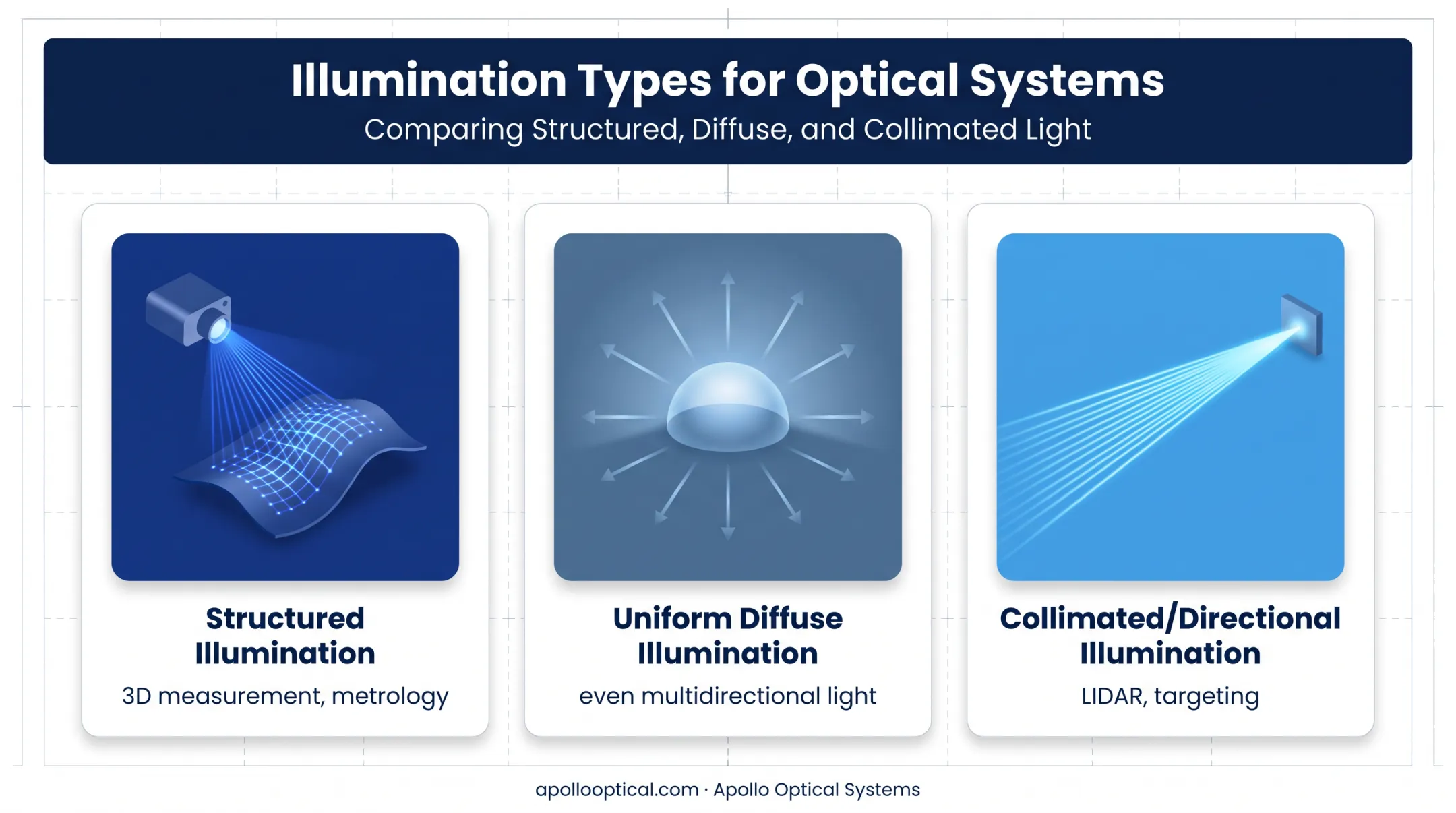

- Structured illumination projects patterns (lines, grids, or dot arrays) onto a surface for 3D measurement and metrology. Edmund Optics describes structured light as central to machine-vision inspection.
- Uniform diffuse illumination delivers even, multidirectional light for shiny or mixed-reflectivity surfaces, critical where shadows would create false inspection readings.
- Collimated/directional illumination produces parallel rays for silhouetting, edge detection, LIDAR, and targeting systems where beam control matters more than spread.
In engineered systems, the "right" illumination type is dictated by the spec sheet, not by ambiance. A defense targeting system needs precise beam control. A streetlight doesn't.
Core Optical Technologies Behind Illumination Design
Getting light to behave predictably requires specific optical tools, each solving a different distribution problem.
Diffractive and Micro-Optic Structures
Diffractive optics shape and homogenize light output, reducing hot spots and improving uniformity. Apollo Optical Systems built on this foundation through its roots in Rochester Photonics Corporation, which helped move diffractive and micro-optics from research labs into commercial products.
Micro-optic arrays and lenslet structures control how LED or laser light spreads. Common array patterns include:
- Square, hexagonal, circular, or random layouts
- Spherical, conic, or custom aspheric surface profiles
These options produce specific distribution patterns and cut glare where it matters most.

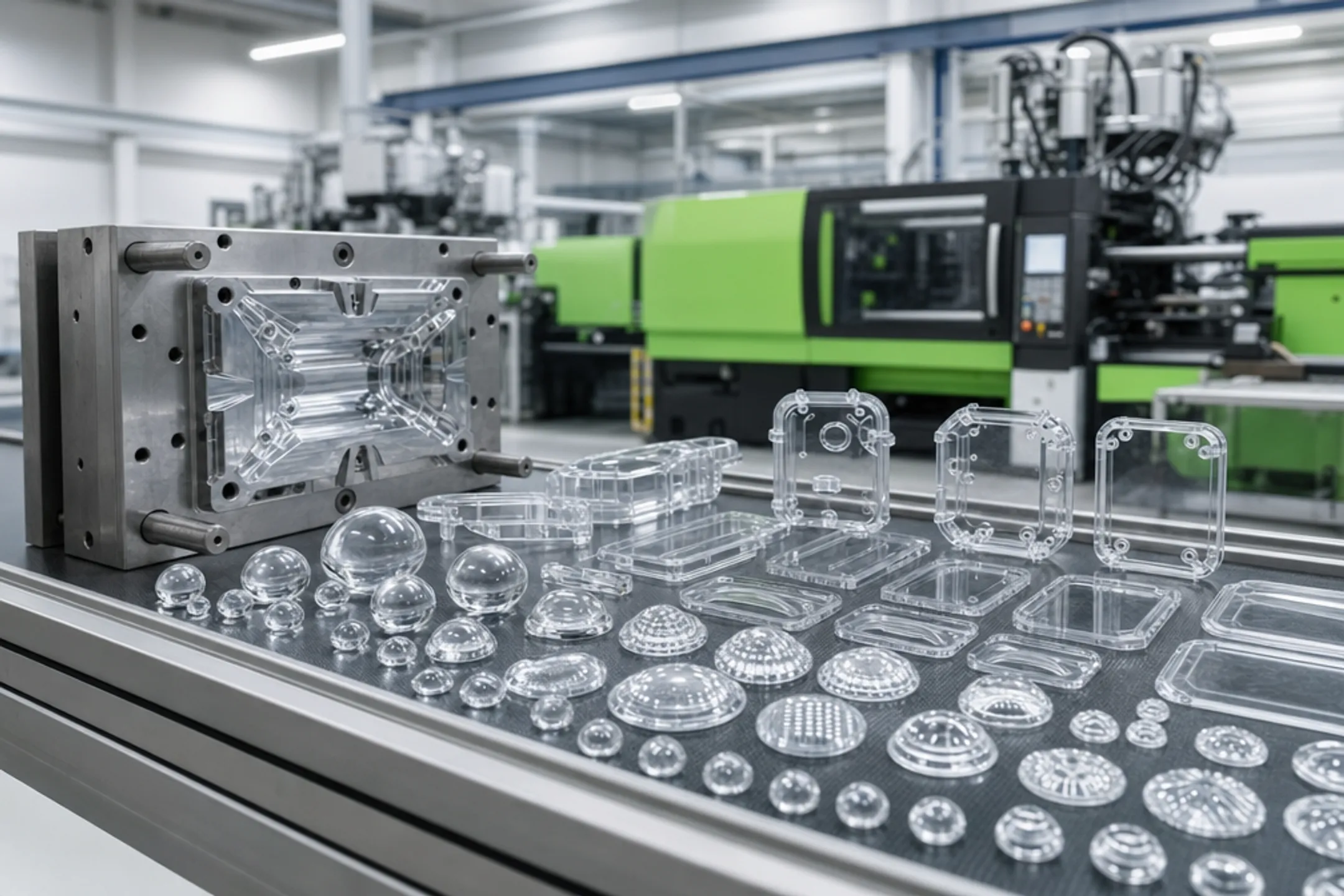

Precision-Molded Polymer Optics
Freeform and molded polymer optics deliver complex illumination geometries at high volume and lower cost than glass. Common materials include:
- PMMA (acrylic) and polycarbonate for general-purpose optics
- COC and COP for moisture resistance and clarity
- Ultem/PEI for heat resistance up to 200°C
- Thermoplastic polyimide for extreme heat environments up to 220°C
Injection molding also scales cleanly. A design that works as a prototype can move to production runs in the millions with minimal per-unit cost increase.
Coatings and Surface Precision
Anti-reflective and filter coatings reduce light loss across UV, visible, and near-infrared ranges. Single-point diamond turning (SPDT) delivers the surface precision high-performance illumination optics need. Typical results include 60-80 Å RMS surface finish and radius-of-curvature tolerances within ±0.5%.
LED adoption keeps pushing demand for this level of precision. LEDs represented roughly 48% of the installed lighting base in the US as of a 2020 baseline, according to the Department of Energy's lighting market characterization. Higher LED share means illumination designs must extract more usable light per watt through tighter surface control, better coatings, and well-matched micro-optics.
Key Challenges in Illumination Design
Every illumination project runs into the same set of friction points, regardless of industry.
Achieving uniformity without hot spots. Compact, high-density LED arrays are especially prone to uneven light distribution. A 2022 surgical lighting study found visible light-spot deformation and clear illuminance variation across luminaire types, even when products met baseline IEC uniformity criteria.

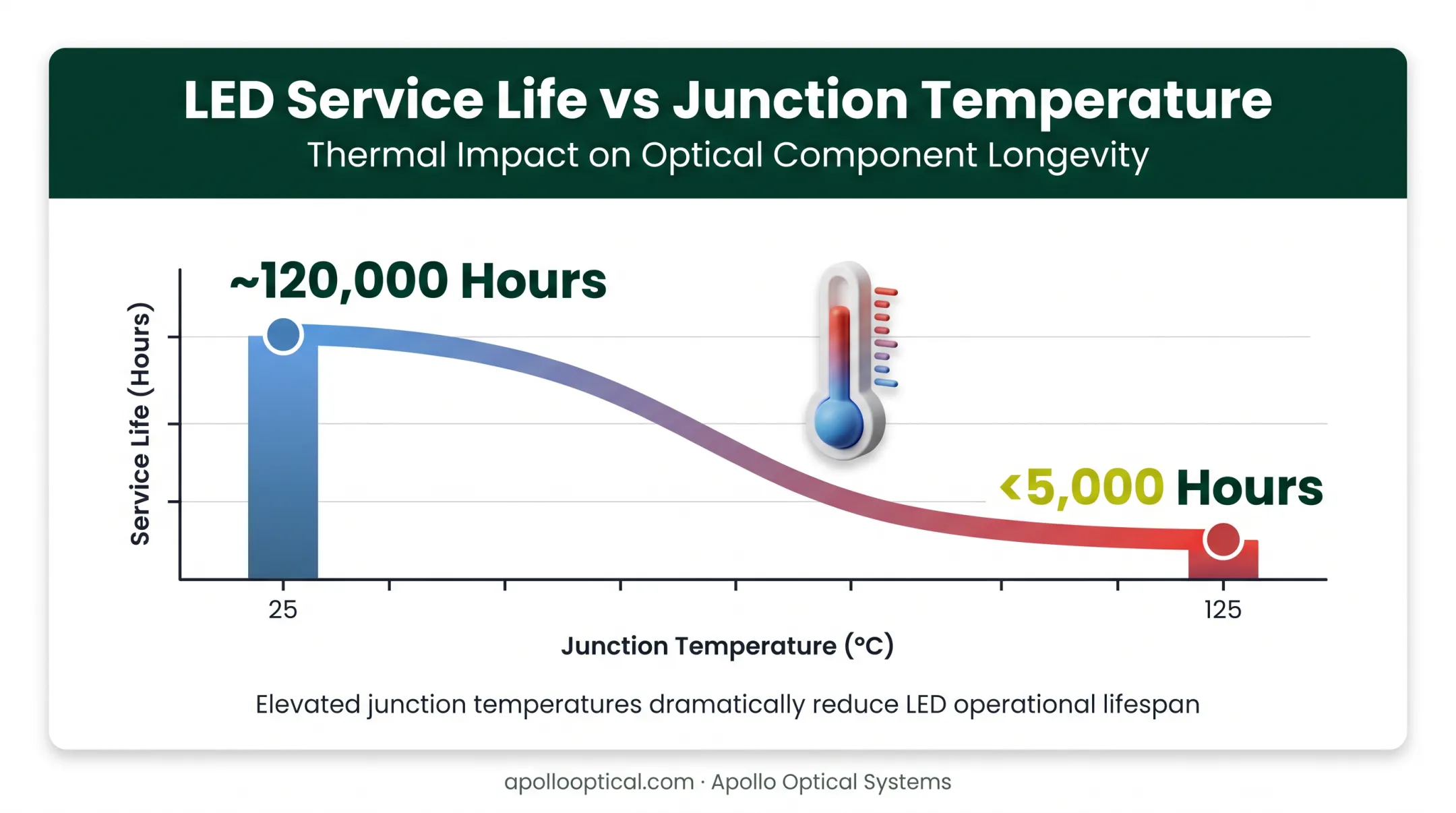

Thermal management. LEDs generate heat that degrades both light output and material stability. Research on high-power LED arrays found service life dropping from roughly 120,000 hours at 25°C junction temperature to under 5,000 hours at 125°C, according to a 2021 study in Microelectronics Reliability.
Optics and electronics teams need to coordinate early, not after the fact.
Tolerancing across production scale. A prototype that hits spec on a diamond-turning lathe won't automatically hold up in injection molding. Typical molding tolerances loosen to roughly ±1% on radius of curvature compared to ±0.5% for diamond-turned parts. That gap has to be engineered around from the start.
Balancing performance with manufacturability. High-volume automotive and commercial programs can't justify exotic geometries that don't mold cleanly. Every gain in brightness or uniformity gets weighed against cost per part.
Illumination Design Across Industries
Different industries push illumination optics toward different priorities.
| Industry | Illumination Priority | Typical Applications |
|---|---|---|
| Medical & Life Sciences | Consistency, reliability | Endoscope lenses, surgical headlamps, diagnostic instrumentation |
| Defense & Tactical | Ruggedness, low-light performance | Night vision, weapon-mounted lights, guidance systems |
| Automotive & Industrial | Scalability, cost efficiency | Signal lighting, sensor illumination, interior displays |
Medical devices demand illumination that performs identically across thousands of units. Polymer LED lenses for endoscopes need consistent beam shaping and homogenization batch after batch—patient safety leaves no room for drift.
Defense and tactical systems push optics into extreme conditions. Infrared-transmissive polymer optics support night vision and weapon-mounted lighting while keeping weight low for field-carried gear.
Automotive programs need scale above all else. LED reflectors, light guides, and TIR light pipes must perform the same on unit ten and unit ten million, at a cost that holds up in high-volume production.
How Apollo Optical Systems Supports Illumination Design Projects
Apollo Optical Systems builds illumination optics from initial design through high-volume production, all inside one facility in Rochester, NY.

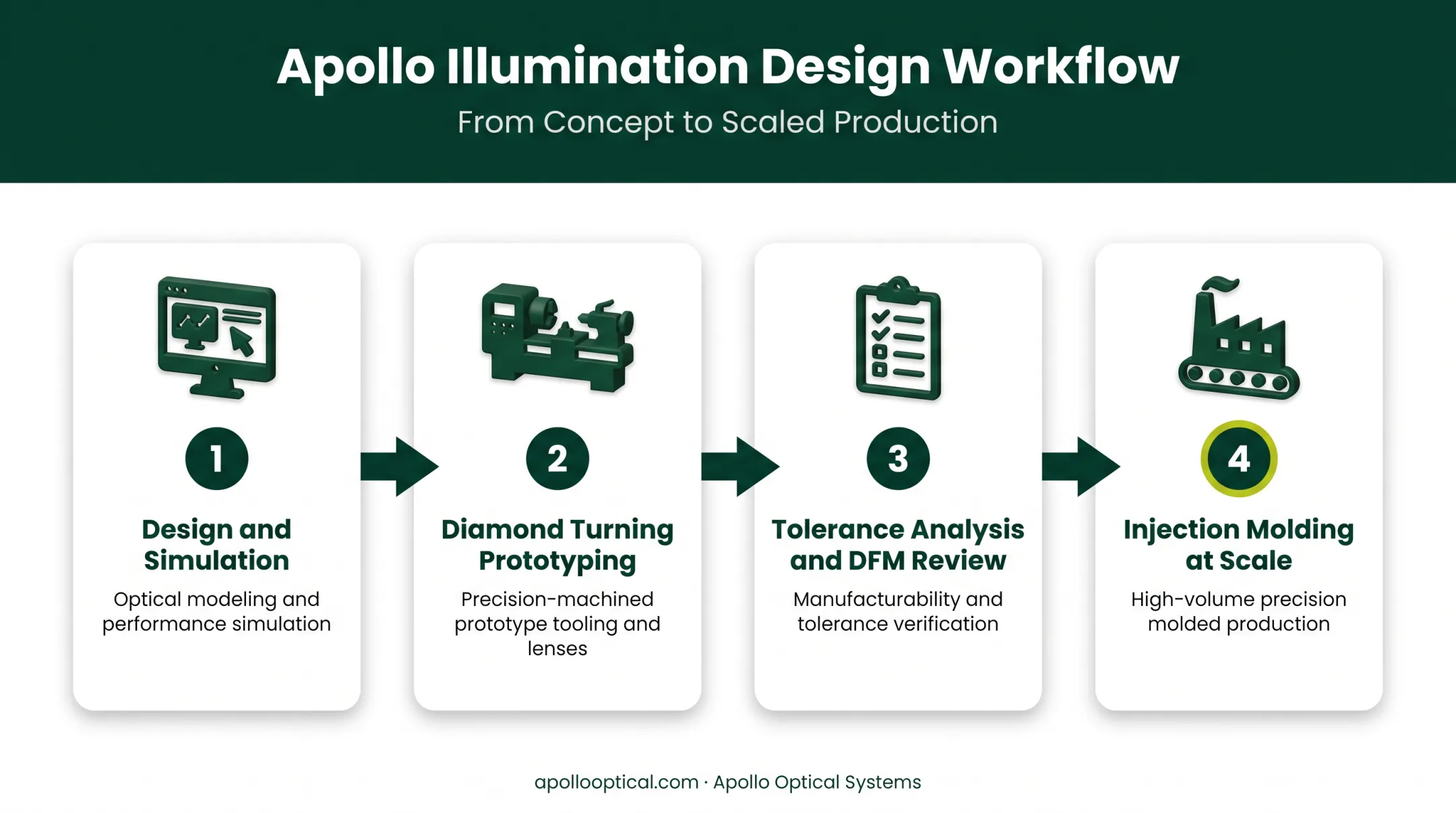

The process typically runs like this:
- Design and simulation using tools like ZEMAX, CODE V, and DIFFSYS to model beam-shaping optics, reflectors, or light guides
- Prototyping via single-point diamond turning, producing components from 1 mm to 300 mm in diameter for early validation
- Tolerance analysis and design-for-manufacture review to close the gap between prototype and production performance
- Injection molding at scale, moving from prototype quantities to millions of parts with in-house metrology validating repeatability throughout
Apollo's roots trace to Rochester Photonics Corporation, the 1989 University of Rochester spin-off that helped commercialize diffractive and micro-optics. That legacy shows up today in beam shapers, microlens arrays, and diffractive elements built for medical, defense, and industrial illumination challenges.
For companies moving an illumination concept from sketch to shipped product, design expertise paired with in-house manufacturing shortens the path. Molding, diamond turning, coating, and metrology under one roof cut vendor handoffs and compress timelines.
Frequently Asked Questions
What are the different types of illumination?
The primary types are general, functional/task, and accent illumination. Engineering applications also include structured illumination for metrology, diffuse illumination for imaging, and collimated illumination for targeting and sensing.
What is an example of illumination?
Examples range from architectural (a streetlight) to engineered (a surgical headlamp, an LED sensor indicator, or a diffractive optic spreading laser light evenly across a detector).
What's the difference between illumination design and lighting design?
Lighting design usually refers to aesthetic or architectural applications focused on mood and ambiance. Illumination design refers to the technical engineering of light for functional, performance-driven systems.
Why is uniformity important in illumination design?
Uneven illumination creates hot spots, shadows, or measurement errors. This is especially costly in imaging, inspection, and medical applications where accuracy is non-negotiable.
What materials are used in precision illumination optics?
Glass and polymer are both used, but polymer—PMMA, polycarbonate, COC, COP, and similar materials—offers cost-effective scaling through injection molding at full optical performance.
How does thermal management affect illumination design?
Heat from LEDs reduces light output over time and can degrade optical materials. Effective illumination design accounts for thermal loads early, coordinating optics and electronics rather than treating them separately.
