Advanced Diffractive Dot Projectors and Structured Light Optics

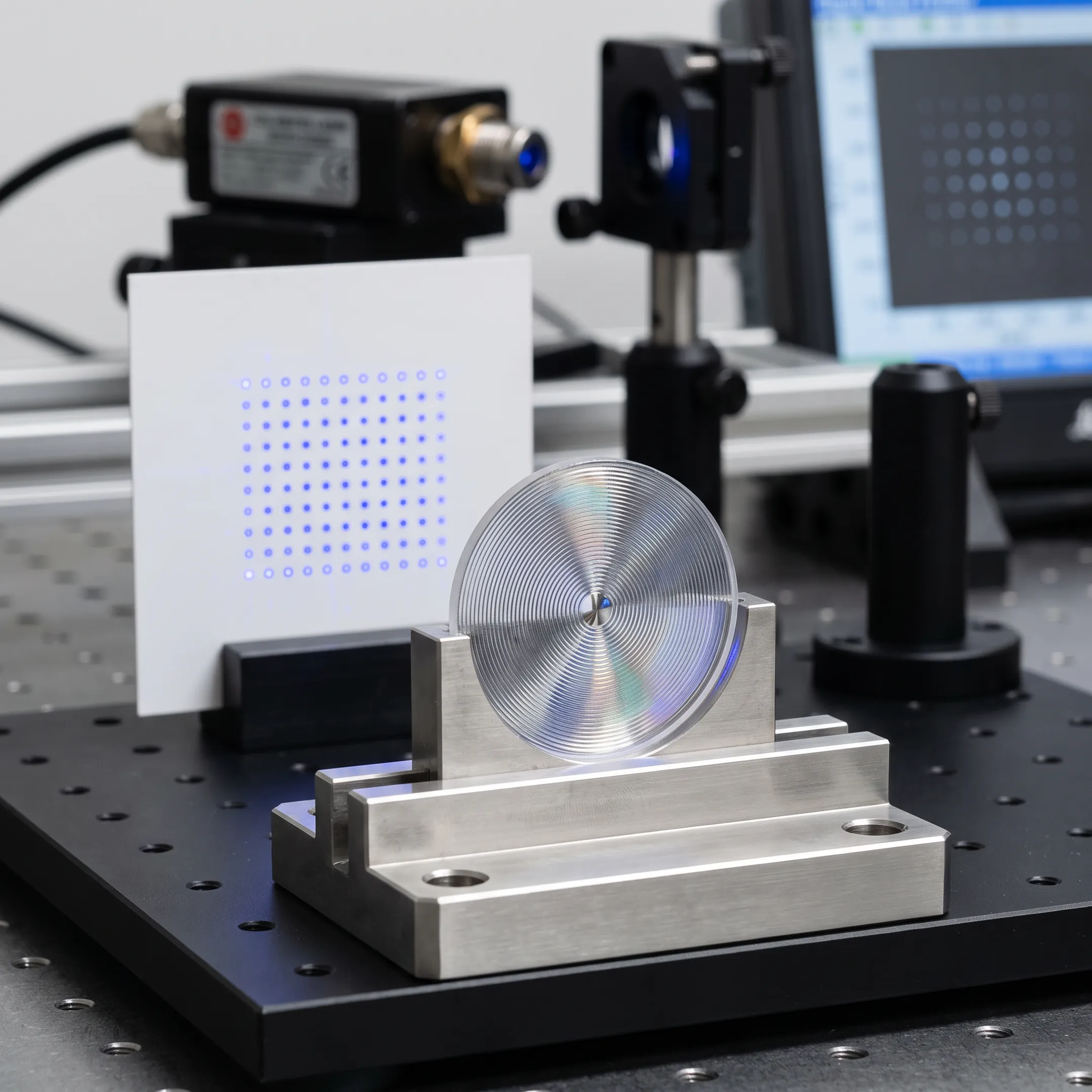

Diffractive dot projectors use a microstructured optical surface to divide and direct incoming light into a controlled pattern of dots. They are commonly used where a system needs repeatable structured illumination for sensing, alignment, imaging, or projection. The optical design determines the pattern geometry, angular distribution, efficiency, wavelength response, and tolerance to source and assembly variation.

Structured light optics create a known light pattern, such as dots, lines, grids, or shaped illumination, so a camera or sensor can interpret a scene or position. Applications can include machine vision, biometrics, scanning, automotive systems, medical devices, industrial inspection, consumer products, and optical alignment. The appropriate optic depends on wavelength, field of view, working distance, detector, and environmental requirements.

Refractive lenses shape light through curved surfaces and material refraction, while diffractive optical elements use fine surface structures to control light by diffraction. Diffractive designs can combine multiple light-control functions in a thin, lightweight element and may reduce system complexity. Material selection, wavelength range, efficiency targets, environmental exposure, and fabrication method should be evaluated for each application.

Yes. Apollo Optical Systems offers integrated optical and mechanical design, design verification, tolerance analysis, single-point diamond turning, injection molding, thin-film coatings, metrology, testing, and assembly. This combination enables early manufacturability review alongside optical performance work. Programs can begin with custom prototypes and progress toward production processes appropriate for the component geometry, material, volume, and performance objectives.

Apollo can diamond turn optical components in materials including acrylic, styrene, Zeonex, Zeonor, Ultem, nickel, brass, copper, and aluminum. Polymer selection can be guided by requirements for light transmission, birefringence, moisture resistance, heat resistance, chemical resistance, refractive index, dimensional stability, and cost. The selected material must also suit the fabrication, coating, and intended operating environment.

Many structured light and diffractive optical surfaces can be produced through injection molding when the design is optimized for the process. Apollo provides polymer injection molding for optical components, including diffractive surfaces and custom diffusers. A design-for-manufacturing review helps assess replication requirements, material choice, tolerances, anticipated volume, and the production approach needed to preserve optical performance consistently.

Testing should confirm the optical and mechanical characteristics that matter to the application, such as surface form, roughness, topography, dimensional features, transmitted pattern quality, and polarization-related behavior where relevant. Apollo’s in-house metrology includes coordinate measurement, optical profiling, microscopy, white-light interferometry, interferometers, and polarimetry. Prototype validation can compare measured performance against the specified design requirements before production.

Yes. Apollo offers thin-film optical coatings for plastic components, including anti-reflective, filter, mirror, and beamsplitter coatings across UV, visible, and NIR ranges. Polymer optics require coating processes that account for temperature limitations differently than glass. Coating selection is determined by wavelength, reflectance or transmission goals, surface material, durability needs, and the optical system configuration.
