Pancake Lens Manufacturing for VR Headsets

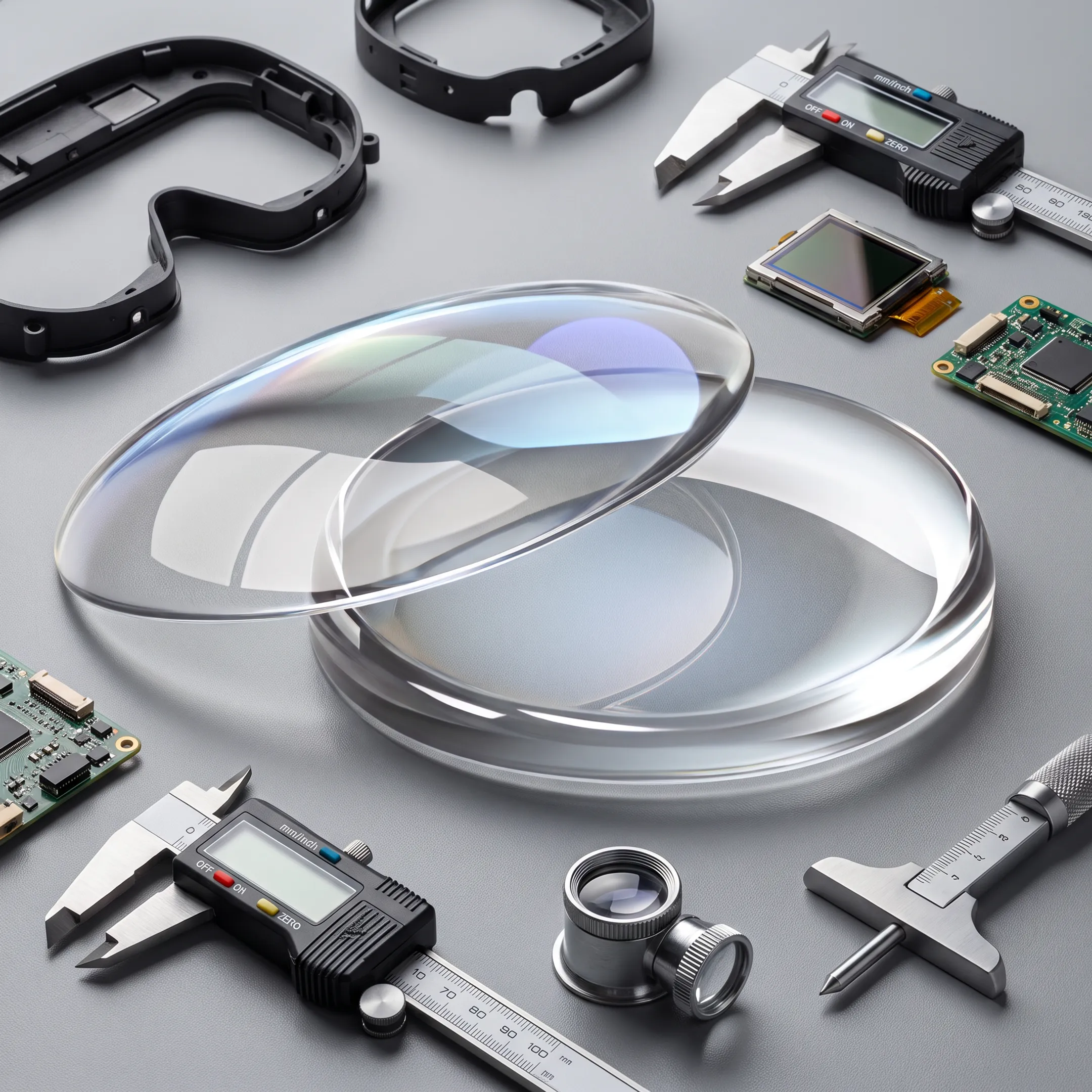

A pancake lens is useful when a VR headset needs a shorter optical path and a more compact form factor than traditional lens arrangements allow. It uses folded optical paths, typically with reflective and polarization-sensitive elements, to reduce display-to-lens distance. In VR systems, this can support slimmer headset designs while maintaining the optical performance required for immersive viewing.

VR pancake lens development can require integrated optical and mechanical design, tolerance analysis, prototype fabrication, polymer molding, thin-film coatings, assembly, and metrology. Apollo Optical Systems provides these connected capabilities in-house. This supports earlier manufacturability assessment and helps teams coordinate precision optical surfaces, polymer material selection, coating requirements, assembly interfaces, and measurable performance criteria across a program.

Certain pancake lens components can be produced through polymer injection molding when the optical design, selected material, surface geometry, and production-volume goals are appropriate. Injection molding supports repeatable fabrication of spherical, aspheric, Fresnel, and diffractive surfaces. A design-for-manufacturing review is important to determine whether molding can achieve the required optical performance and tolerance targets for a specific component.

Anti-reflective coatings reduce reflections at optical interfaces within a VR system. Controlling reflected light can help manage unwanted ghosting and improve light transmission for the intended wavelength range. Polymer optics require specialized coating processes because plastics have different temperature limitations than glass. Coating selection should be evaluated alongside substrate material, optical architecture, durability needs, and the system’s overall performance targets.

Precision polymer lenses may use materials such as acrylic, polystyrene, Zeonex, Zeonor, polycarbonate, or other specialty optical resins. Material selection depends on optical clarity, refractive index, birefringence, moisture resistance, thermal stability, chemical resistance, and cost. For polarization-sensitive optical systems, low-birefringence material behavior can be especially important. Apollo evaluates material characteristics against the application’s functional and manufacturing requirements.

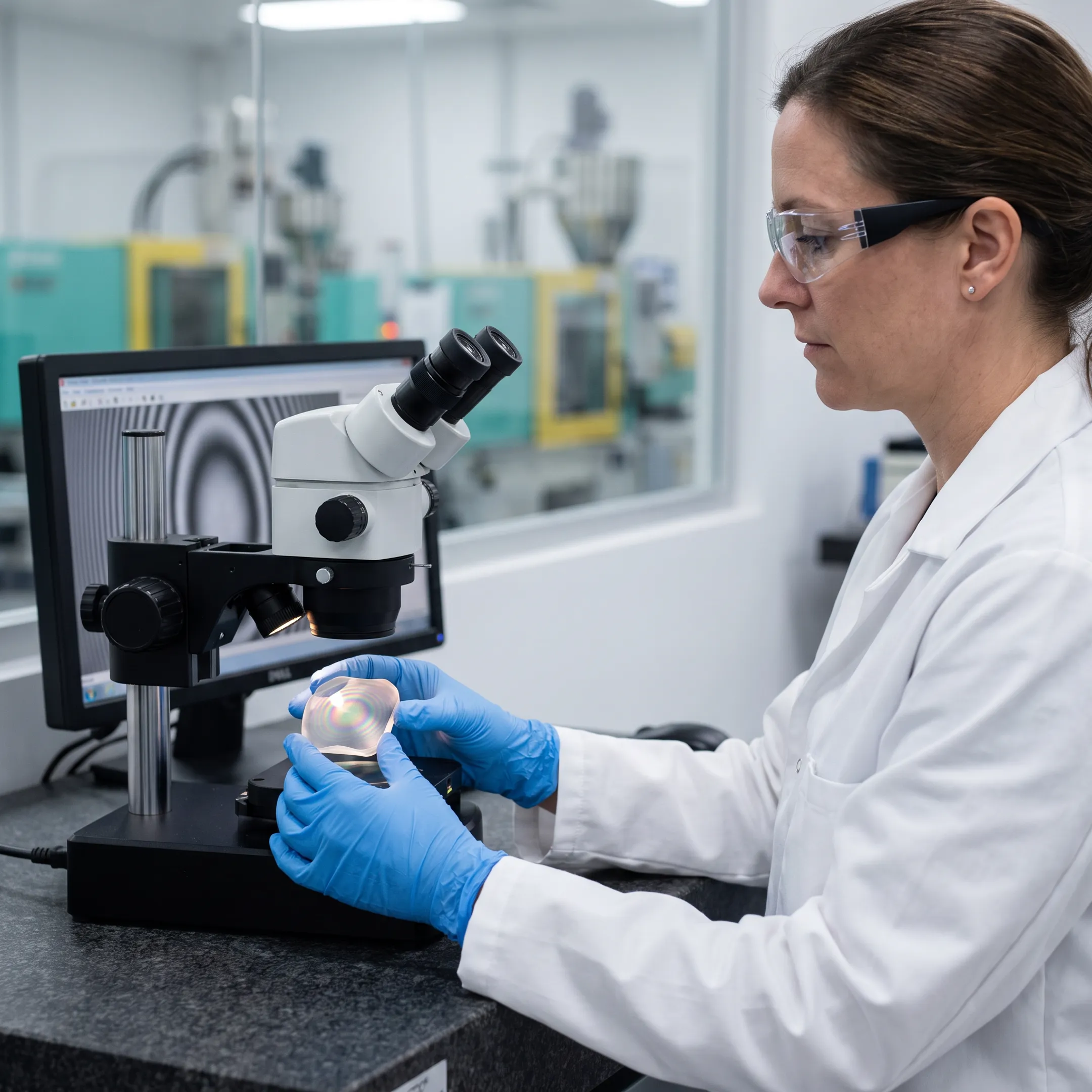

Verification begins with analysis and prototype evaluation, then continues with measurement of critical part characteristics. Apollo’s in-house metrology includes interferometry, optical profiling, microscopy, coordinate measurement, and polarimetry for polarization-related retardation. These tools help assess surface form, roughness, topography, dimensions, and other defined parameters. The specific validation plan should match the lens design, optical architecture, tolerances, and acceptance criteria.

Yes. Single-point diamond turning can create small quantities of custom optical prototypes before production molding. This approach supports design verification, optical testing, and early evaluation of critical surfaces such as aspheres, diffractives, Fresnel structures, and conics. Findings from prototype work can inform design refinements and manufacturing planning, helping teams make more informed decisions before committing to tooling and higher-volume production.

A useful project brief includes optical performance targets, available optical prescriptions or models, mechanical envelopes, display and illumination information, material preferences, coating needs, target volumes, schedule expectations, and defined test criteria. If the design already exists, Apollo can perform design verification and tolerance analysis. Providing these details early helps focus discussions on manufacturability, technical risks, and practical development options.
