Costs range from $5,000 for a simple prototype tool to $150,000+ for a complex multi-cavity production mold. That's a massive spread, and for good reason.
Mold price depends on optical complexity, tolerance requirements, cavitation, and material choices. This guide breaks down the pricing tiers, the cost components hiding inside every quote, and how to budget without overspending or underbudgeting.
Key Takeaways
- Optical mold costs typically fall between $5,000 and $150,000+, driven by complexity and volume
- Tolerance requirements and cavitation count are the two biggest price drivers
- Prototype tooling suits low-volume testing; production tooling suits scale
- Higher upfront tooling spend often lowers per-part costs and rework down the line
How Much Does an Optical Mold Cost? (Pricing Overview)
Optical mold pricing has no single sticker price. Every quote turns on optical complexity, tolerance requirements, cavity count, and mold material.
Misjudging these factors gets expensive fast. Common mistakes include:
- Underbudgeting for tooling because early quotes only covered a single cavity
- Choosing single-cavity tooling when actual production volume needs multi-cavity output
- Missing rework and iteration costs after the first test shots reveal problems

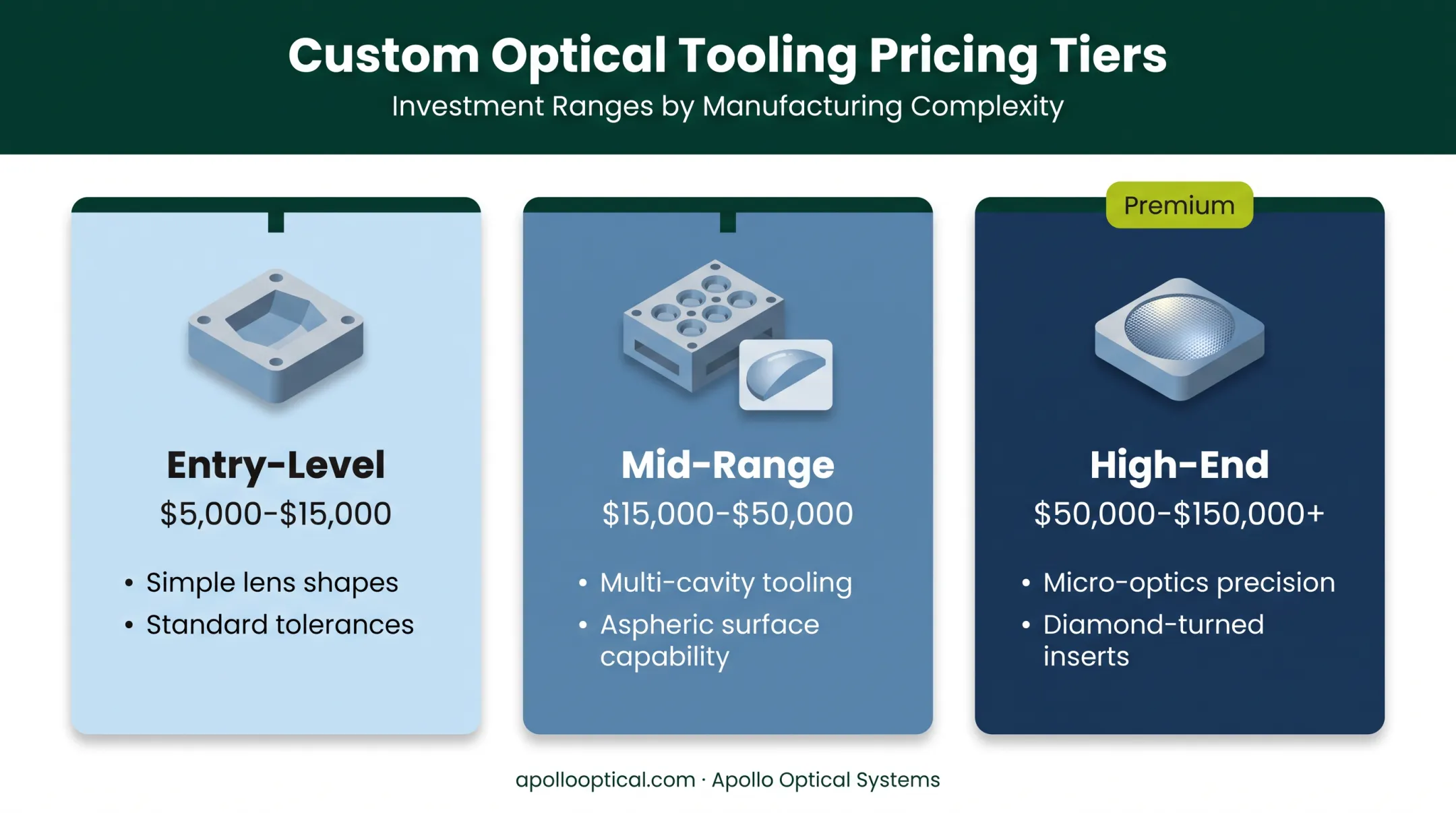

Typical Cost Range
| Tier | Price Range |
|---|---|
| Entry-level / basic setup | $5,000–$15,000 |
| Mid-range / standard setup | $15,000–$50,000 |
| High-end / advanced setup | $50,000–$150,000+ |
These figures typically include mold steel, machining, and basic test-shot validation. They exclude part design fees, secondary coatings, and assembly work — all of which get quoted separately.
Entry-Level Optical Molds
Entry-level molds usually mean single-cavity tooling, simple geometry (basic plano-convex lenses), and standard tolerances.
They fit prototypes, low-volume runs, and proof-of-concept work where speed matters more than long-term durability.
Mid-Range Optical Molds
Mid-range tooling adds multi-cavity layouts, aspheric or freeform surfaces, tighter tolerances, and hardened steel inserts.
This tier suits production runs for medical devices, automotive lighting, and industrial sensors — work that needs consistency across thousands of parts.
High-End Optical Molds
High-end molds cover micro-optics or diffractive features, diamond-turned inserts, high-cavitation tooling, and advanced metrology validation.
They are built for high-volume consumer electronics, defense-grade optics, and any application that needs sub-micron precision.
Key Factors That Affect the Cost of an Optical Mold
Pricing hinges on technical complexity, production scale, and business requirements. Each factor below shifts tooling cost in a different way.
Optical Design Complexity
A simple spherical or plano surface costs far less to tool than an aspheric, freeform, or diffractive geometry. Micro-optic features requiring diamond-turned inserts push costs up significantly, since these surfaces demand sub-micron machining accuracy that standard tooling can't achieve.
Number of Cavities
- Single-cavity: Lower upfront cost; slower output per cycle
- Multi-cavity: Higher build cost; lower per-part cost at volume
- Geometry limit: Difficult optical surfaces often can't support high cavity counts without sacrificing yield
Tolerance and Precision Requirements
Sub-micron surface accuracy and tight form tolerances demand advanced tooling and metrology. Some visible-imaging lens programs require 10–20 nm surface roughness and 2 µm aspheric surface accuracy — specs that often take multiple molding, measurement, and insert-adjustment cycles to hit.
Partners with in-house diamond turning and metrology, such as Apollo Optical Systems, can validate tight-tolerance molds on-site—avoiding the cost and delay of third-party metrology on every iteration.
Mold Material and Insert Construction
- Standard tool steel: Fits lower-volume tooling at a lower build cost
- Hardened or coated inserts: Longer mold life for high-volume runs; fewer refurbishment cycles
Customization and Design Iteration
- Fully custom designs: More design cycles and mold revisions than adapting a proven design
- Each revision: Adds engineering time and often a new test shot
Volume and Production Intent
- Prototype / low-volume molds: Built for speed and flexibility, not maximum durability
- High-cavitation production tooling: Higher upfront cost; tuned for long-term consistency and lower cost per unit across millions of parts

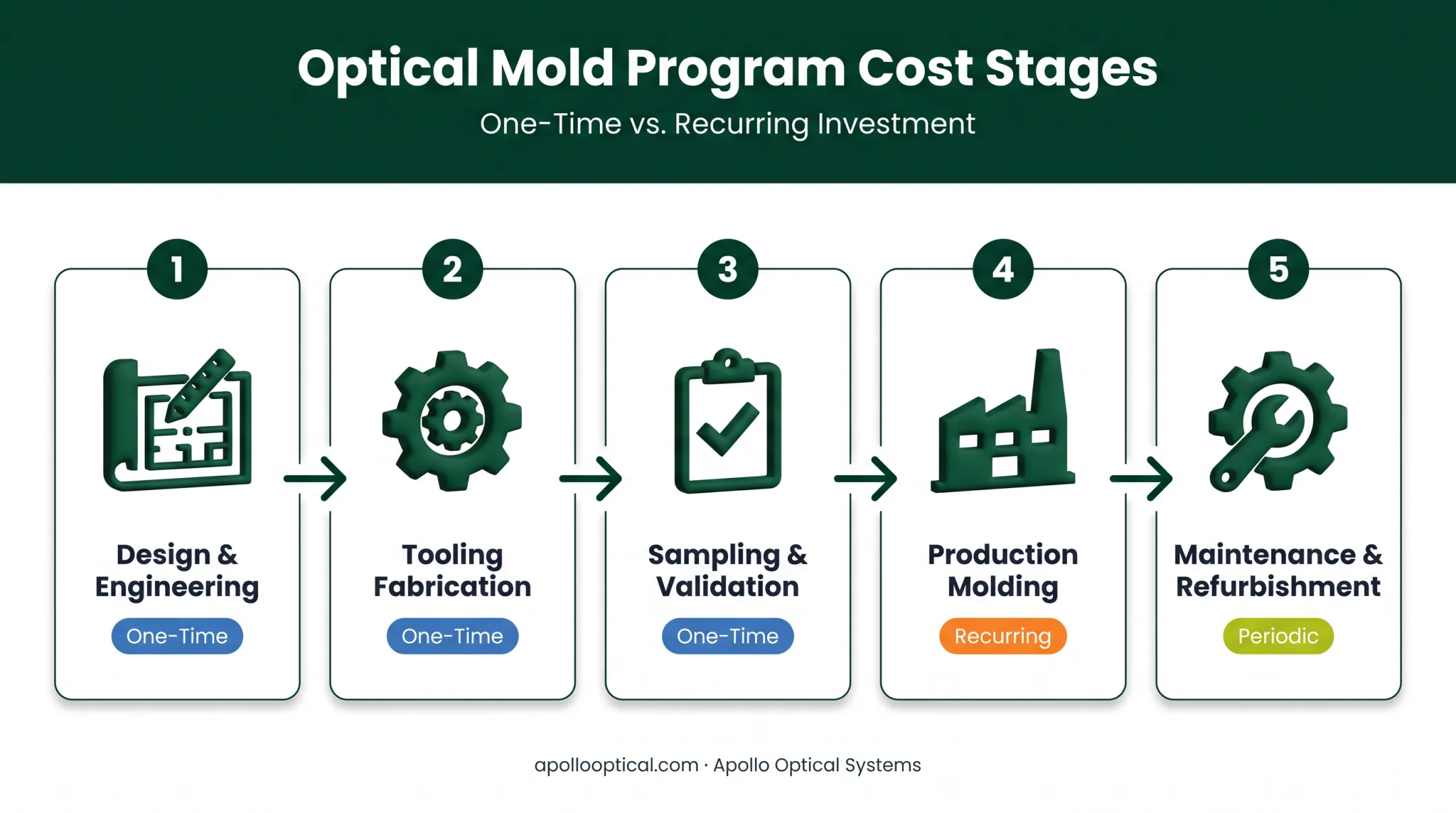

Cost Breakdown of an Optical Mold Program
Total program cost extends well beyond the mold itself. Here's what typically shows up on an invoice, and when.
| Cost Component | One-Time or Recurring | What It Covers |
|---|---|---|
| Mold design & engineering | One-time | Optical and mechanical design, simulation, DFM review |
| Tooling / mold fabrication | One-time | Precision machining, diamond turning of inserts, mold base construction |
| Sampling & first-article validation | One-time | Test shots, metrology verification, iteration if needed |
| Production molding & assembly | Recurring | Per-part injection molding cost, coating, assembly |
| Maintenance & mold refurbishment | Periodic | Mold cleaning, insert polishing, cavity replacement over mold lifespan |
Design and engineering work sets the foundation. This is where optical and mechanical engineers use tools like ZEMAX and SOLIDWORKS to model the design, run simulations, and confirm manufacturability before a single piece of steel gets cut.

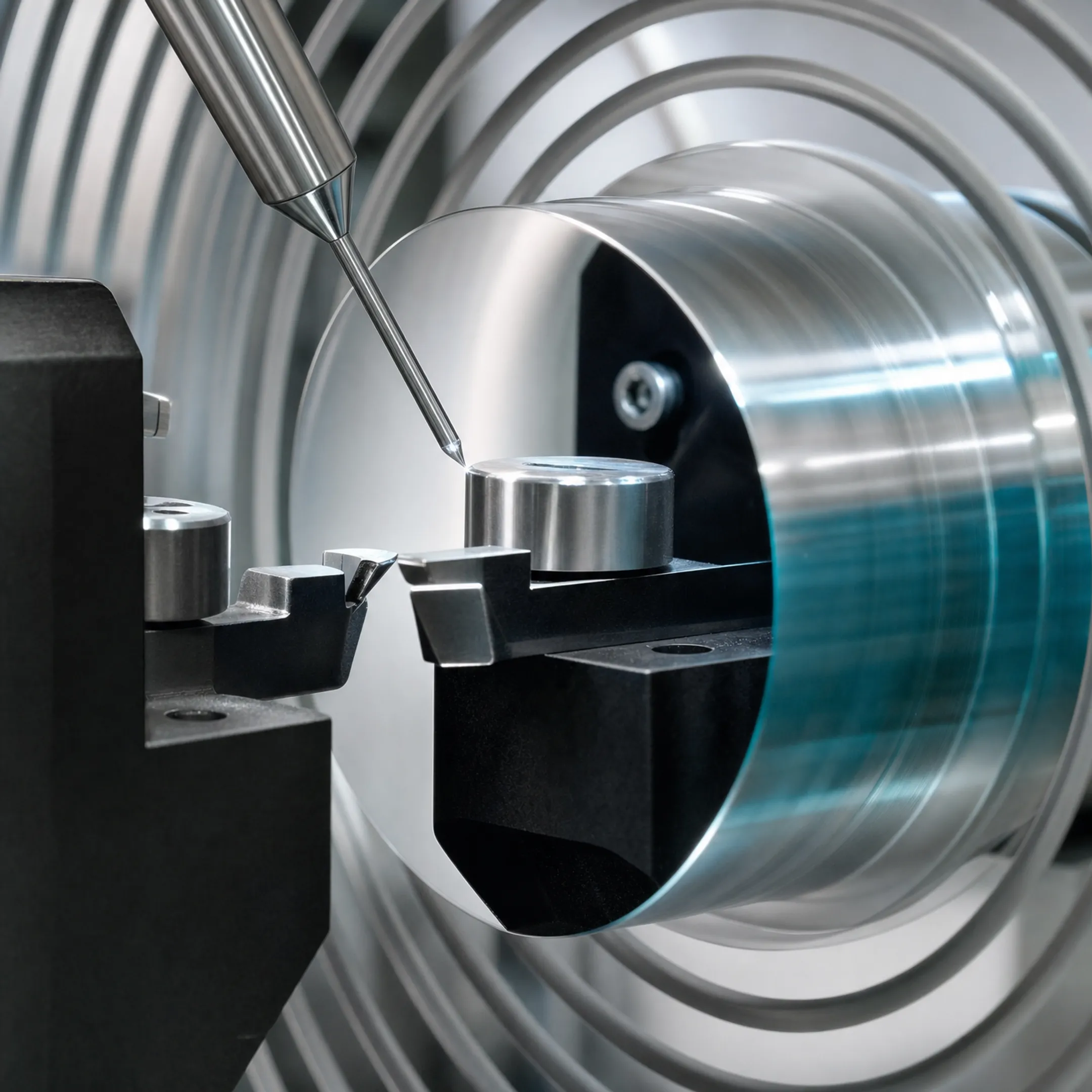

Tooling fabrication is typically where the bulk of the one-time cost lands, especially when diamond-turned inserts are involved. Single-point diamond turning can produce optical surfaces with radii as small as 1.5 microns, which is the kind of precision needed for aspheric, diffractive, or freeform geometries.
Sampling and validation catch problems before they scale. Metrology tools like coordinate measuring machines and interferometers check whether test shots actually meet spec, so an early mismatch doesn't turn into thousands of defective parts later.
Production molding and assembly drive the recurring cost. Per-part pricing covers injection molding, optical coatings, and any assembly into the finished component or sub-system—and that cost scales with volume.
Maintenance and refurbishment protect the tool over its full life. Periodic cleaning, insert polishing, and eventual cavity replacement keep part quality stable and extend the value of the original tooling investment.

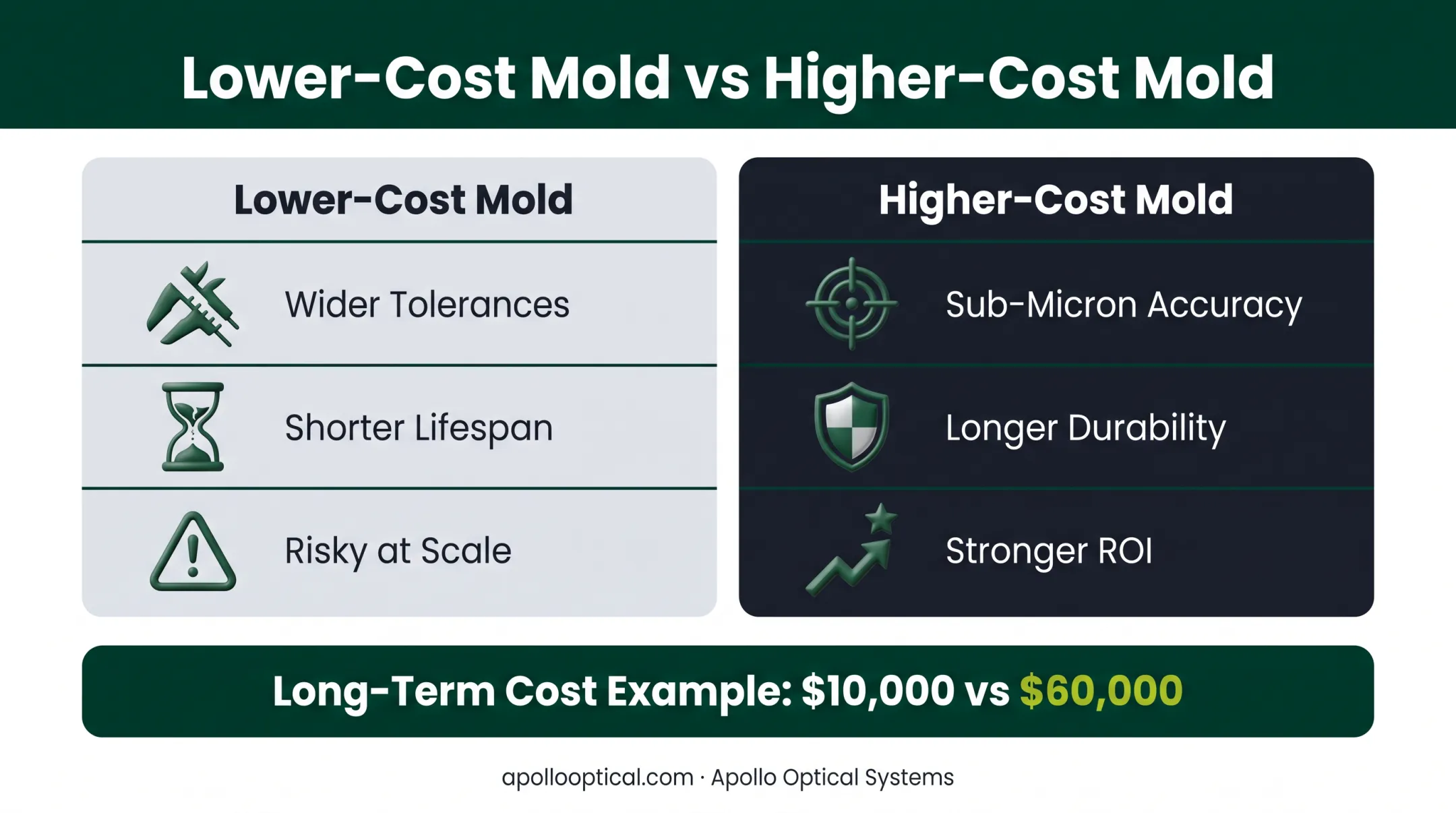

Low-Cost vs High-Cost Optical Molds — What's the Difference?
Budget tooling and premium tooling solve different problems. The gaps show up in precision, lifespan, and cost at volume.
| Factor | Lower-Cost Mold | Higher-Cost Mold |
|---|---|---|
| Precision & optical performance | Wider tolerances, more surface imperfections | Sub-micron accuracy, tighter surface control, better light transmission |
| Durability & mold lifespan | Shorter usable life; more frequent refurbishment | Hardened inserts and coatings for longer production runs |
| Long-term value | Fine for prototypes; risky to scale on directly | Lower per-part cost, fewer defects at volume, stronger ROI |
The trap is judging tooling purely on sticker price. A $10,000 mold that needs constant rework at 50,000 units costs more in the long run than a $60,000 mold built to run cleanly for years.
How to Estimate the Right Budget for an Optical Mold
The right budget balances performance needs against production volume — not just the lowest quote you can find.
Weigh these factors before committing:
- Intended application (medical, defense, automotive, consumer): each carries different tolerance and validation demands
- Required optical tolerances: tighter specs mean more machining time and metrology
- Expected annual volume: determines whether single-cavity or multi-cavity tooling makes sense
- In-house vs outsourced coating/assembly needs: affects total program cost, not just the mold price
- Total program timeline: rushed programs sometimes cost more due to expedited machining fees
An end-to-end partner such as Apollo Optical Systems—covering mold design, injection molding, diamond turning, and metrology—can cut iteration costs and shorten time-to-market. Fewer vendor handoffs means fewer chances for miscommunication and rework.
Common budgeting mistakes to avoid
- Focusing only on the upfront mold price and ignoring per-part costs
- Ignoring maintenance and refurbishment costs over the mold's lifespan
- Over-specifying tolerances beyond what the application actually needs
- Choosing the lowest-cost mold maker without evaluating reliability or supply chain security
Conclusion
Optical mold costs vary significantly based on design complexity, cavitation, tolerances, and volume. A simple single-cavity prototype tool might run $5,000. A high-precision, multi-cavity production mold with diamond-turned inserts can exceed $150,000.
Knowing these cost drivers helps you budget accurately and avoid expensive rework later. The best number balances precision, durability, and long-term production value for your application—not just the lowest quote on day one.
If you are scoping a polymer optic program, Apollo Optical Systems can help map mold cost to your tolerance, volume, and performance targets before tooling begins.
Frequently Asked Questions
How much does an optical mold cost?
Optical molds typically range from $5,000 for simple prototype tooling to $150,000+ for complex, high-cavitation production molds. The price within that range depends on geometry, tolerances, and cavity count.
Why are optical molds so expensive?
Tight tolerances, specialized mold steel, and diamond-turned inserts drive up cost. Optical surfaces often require precision machining measured in nanometers, which few manufacturers can perform in-house.
How do you calculate the cost of an optical mold?
Build the estimate from four inputs: design complexity, cavity count, tolerance class, and expected volume. Simple single-cavity, wider-tolerance tools land low; multi-cavity, tight-tolerance production tools land high.
What is the average lifespan of an optical mold?
Most production optical molds last from tens of thousands to over a million cycles, depending on steel grade, coatings, and maintenance. Hardened steel with coated inserts typically runs longest before refurbishment.
Is it cheaper to prototype with a single-cavity mold before scaling to production tooling?
Single-cavity prototype molds reduce upfront risk and let you validate a design before committing to production tooling. However, plan the prototype alongside your eventual production volume needs to avoid redesign costs later.
What's included in a typical optical mold quote?
A standard quote covers design and engineering, tooling fabrication, and first-article sampling/validation. It typically excludes secondary processes like coatings, assembly, and long-term maintenance.
