Pancake lenses fold the optical path using polarization and reflection, letting engineers cut headset depth without gutting image quality. Meta says Quest 3's twin two-element pancake lenses deliver a 40% slimmer optical profile than Quest 2.
This article breaks down how pancake lenses work, how they stack up against Fresnel and aspheric designs, where the engineering trade-offs bite, and what it actually takes to manufacture them at scale.
Key Takeaways
- Pancake lenses fold light through multiple reflections, delivering a 40% slimmer optical profile than Fresnel (Meta Quest 3)
- Optical stack uses reflective polarizers, quarter-wave plates, and semi-reflective mirrors to bounce light to the eye
- Main trade-off is light loss — a 2025 study measured just 12.5% efficiency for unpolarized input
- Manufacturing hinges on micron-level film lamination and optical axis alignment, not lens curvature alone
What Is a Pancake Lens? (Definition & Role in VR)
A pancake lens is a folded-optical-path lens assembly. Instead of light traveling in a straight shot from display to eye, it bounces back and forth through polarizing layers, compressing a long optical path into a physically shallow module.
The name comes from shape, not function. Traditional lenses need deep curvature to bend light correctly. Pancake stacks are flat and thin, built from stacked layers rather than a single thick element.
If you've searched "what type of lens is used in VR," the honest answer is one of three categories:
- Fresnel: grooved, thin, budget-friendly
- Aspheric: continuously curved, sharp edge-to-edge clarity
- Pancake: folded path, now standard in premium slim headsets
And "VR lens" itself is a broad term. It refers to any near-eye optical element that takes a display's close-up, diverging light and converts it into a comfortable, properly focused virtual image. Pancake, Fresnel, and aspheric designs are all just different ways of solving that same problem.
Why It Matters for Headset Design
Freeing up depth isn't just about looking sleek. Every millimeter saved in the optical module is a millimeter available for batteries, sensors, or cooling. That's the real reason pancake lenses matter: they change what else fits inside the headset.
How Pancake Lens Optics Work

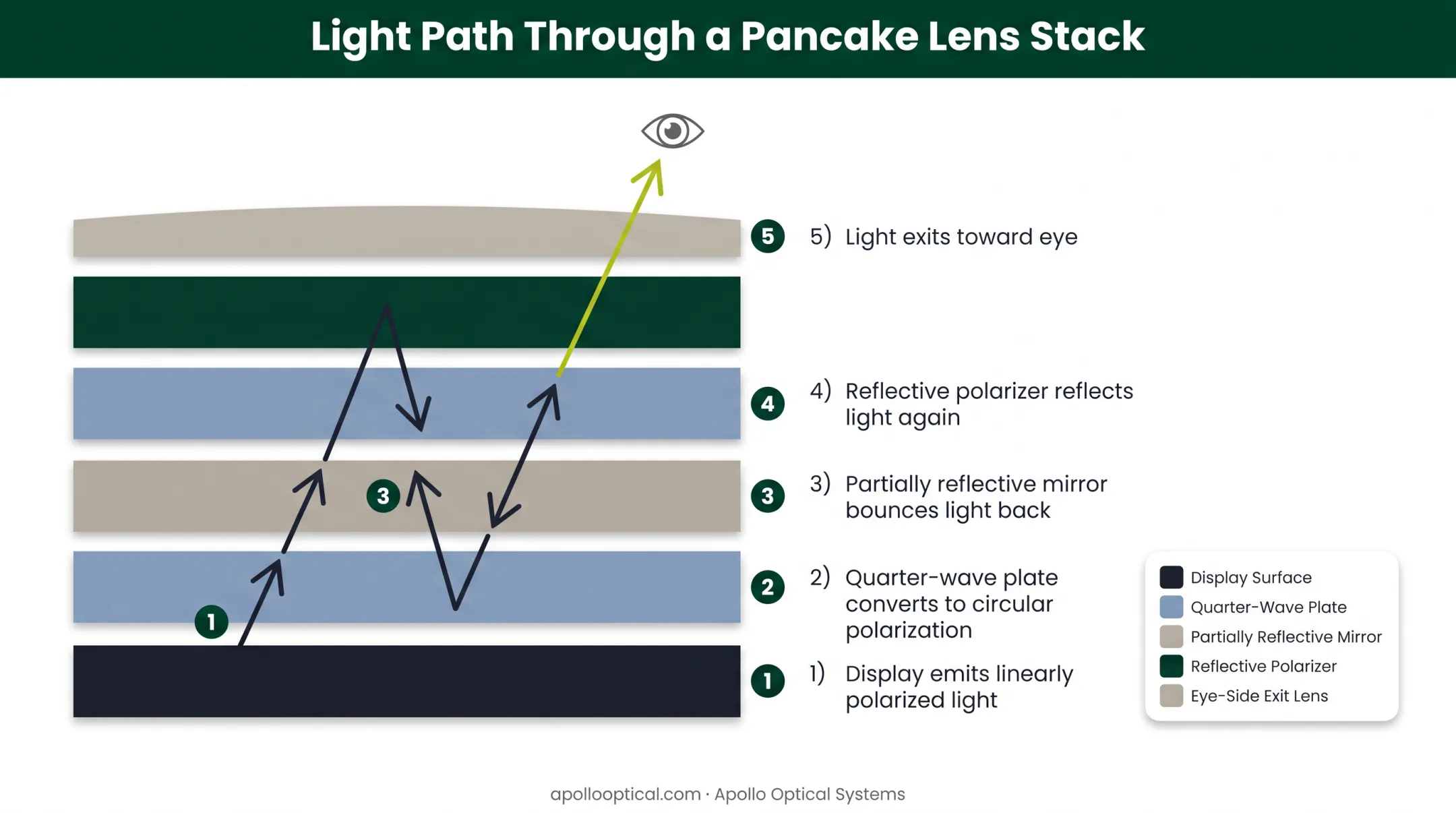

Light travels through a pancake stack in five passes:
- The display emits linearly polarized light.
- A quarter-wave plate, oriented 45 degrees off-axis, converts it to circular polarization.
- A partially reflective mirror bounces part of that light back.
- A reflective polarizer reflects it again toward the mirror.
- After the final pass, light exits toward the eye in the correct polarization state.
That back-and-forth is the "fold." A Meta patent describing this pancake lens assembly confirms the arrangement reduces back focal distance by reusing the same optical surfaces multiple times.
Why this matters for image quality:
- Multiple passes correct distortion better than a single-pass lens
- Edge sharpness improves compared to basic Fresnel optics
- Contrast increases because polarization filtering blocks unwanted stray light
That contrast gain has a cost. Partial reflections can create ghost images if stray light isn't suppressed. Engineers control this with precise coatings and polarization-axis alignment — a small miss shows up as faint duplicate images at high-contrast edges.
The same folding that cleans up the image also shortens the optical path, which is why pancake headsets sit closer to the face. Quest 3 reaches a 110-degree horizontal FOV with a twin-element pancake design — a clear compactness gain over Fresnel-based Quest 2.
Meta does not publish exact millimeter depth figures for either headset, so thickness comparisons stay qualitative.
Pancake vs. Fresnel vs. Aspheric Lenses: Choosing the Right Design
Each lens type solves the same problem differently. None is universally "better." The right choice depends on what you're optimizing for.

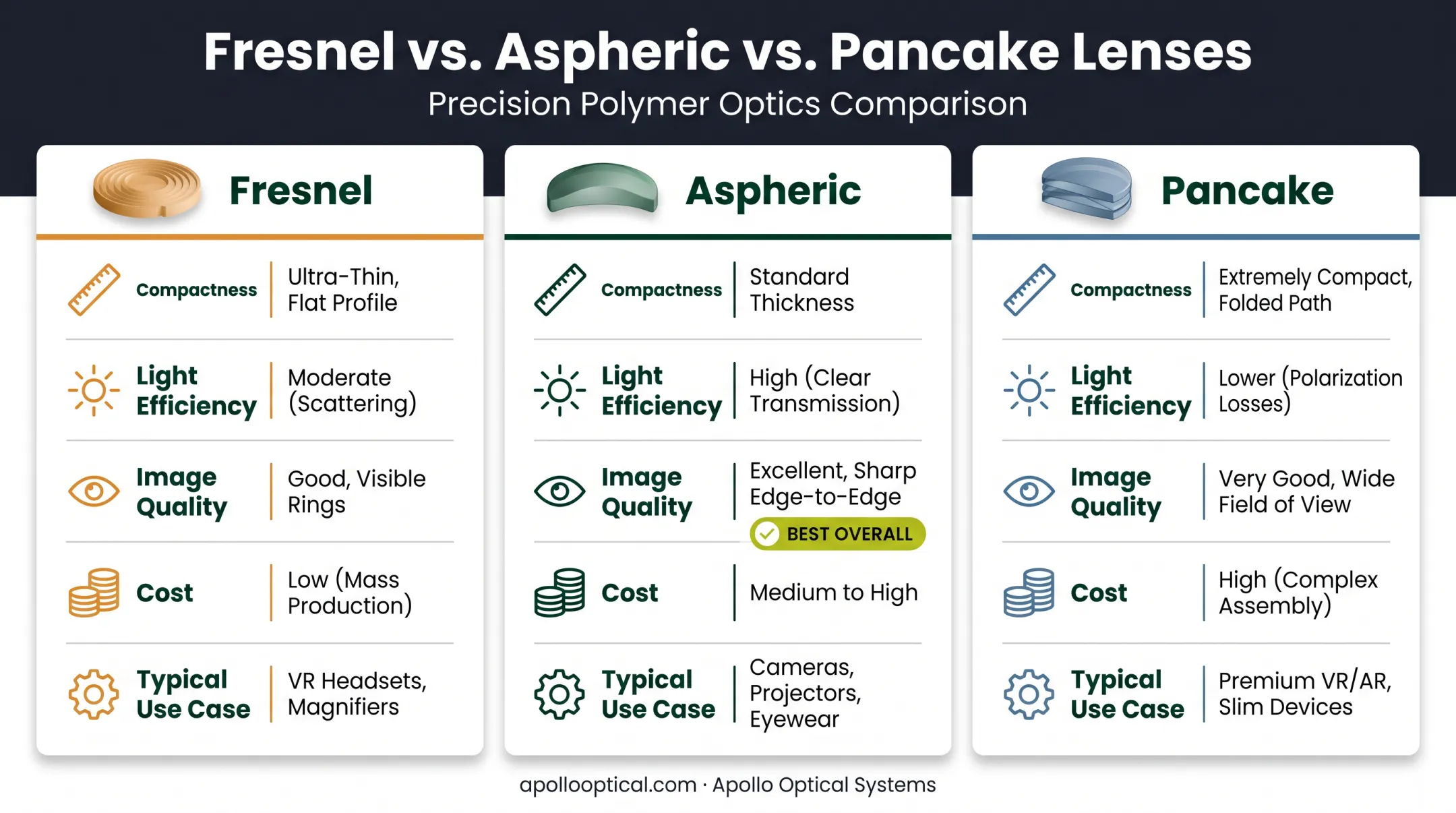

| Factor | Fresnel | Aspheric | Pancake |
|---|---|---|---|
| Compactness | Moderate | Poor (needs depth) | Excellent |
| Light efficiency | High | High | Lower (multi-pass loss) |
| Image quality | Prone to god rays, edge distortion | Excellent edge-to-edge clarity | Strong contrast, some ghosting risk |
| Cost | Low | Moderate | Higher (precision assembly) |
| Typical use | Budget/older headsets | Depth-tolerant premium units | Slim premium headsets |
Fresnel lenses use grooved rings to approximate a thick lens while removing material. They're cheap and bright, but those grooves cause "god rays" (streaking artifacts around bright points) plus visible shadowing at the edges.
Aspheric lenses use a continuously varying curvature to correct spherical aberration without grooves. Image clarity is excellent, but the physical lens needs more depth and material, which conflicts directly with slim form-factor goals.
Pancake lenses split the difference on image quality but win decisively on compactness. That's why they've become the default for headsets chasing a slim, glasses-like profile. Manufacturers accept the brightness trade-off to gain that compact form factor.
Engineering Trade-offs and Design Challenges
Pancake optics don't come free. Four challenges dominate the design conversation.

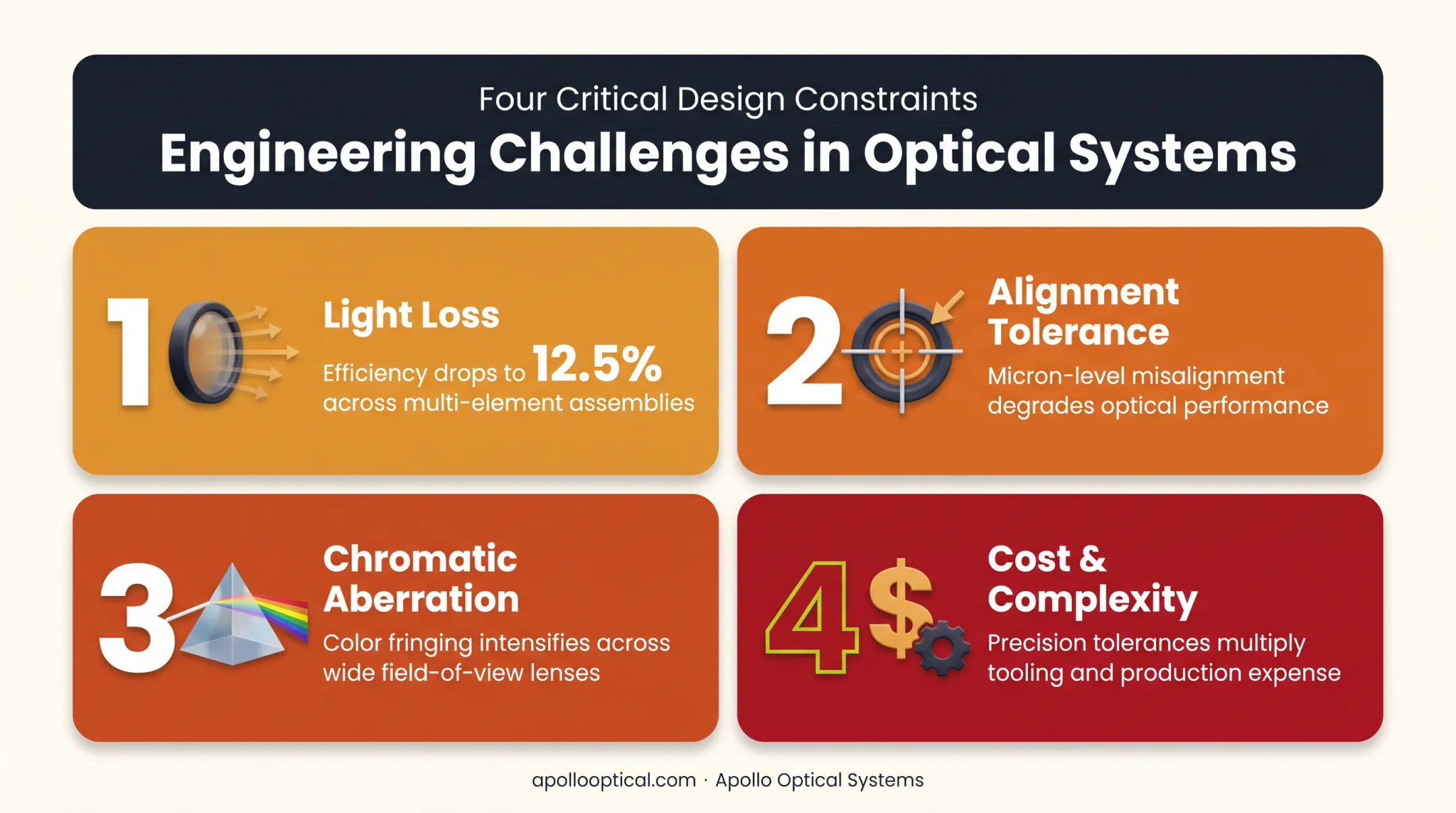

1. Light loss. Every reflection and polarization filter step drops transmitted light. One 2025 Optica study measured roughly 12.5% optical efficiency for unpolarized input in a pancake system, meaning displays need to push considerably more brightness to compensate. That's a real power and thermal cost, not a footnote.
2. Alignment tolerance. Optical axis alignment has to be controlled to fractions of a degree. Miss that tolerance and you get contrast loss, uneven brightness, or visible ghosting — exactly the artifacts pancake designs are supposed to eliminate.
3. Chromatic aberration across a wide field of view. Correcting color fringing at 100+ degrees FOV usually requires multiple lens elements working together, not a single simple surface.
4. Cost and complexity. Precision lamination, specialized coatings, and multi-element bonding push manufacturing cost well above simpler Fresnel assemblies.
As designs push toward the industry's current targets (sub-30mm modules with fields of view exceeding 100 degrees), pancake optics increasingly lean on freeform or aspheric-hybrid surfaces rather than simple flat-stack geometry. That raises tooling and metrology demands even further.
Manufacturing Precision: What It Takes to Produce Pancake Lenses at Scale
Pancake lens performance lives or dies on lamination precision. Polarizing films and quarter-wave plates have to bond onto curved surfaces with micron-level accuracy. A flat film that wrinkles or traps air on a curved mold ruins the optical path. Key process controls that matter:
- Optical axis tolerance — even small misalignment compounds across multiple reflections
- Surface shape accuracy — deviations distort the fold path unevenly across the lens
- Vacuum lamination — controls air entrapment and wrinkling during curved bonding

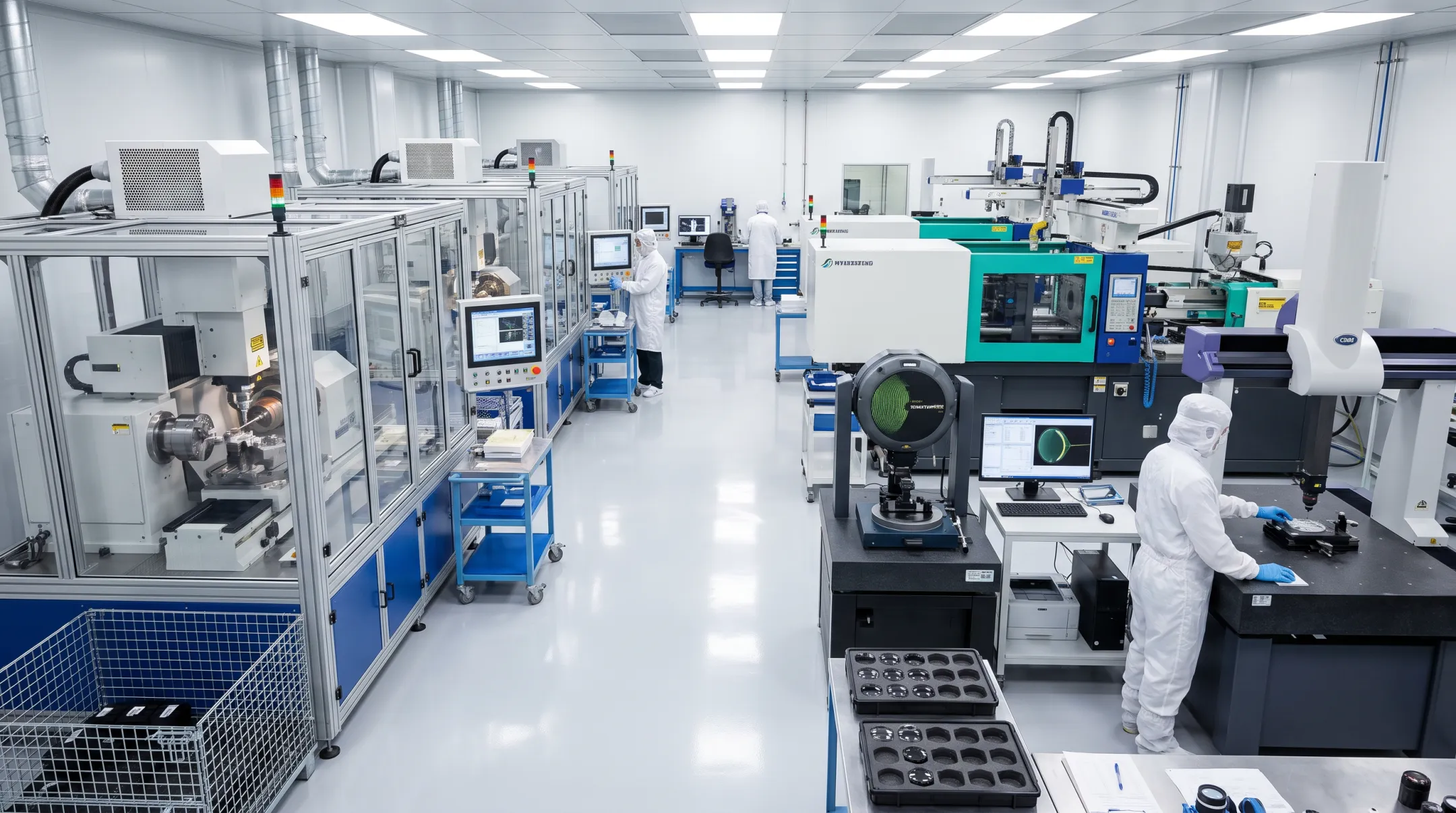

- Low-modulus adhesives — prevent stress-induced distortion as materials cure and settle This is the kind of tight-tolerance work polymer optics manufacturers specialize in. Apollo Optical Systems, a Rochester, NY-based precision polymer optics manufacturer since 2002, runs single-point diamond turning on Innolite and Precitech Nanoform machines. Those systems produce curved geometries (spherical, aspheric, Fresnel, freeform) from 1 mm to 300 mm in diameter. Custom diamond tools cut radii as small as 1.5 microns. On the molding side, Apollo's precision polymer injection molding holds radius-of-curvature tolerances around ±1%. In-house metrology includes:
- Zeiss CMM systems
- Fisba and Zygo interferometers
- Strainoptics polarimeter for retardation on polarization-sensitive components That last tool matters for pancake-adjacent work: retardance drift is one of the quieter failure modes in folded-path optics. For OEMs, the practical takeaway is this: moving a pancake lens design from prototype to volume production means finding a manufacturing partner with fabrication, molding, assembly, and metrology under one roof. Apollo's 21,000 sq. ft. facility supports that range, from one-off prototypes to production scaling into hundreds of thousands of assemblies per month. Consistency at that volume, not just capability on a single unit, is what determines whether a pancake design actually ships.
The Future of Pancake Lens Technology
Pancake optics keep evolving as headsets chase thinner profiles and wider fields of view. Several development paths are worth tracking:
- Nanoscale precision bonding for freeform surfaces, pushing beyond current curved-lamination limits
- Flexible or stretchable polarizer materials designed to reduce wrinkling defects during curved lamination
- Metalenses — a 2023 doublet-metalens prototype hit a 60-degree FOV at a 35.7mm optical track, shorter than a comparable 43mm refractive triplet; aperture size and fabrication scale-up remain open problems
- Liquid crystal lenses offering tunable focal power, potentially addressing the vergence-accommodation conflict alongside or instead of static pancake stacks
None of these are ready to replace pancake designs outright. As headsets push toward sub-30mm thickness and fields of view beyond 150 degrees, hybrid stacks that fold freeform or metalens elements into pancake architectures are the more likely path.
Frequently Asked Questions
What type of lens is used in VR?
Most modern VR headsets use Fresnel, aspheric, or pancake lenses. Pancake lenses are increasingly favored in slim, premium headsets because their folded-path design allows a much shallower optical module.
What does VR mean in lenses?
"VR lens" simply refers to any near-eye optical lens that converts a close, magnified display image into a comfortable, properly focused virtual image for the eye. It's not a specific lens type on its own.
Why do pancake lenses reduce headset weight and size so much?
The folded optical path shortens the physical distance needed between display and lens. That cuts both the material volume required and the overall housing depth.
Are pancake lenses worse for image brightness?
Yes. Multiple internal reflections and polarization filtering reduce light transmission, sometimes to as little as 12.5% for unpolarized input. That typically requires brighter displays to compensate.
Can pancake lenses be manufactured at high volume?
Yes, with precision lamination and quality-controlled coating and assembly lines. Tolerances are considerably tighter than Fresnel lens manufacturing, so process control matters more.
What is the difference between pancake and Fresnel lenses?
Fresnel lenses are bulkier and prone to glare or "god rays," but they transmit more light and cost less to produce. Pancake lenses are thinner and offer better contrast, but they're dimmer and more complex to manufacture.
