Many optical teams struggle with a specific problem: shifting a mirror off-axis solves obstruction but breaks the symmetry that traditional aspheres depend on. The result is field-dependent coma and astigmatism that standard optics simply can't correct.
This guide covers what off-axis design actually means, why freeform surfaces became essential, where the real design and manufacturing challenges live, and what to look for in a fabrication partner.
Key Takeaways
- Off-axis geometry removes central obstruction, enabling higher throughput in a smaller footprint
- Freeform surfaces correct coma and astigmatism from tilt and decenter that aspheres cannot fully address
- Tight coordination across optical design, diamond turning, and metrology determines build success
- Highest value shows up in defense, medical imaging, and aerospace remote sensing payloads
What Does "Off-Axis" Mean in Optical Design?
An off-axis optical element is a mirror or surface that's decentered or tilted relative to a parent optical axis, so the reflected or transmitted beam clears other components in the path.
Think of it as moving the beam out of its own way. In a standard on-axis reflective telescope, the detector or secondary mirror sits directly in the light path, blocking part of the aperture. Off-axis configurations sidestep this entirely by using only a portion of a larger, symmetric parent shape.
Off-Axis Parabolic (OAP) Mirrors Explained

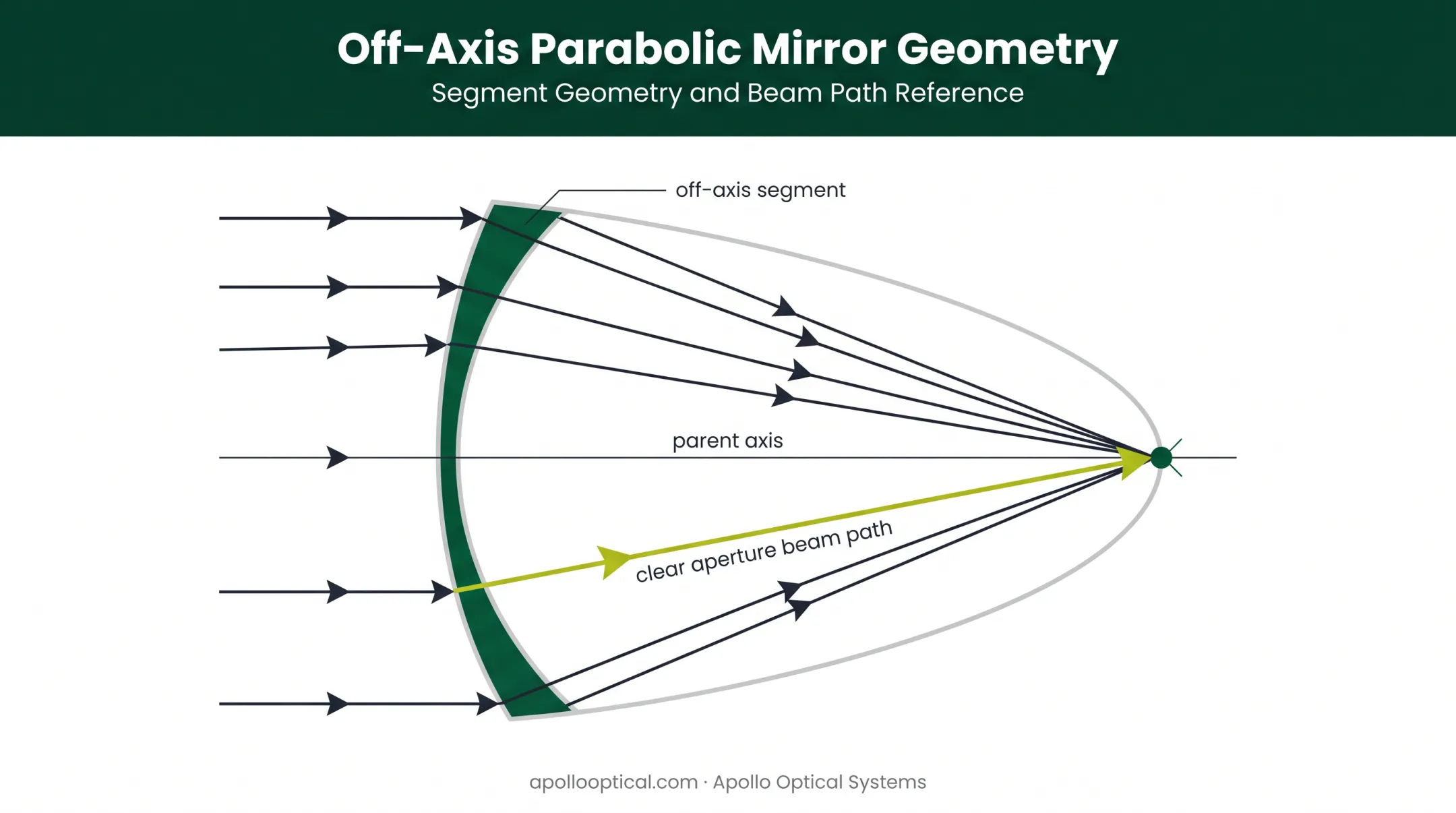

An off-axis parabolic mirror is a cutout section taken from a much larger parent parabola. The parent shape still governs the focusing behavior. Removing an off-center section just shifts where the usable aperture sits relative to the optical axis Ansys explains this coordinate relationship in detail.
Because the segment retains the parent parabola's curvature, it still:
- Collimates light from a point source at the focus
- Focuses collimated light to a point, without obstruction
Common uses:
- Laser beam collimation and beam expansion
- Telescope and spectrometer front ends
- Spectroscopy setups requiring clean, unobstructed beam delivery
One caution: an OAP isn't automatically a general-purpose freeform. It's a prescribed conic segment. Get the coordinate reference wrong during alignment, and you can introduce noticeable defocus or coma. As Edmund Optics notes, even small angular displacement of the incident beam produces coma in these systems.
Why Off-Axis Systems Require Freeform Optics
Decentering or tilting a rotationally symmetric mirror breaks that symmetry. The aberrations that result—mainly coma and astigmatism—vary by field position and by azimuth angle. A single radial correction term, the kind that works for on-axis aspheres, cannot correct them.
Freeform surfaces fill that gap. They're defined without an axis of rotational invariance, giving designers extra degrees of freedom to correct aberrations that change across the field rather than staying centered and symmetric.
Two common freeform surface types:
- XY polynomials: Cartesian-based and well suited to numerically controlled manufacturing
- Zernike polynomials: orthogonal over a circular pupil; useful for fitting specific aberration content during optimization
Real Performance Gains from Freeform Correction

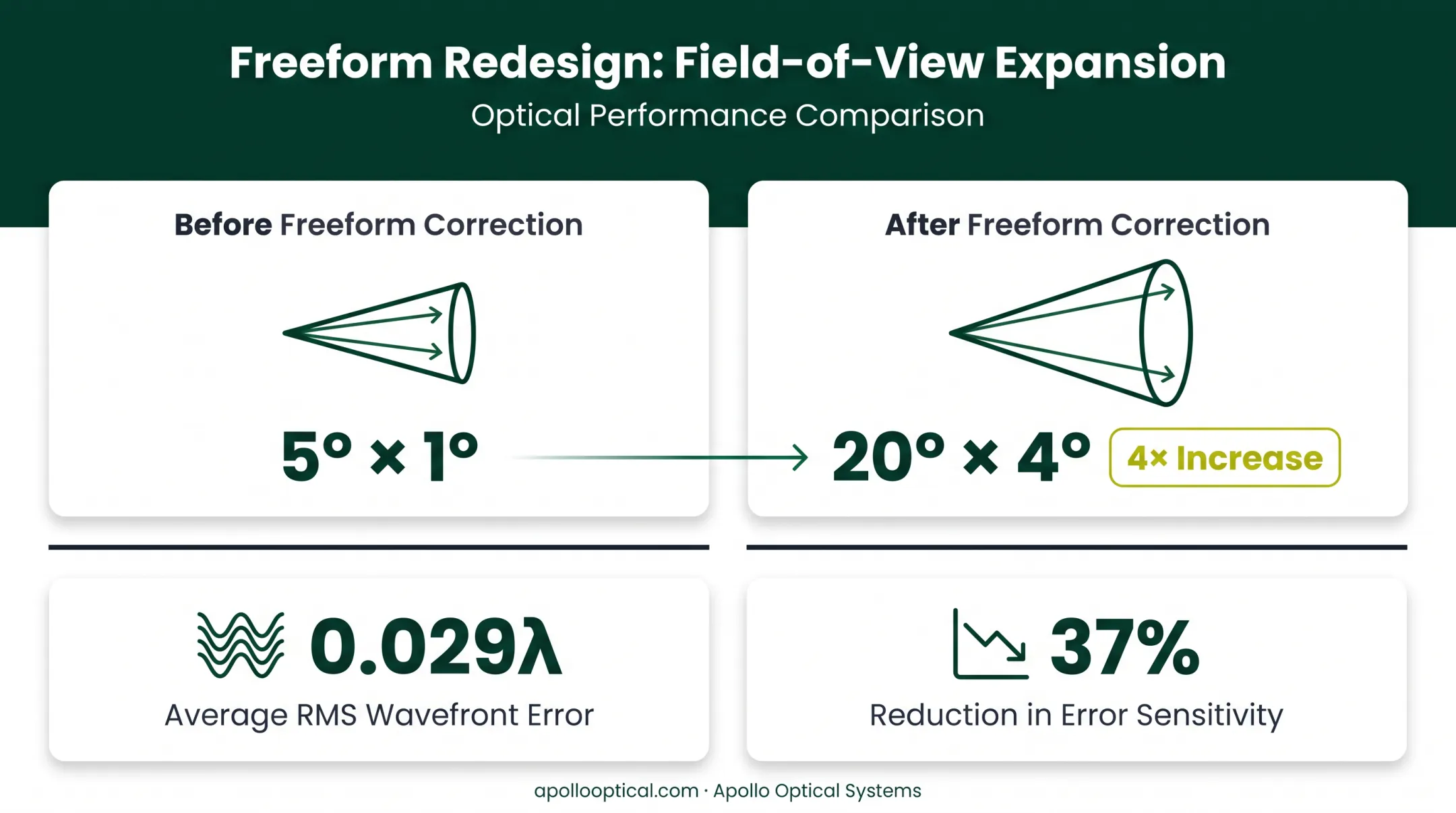

A 2024 freeform off-axis three-mirror anastigmat design expanded field of view from 5° × 1° to 20° × 4°—a fourfold gain—while holding 0.029λ average RMS wavefront error and cutting error sensitivity by over 37%, per a 2024 Photonics study.
Freeform correction also shrinks packaging. Multi-mirror off-axis systems (three- and four-mirror architectures) fold optical paths into smaller envelopes than equivalent on-axis designs, which matters for space and defense payloads with strict mass budgets.
Nodal Aberration Theory Guides the Optimization
Nodal aberration theory (NAT), extended through sixth order for systems without rotational symmetry, gives designers a framework for predicting where field aberrations peak before full optimization.
Two tools set a strong starting point instead of a blind numerical search:
- Nodal aberration theory: maps where aberrations peak across the field in non-rotationally symmetric systems
- Fermat's principle: derives surface coefficients order by order from stationary optical path length
Core Design Challenges in Off-Axis Freeform Systems
Freeform optimization works best from a physically grounded starting point. Vector aberration theory and Fermat-based construction give the optimizer that foundation and cut the risk of settling into a poor local minimum.
Gradual field-of-view expansion is a common way to keep that process stable. Designers start at a narrow field, let the algorithm converge, then widen the field in steps and re-optimize each time. Error sensitivity stays manageable instead of spiking all at once.
Alignment Sensitivity Is Tighter Here

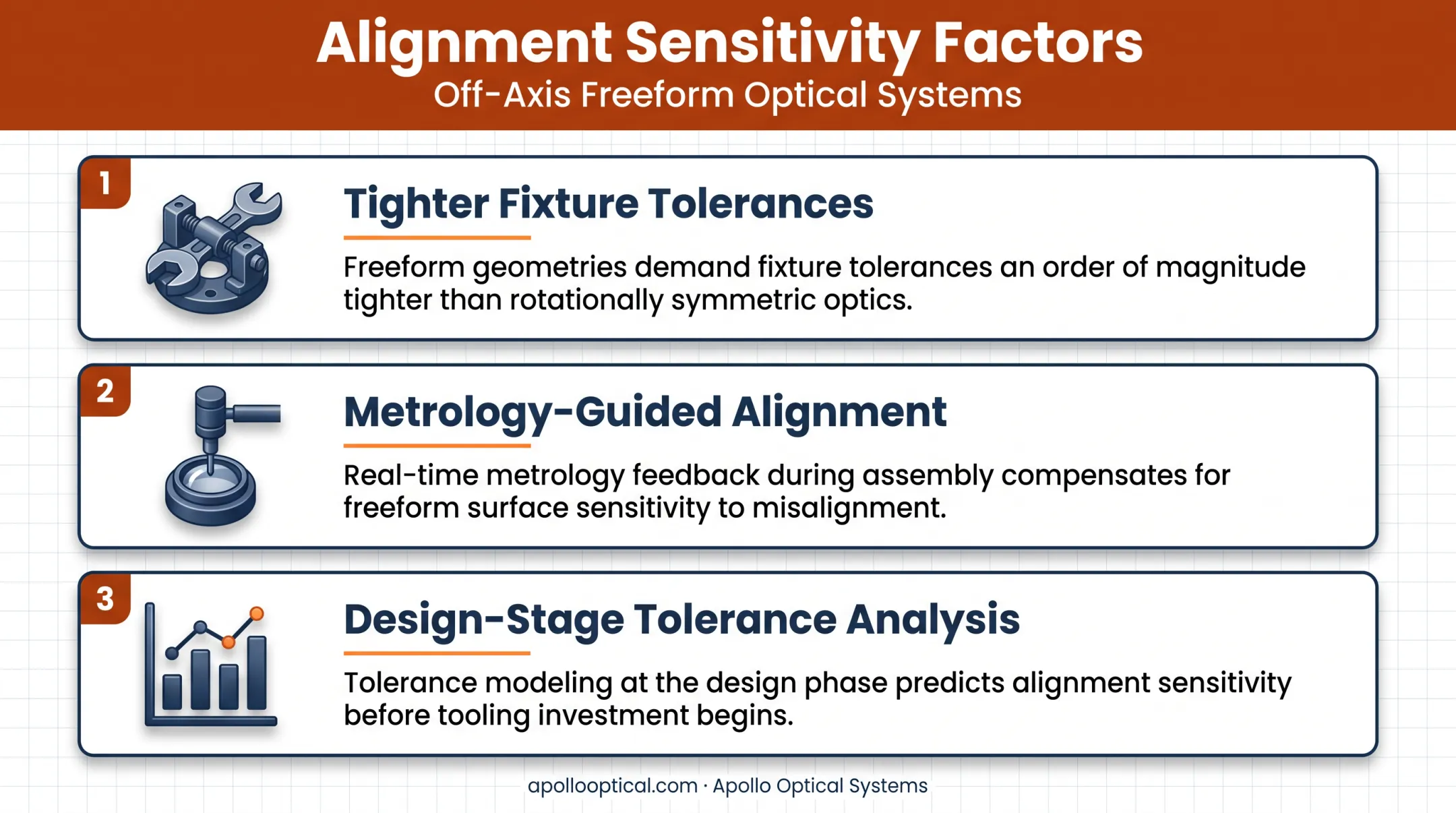

Off-axis systems lose the self-centering symmetry that makes on-axis alignment forgiving. Small tilts or decenters in assembly translate directly into field-dependent image degradation. That means:
- Tighter fixture and mounting tolerances than equivalent on-axis designs
- Heavier reliance on metrology-guided alignment during assembly
- More design-stage tolerance analysis to identify the most sensitive surfaces
Cold-Stop Efficiency for IR Systems
For cooled infrared detectors, stop matching is not optional.
NASA's EXCLAIM instrument design used a 1.7 K cold stop with blackened baffling to keep edge illumination below -40 dB on the primary mirror, limiting thermal spill onto warmer surfaces, as detailed in the EXCLAIM optical design report. A separate 1.8 K aperture stop truncated stray beams below -15 dB.
Off-axis freeform geometries make stop matching harder because the pupil is not centered the way it is in symmetric systems. Model that behavior early rather than trying to correct it after the fact.
Manufacturing and Metrology Considerations
Freeform surfaces demand fabrication methods well beyond standard spherical or aspheric processes. Single-point diamond turning (SPDT) can cut optical-finish surfaces directly into non-ferrous metals and select polymers, but complex freeforms often exceed simple two-axis turning and require multi-axis or fly-cutting toolpaths.
Verification is just as demanding. Freeform-specific metrology, such as custom-null interferometry, profilometry, or adaptive testing methods, is required because a standard null test loses accuracy fast on a surface that isn't yet close to its target shape.
How Apollo Approaches Freeform Fabrication

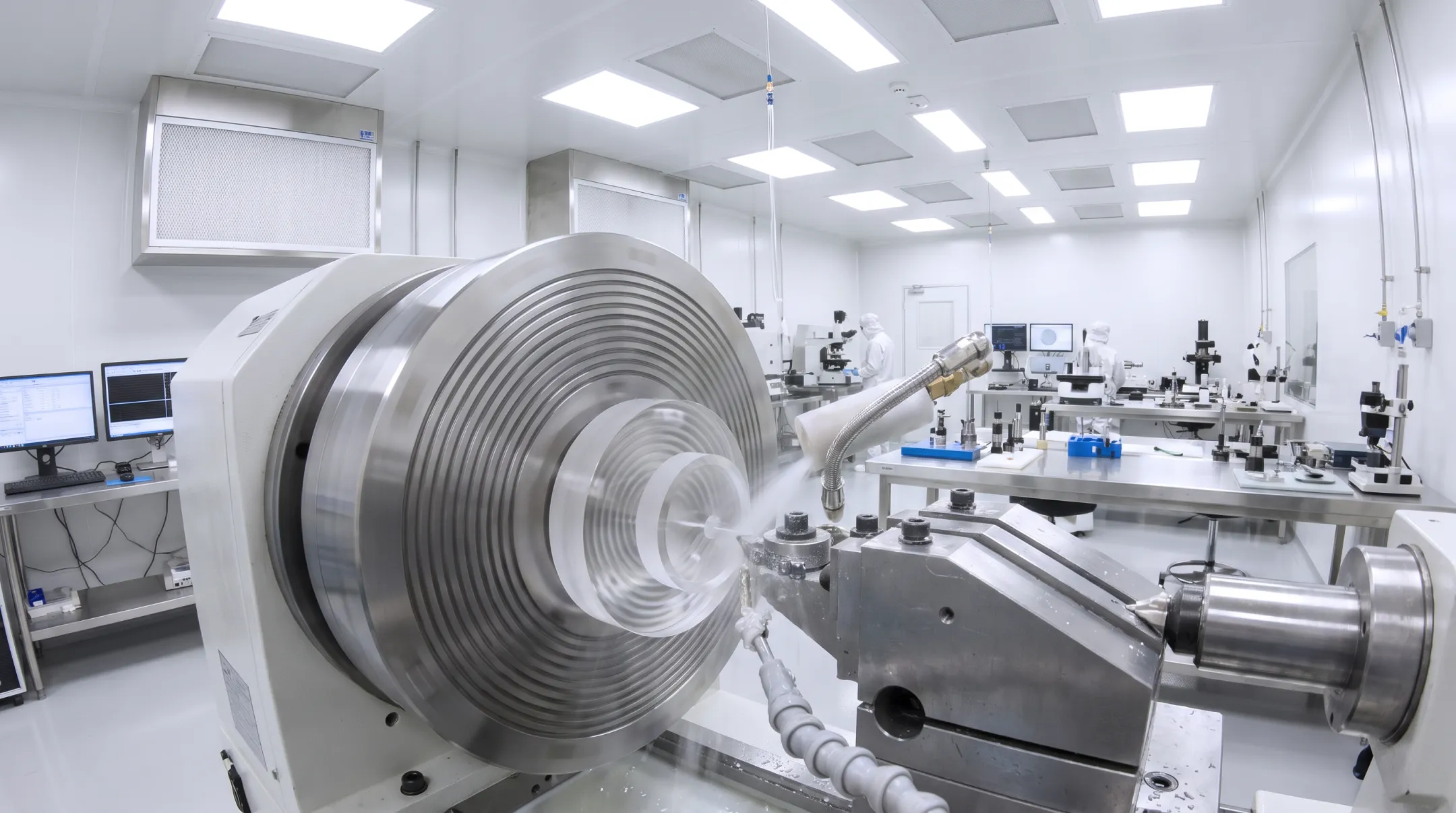

Apollo Optical Systems runs three SPDT lathes: one Innolite IL300 and two Precitech Nanoform 200 systems, with the Nanoform 200s specifically used for asymmetrical component manufacturing. These machines handle parts from 1 mm to 300 mm in diameter across conic, aspheric, toroidal, diffractive, and Fresnel geometries, using proprietary diamond tools with radii as small as 1.5 microns.
Typical results:
| Material | Surface Finish | Surface Figure |
|---|---|---|
| Polymers | 60–80 Å RMS | Better than ½-wave PV |
| Metals | 30–50 Å RMS | Better than ¼-wave PV |
For verification, Apollo pairs interferometry (Fisba Optik and Zygo PTI systems) with a Form TalySurf contact profiler for surface form measurement. Tolerance analysis and design-for-manufacture review are built into the front end of every program.
Applications of Off-Axis Freeform Optical Systems
Off-axis freeform systems show up wherever compact, unobscured performance is non-negotiable:
- Defense and tactical systems — Compact optics for targeting and imaging where every cubic inch and gram counts. SPIE research on optical countermeasures flags freeform windows and aberration-compensating optics for next-gen missile-warning systems with wide fields of view.
- Medical and life sciences imaging — Off-axis geometries support endoscopic and diagnostic optics that need aberration-free imaging in a tight envelope. Apollo Optical Systems covers this space with injection molding and SPDT, including tooling for a top-five global women's health company.
- Aerospace and remote sensing — Freeform correction delivers measurable packaging gains. A NASA-documented CubeSat concept using freeform mirrors reached a 120° full field of view in a 96 mm × 15 mm × 95 mm package—impossible with symmetric on-axis optics. That design still showed 23% barrel distortion at 60°, so freeform gains need active trade-off management.
Frequently Asked Questions
What does "off-axis" mean?
An optical element is off-axis when it is decentered or tilted relative to its parent optical axis, so the beam avoids being blocked by other components. This is a geometric positioning strategy, not a surface shape itself.
How does an off-axis parabolic mirror work?
An off-axis parabolic mirror is a cutout section of a larger parent parabola. The segment retains the parent's focusing properties, so it collimates or focuses light while keeping the beam path clear of obstruction.
Why can't traditional aspheric lenses replace freeform optics in off-axis systems?
Aspheres are still rotationally symmetric about an axis. Off-axis tilt/decenter creates field-dependent, non-symmetric aberrations that only a freeform surface has the degrees of freedom to correct.
How difficult is it to manufacture freeform optics?
Freeform optics require specialized single-point diamond turning, often multi-axis toolpaths, plus freeform-specific metrology like custom-null interferometry. Standard spherical or aspheric processes and tests aren't sufficient.
What industries benefit most from off-axis freeform optical systems?
Defense and tactical imaging, medical and life sciences devices, and aerospace/remote sensing all benefit — each needs compact, unobscured optics with tightly controlled aberrations.
How do designers reduce alignment sensitivity in off-axis systems?
Through tolerance-aware design, careful fixture engineering, and metrology-guided assembly. Off-axis systems lack the self-centering symmetry of on-axis designs, so alignment tolerances must be tighter from the start.
Off-axis freeform design demands equal strength in optical theory, precision fabrication, and metrology. If your program needs compact, unobscured optics with tightly controlled aberrations, Apollo Optical Systems brings SPDT, injection molding, and in-house metrology together under one roof in Rochester, NY.
